328 ABS Page 126 ELECTRICAL BOARDS
Product Description
328 ABS Page 126 ELECTRICAL BOARDS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

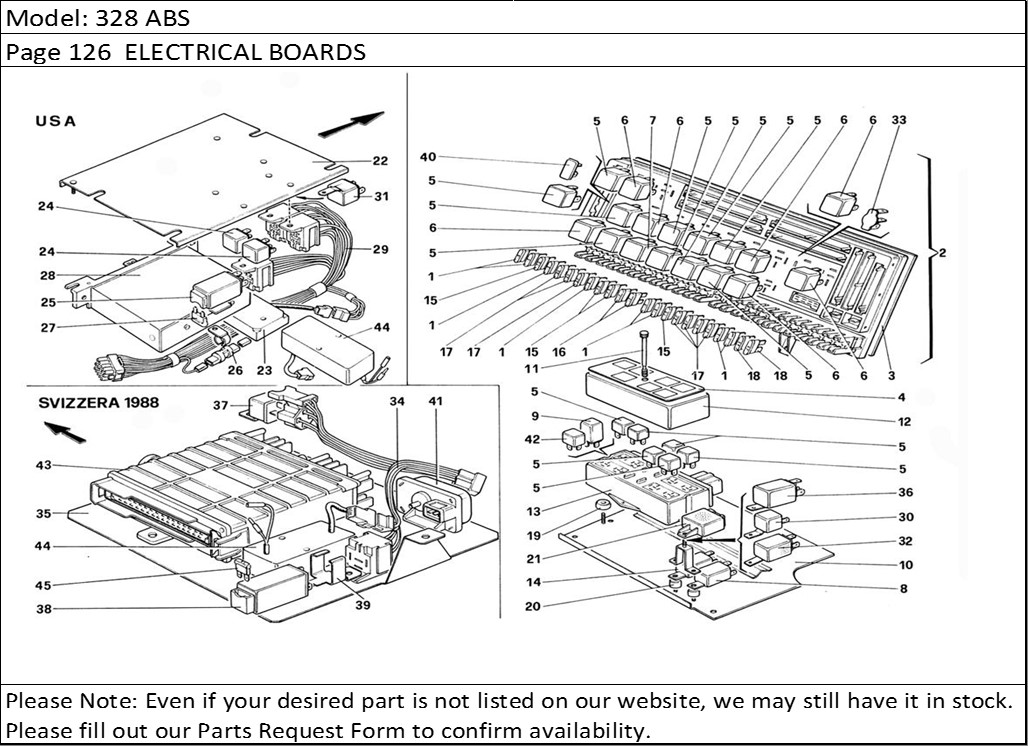

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 125242 | 15AfnseRHD | 7 |
| 1 | 125242 | 15AfuseLHD | 8 |
| 2 | 62344200 | Electrical board complete RHDFrom car 68197 | 1 |
| 2 | 61804200 | Electrical board complete LHDNot for C8 (For RHD until car 68195) | 1 |
| 3 | 116055 | Rear cover | 1 |
| 4 | 61804500 | Plate USA and J MY 88 - AUS | 1 |
| 4 | 62567300 | Plate USA and J MY 89 | 1 |
| 5 | 40130007 | Relay C8 | 15 |
| 5 | 40130007 | Relay - Not for C8 | 16 |
| 6 | 40130106 | Relay C8 | 6 |
| 6 | 40130106 | Relay- Not for C8 | 7 |
| 7 | 40283905 | Relay | 1 |
| 8 | 61827800 | Timer for interior lights | 1 |
| 9 | 61651800 | Flasher for direction lights - USUnderneath the dash board | 1 |
| 9 | 61814700 | Flasher for direction lights - USBehind the footrest | 1 |
| 9 | 61048000 | Flasher for direction lightsFrom car 64127 - Not for US - Underneath the dashboard | 1 |
| 9 | 61111200 | Flascher for direction lights - Until car 64125 - Not for US - Behind the footrest | 1 |
| 10 | 61831400 | Passenger footrest GTB - RHD | 1 |
| 10 | 61848100 | Passenger footrest GTS - RHD | 1 |
| 10 | 61820100 | Passenger footrest GTB - LHD | 1 |
| 10 | 61821800 | Passenger footrest GTS - LHD | 1 |
| 11 | 116138 | Screw | 1 |
| 12 | 127081 | Cover | 1 |
| 13 | 61804400 | Secondary electric board withitems 5-9-4-11-12 | 1 |
| 14 | 61827900 | Windshield wiper relay | 1 |
| 15 | 125240 | 7, 5 A fuse | 4 |
| 16 | 125241 | 10 A fuse | 2 |
| 17 | 125243 | 20 A fuse - For RHD quantity 8 | 7 |
| 18 | 126031 | 25 A fuse | 2 |
| 19 | 61876200 | Spacer for RHD | 2 |
| 19 | 61825600 | Spacer for LHD | 2 |
| 20 | 61876200 | Spacer for RHD | 2 |
| 21 | 61830700 | Seat belt control unitFor US - SA - J - Not for A87 | 1 |
| 22 | 61809200 | Plate for ECUUS - J - SA - AUS - Until car 76529 | 1 |
| 22 | 62356300 | Plate for ECU C7For US - SA - J - AUS from car 76529 | 1 |
| 23 | 61402500 | Cataiityc computer control unitUS - J until car 76515 | 1 |
| 24 | 40130106 | Relay for oxygen sensor - US - J | 2 |
| 25 | 61766200 | Relay for oxygen sensor - US - J | 1 |
| 26 | 121776 | Diode for oxygen sensor and controlMicroswitch for injection ECU - US | 2 |
| 27 | 125241 | Fuse 10 A US | 1 |
| 28 | 127479 | Electronic control unit US | 1 |
| 29 | 61864900 | Cables US - J | 1 |
| 30 | 61914500 | Control relay for brake warning light AUS | 1 |
| 31 | 62347600 | Injector control relayC7 until car | 1 |
| 31 | 62374200 | Injector control relay - Not for C8C7 from car | 1 |
| 32 | 131486 | Buzzer for lower oil pressure and exhaust hight temperature C7 | 1 |
| 33 | 115459 | Bridge GD - Only from car 68197 | 1 |
| 34 | 62423800 | Cabes C8 | 1 |
| 35 | 62424000 | Plate C8 | 1 |
| 36 | 62370600 | Tachimetric relay for fuel pump C8 | 1 |
| 37 | 62424100 | Relay for cut-off valve C8 | 1 |
| 38 | 61766200 | Relay protection electrical system C8 | 1 |
| 39 | 62349700 | Bracket C8 | 1 |
| 40 | 61936600 | Bridge C8 | 1 |
| 41 | 134808 | Barometric valve C8 | 1 |
| 42 | 62567200 | Control relay for ABS systemUSA and J MY 89 | 1 |
| 43 | 134153 | Electronic control unit C8 | 1 |
| 44 | 62347000 | Catalytic converter control unitC7 - C8 - For J and US from car 76529 | 1 |
| 45 | 125241 | Fuse 10 A C8 | 1 |
