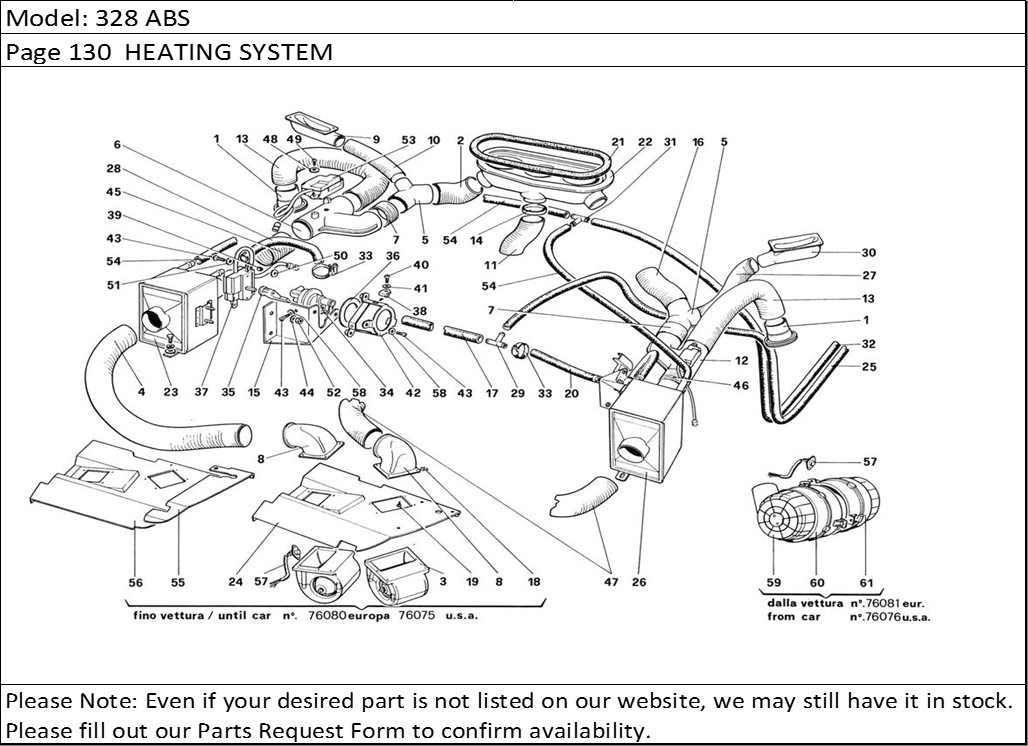

328 ABS Page 130 HEATING SYSTEM
Product Description
328 ABS Page 130 HEATING SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60054400 | Under air ouiiet | 2 |
| 2 | 61790900 | Air duct | 1 |
| 3 | 61738700 | Electro fan until exhaustion | 2 |
| 4 | 61790200 | R.H. air duct | 1 |
| 5 | 60153608 | 3 way fitting | 2 |
| 6 | 61738900 | R.H. swithc | 1 |
| 7 | 61790800 | Air duct | 2 |
| 8 | 61770100 | Union | 2 |
| 9 | 60055407 | R.H. air outlet for LHD | 1 |
| 9 | 60198405 | R.H. air outlet for RHD | 1 |
| 10 | 61791100 | Air duct | 1 |
| 11 | 61791300 | Air conditioning duct | 1 |
| 12 | 61739000 | L.H. switch | 1 |
| 13 | 61790600 | Air duct | 2 |
| 14 | 20143202 | Plug | 1 |
| 15 | 126323 | Heater valve braket | 2 |
| 16 | 61791000 | Air duct | 1 |
| 17 | 61853100 | (N) Hose from 3 way to | 1 |
| 17 | 127173 | Hose from 3 way to R.H. water valve - LHD | 1 |
| 17 | 61914300 | (V) Hose from 3 way to | 1 |
| 18 | 60696300 | Spring | 8 |
| 19 | 15644101 | Screw | 8 |
| 20 | 121173 | (V) Hose from 3 way to L.H water valve - RHD | 1 |
| 20 | 116680 | (N) House from 3 way to L.H water valve RHD | 1 |
| 20 | 61914300 | Hose from 3 way to L.H. water valve - LHD | 1 |
| 21 | 50091503 | Gasket | 1 |
| 22 | 20142709 | Air diffusor | 1 |
| 23 | 61761400 | R.H. heater | 1 |
| 24 | 61770000 | Support for electro fanNot for US - J - SA (Cars without electro fan filter) | 1 |
| 24 | 61937000 | Support for electro fanNot for US - J - SA - Can replace 61770000 | 1 |
| 25 | 127172 | (V) Hose motor - 3 way of delivery LHD | 1 |
| 25 | 62492600 | (N) Hose motor - 3 way ot delivery LHD | 1 |
| 25 | 61957100 | Hose motor - 3 way of delivery RHD | 1 |
| 26 | 61761300 | L.H. heater | 1 |
| 27 | 61791200 | Air duct | 1 |
| 28 | 127168 | Hose tap - heater | 2 |
| 29 | 127295 | 3 way fitting | 1 |
| 30 | 60055407 | L.H. air outlet for RHD | 1 |
| 30 | 60055506 | L.H. air outlet for LHD | 1 |
| 31 | 104303 | 3 way of backflow | 1 |
| 32 | 109755 | Hose 3 way - motor | 1 |
| 33 | 12179590 | Clamp | 16 |
| 34 | 126324 | Heater valve | 2 |
| 35 | 126322 | Coupling tap - motor | 2 |
| 36 | 126326 | Gasket | 2 |
| 37 | 126325 | Control motor for heater valve | 2 |
| 38 | 61325200 | Clip | 4 |
| 39 | 126995 | Bushing | 4 |
| 40 | 15642501 | Screw | 4 |
| 41 | 14498501 | Washer | 4 |
| 42 | 126299 | Heater valve braket | 2 |
| 43 | 13273911 | Screw | 10 |
| 44 | 106850 | Washer | 4 |
| 45 | 61790500 | R.H. air duct | 1 |
| 46 | 61790500 | L.H. air duct | 1 |
| 47 | 61790300 | L.H. air duct | 1 |
| 48 | 14498501 | Washer | 4 |
| 49 | 15901508 | Screw | 4 |
| 50 | 10519301 | Washer | 4 |
| 51 | 12601179 | Washer | 4 |
| 52 | 15896211 | Nut | 4 |
| 53 | 61790000 | Motor | 2 |
| 54 | 122225 | Hose heater - 3 way of backflow | 2 |
| 55 | 61884100 | Addition for plateUS - J - SA | 1 |
| 56 | 61869800 | Plate for electro fans US - J - SA | 1 |
| 57 | 126854 | Power transistor | 2 |
| 58 | 106849 | Washer | 6 |
| 59 | 62438900 | Filter for electro fan | 2 |
| 60 | 62438700 | Electro fan with filter | 1 |
| 61 | 62438800 | Electro fan with filter | 1 |
