328 ABS Page 131 AIR CONDITIONING SYSTEM
Product Description
328 ABS Page 131 AIR CONDITIONING SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

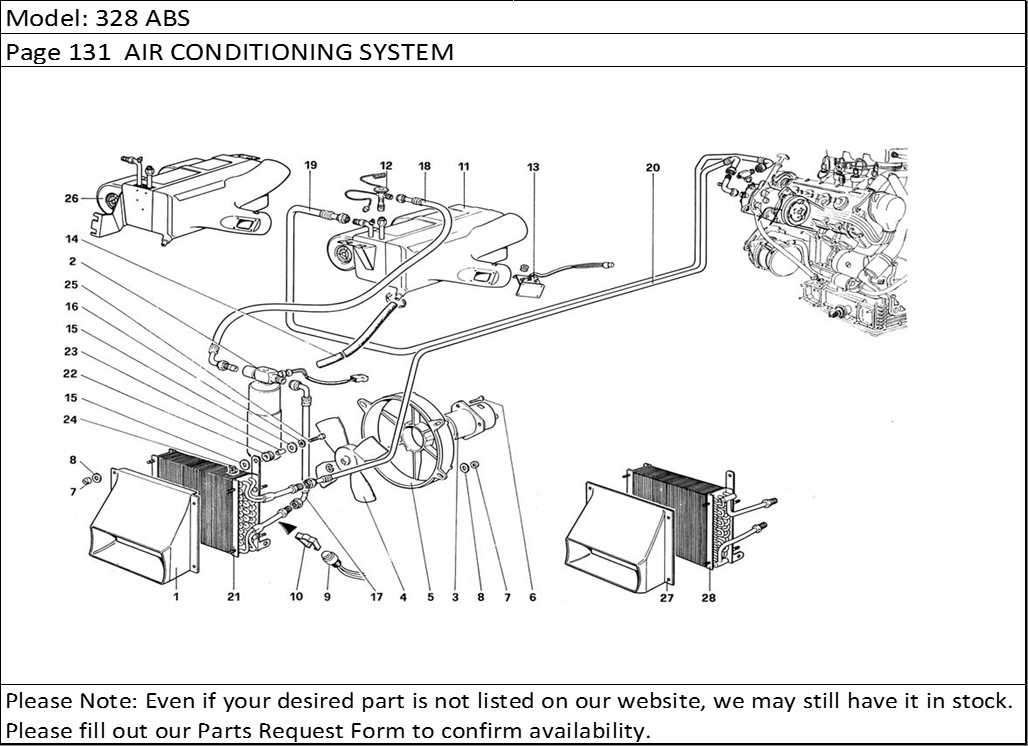

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61761000 | Air inlet condenserUntil car no. 68461 | 1 |
| 2 | 114730 | Dryer filter, completePN. 129101 in alternative (Until exhausted) | 1 |
| 2 | 61989500 | Dryer filter, completeAfter exhaustion PN. 114730-129101 | 1 |
| 3 | 123136 | Electro-fan motor | 1 |
| 3 | 129102 | PressostatFor dryer filter 129101 and 61989500 | 1 |
| 4 | 62441100 | Fan - From car 68463 | 1 |
| 4 | 122953 | Fan - Until car 68461 | 1 |
| 5 | 62441200 | Conveyor - From car 68463 | 1 |
| 5 | 60870300 | Conveyor - Until car 68461 | 1 |
| 6 | 123298 | Screw | 8 |
| 7 | 12574211 | Nut | 8 |
| 8 | 12644401 | Washer | 8 |
| 9 | 61047900 | Bimetallic termoswitch | 1 |
| 10 | 61942400 | Clip | 1 |
| 11 | 61859600 | Evaporator unit RHDUntil car no. 64651 | 1 |
| 11 | 61830500 | Evaporator unit LHDUntil car no. 64651 | 1 |
| 12 | 61742600 | Expansion valve | 1 |
| 13 | 126856 | Power transistor | 1 |
| 14 | 40166506 | Condensate drain pipe | 6 |
| 15 | 12643701 | Washer | 6 |
| 16 | 106850 | Washer | 3 |
| 17 | 61798100 | Hose from condenser to dryer filter | 1 |
| 18 | 114733 | Hose dryer filter-evaporator LHD | 1 |
| 18 | 62565600 | (N) Hose dryer filter-evaporator RHD | 1 |
| 18 | 61914100 | (V) Hose dryer filter-evaporator RHD | 1 |
| 19 | 109868 | Hose evaporator - compressor US | 1 |
| 19 | 61914200 | (V) Hose evaporator-compressor RHDNot for AUS | 1 |
| 19 | 62565700 | (N) Hose evaporator-compressor RHDNot for AUS | 1 |
| 19 | 110964 | Hose evaporator-compressorNot for US -RHD | 1 |
| 19 | 112119 | Hose evaporator-compressor AUS | 1 |
| 20 | 106695 | Hose compressor-condenser | 1 |
| 21 | 61739200 | Condenser - Until car no. 68461 | 1 |
| 22 | 103549 | Bushing | 3 |
| 23 | 103550 | Spacer | 3 |
| 24 | 60659100 | Nut | 3 |
| 25 | 10902521 | Screw | 3 |
| 26 | 61931600 | Evaporator unit LHDFrom car no. 64653 | 1 |
| 26 | 61929300 | Evaporator unit RHDFrom car no. 64653 | 1 |
| 27 | 61975500 | Air inlet for condenserFrom car no. 68463 | 1 |
| 28 | 61952100 | CondenserFrom car no. 68463 | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
