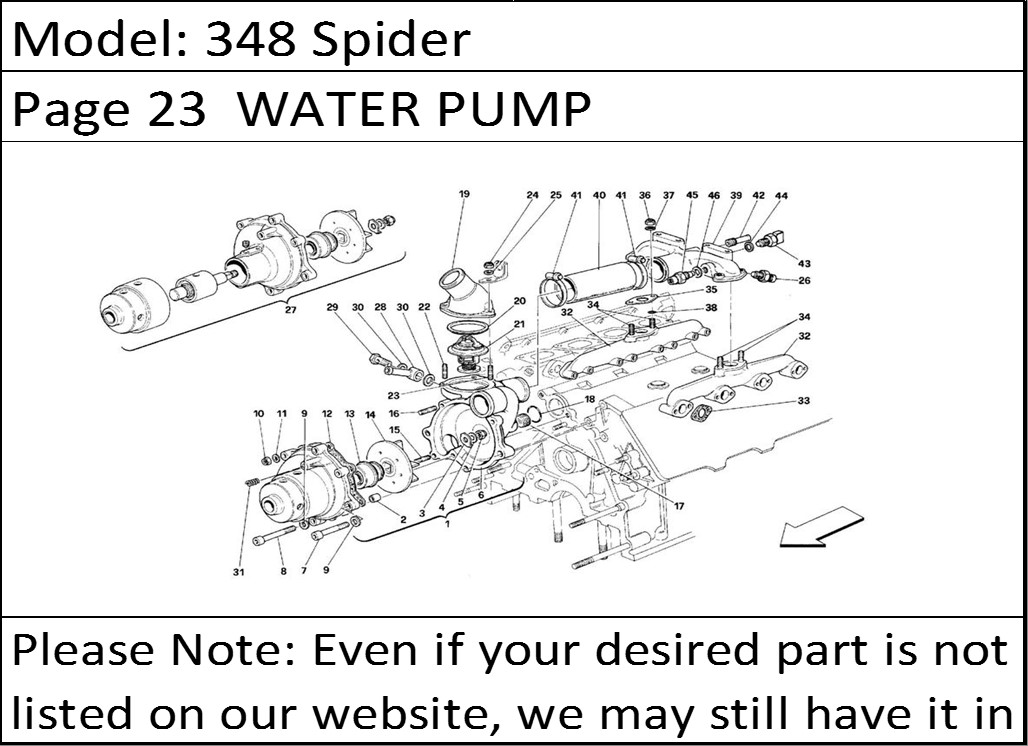

348 Spider Page 23 WATER PUMP
Product Description
348 Spider Page 23 WATER PUMP
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 160473 | COMPLETE WATER PUMP | 1 |
| 2 | 102704 | DOWEL | 2 |
| 3 | 139457 | PLATE | 1 |
| 4 | 10730321 | WASHER | 1 |
| 5 | 100436 | NUT | 1 |
| 6 | 156350 | WATER PUMP BODY WITH STUDS | 1 |
| 7 | 14306921 | SCREW | 2 |
| 8 | 14302221 | SCREW | 2 |
| 9 | 12601374 | WASHER | 4 |
| 10 | 102741 | NUT | 4 |
| 11 | 12639701 | WASHER | 4 |
| 12 | 132979 | GASKET | 1 |
| 13 | 183759 | SEAL RING | 1 |
| 14 | 160456 | WATER PUMP IMPELLER | 1 |
| 15 | 13541124 | STUD | 1 |
| 16 | 13541324 | STUD | 3 |
| 17 | 10268450 | PLUG | 1 |
| 18 | 101044 | O RING GASKET | 1 |
| 19 | 136570 | THERMOSTATIC VALVE COVER | 1 |
| 20 | 105192 | GASKET | 1 |
| 21 | 165473 | THERMOSTAT | 1 |
| 22 | 13541124 | STUD | 2 |
| 23 | 13541224 | STUD | 1 |
| 24 | 102948 | NUT | 3 |
| 25 | 12639701 | WASHER | 3 |
| 26 | 104628 | THERMISTOR | 1 |
| 27 | 143275 | FRONT PART COMPLETE WATER PUMP | 1 |
| 28 | 152416 | UNION | 1 |
| 29 | 152417 | UNION | 1 |
| 30 | 10259960 | GASKET | 2 |
| 31 | 13525470 | THREADED INSERT | 1 |
| 32 | 138852 | WATER MANIFOLD | 2 |
| 33 | 132980 | GASKET | 8 |
| 34 | 13516821 | STUD | 4 |
| 35 | 132981 | GASKET | 2 |
| 36 | 16100821 | NUT | 4 |
| 37 | 11198074 | WASHER | 4 |
| 38 | 103039 | O RING GASKET | 4 |
| 39 | 144246 | WATER OUTLET MANIFOLD CONNECTION DUCT | 1 |
| 40 | 138981 | SLEEVE | 1 |
| 41 | 13000690 | SCREW COLLAR | 2 |
| 42 | 106241 | UNION | 1 |
| 43 | 125769 | TEMPERATURE SENSOR | 2 |
| 44 | 10298460 | GASKET | 2 |
| 45 | 136304 | THERMOMETRIC SWITCH | 1 |
| 46 | 10298460 | GASKET | 1 |
