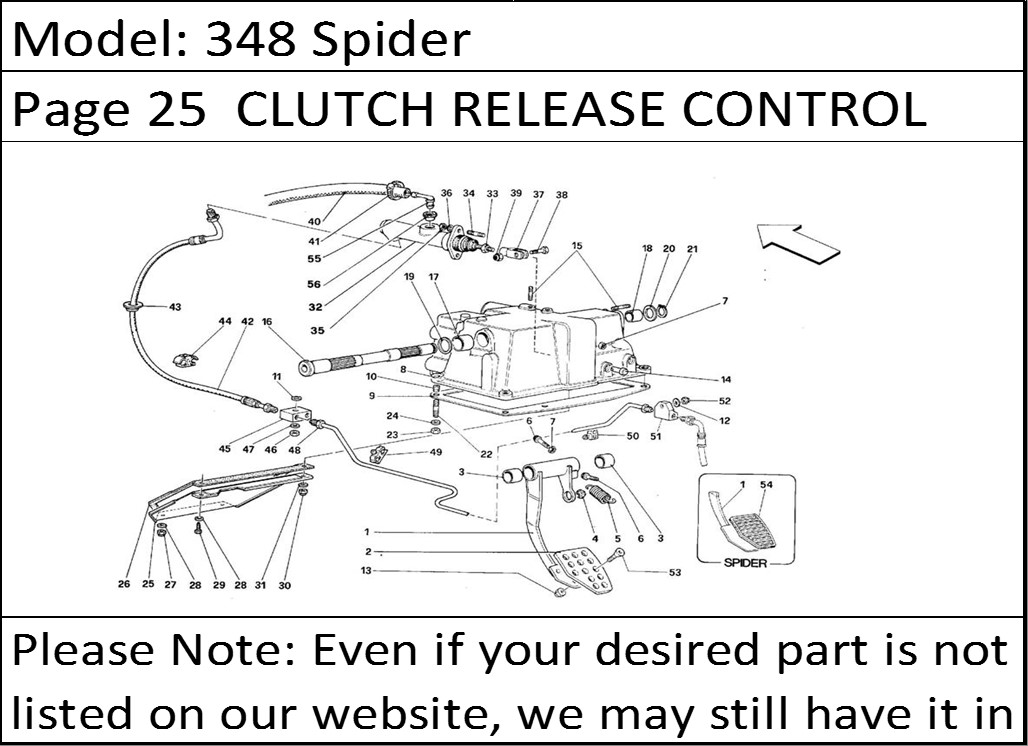

348 Spider Page 25 CLUTCH RELEASE CONTROL NOT FOR RHD
Product Description
348 Spider Page 25 CLUTCH RELEASE CONTROL NOT FOR RHD
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 157268 | CLUTCH PEDAL-Not for Spider- | 1 |
| - | 149293 | CLUTCH PEDAL-Valid for Spider- | 1 |
| 2 | 157273 | PEDAL SLAB-Not for Spider- | 1 |
| 3 | 103163 | BUSHING | 2 |
| 4 | 109407 | JOINT | 1 |
| 5 | 101305 | SPRING | 1 |
| 6 | 144011 | PIN | 2 |
| 7 | 16102314 | NUT | 2 |
| - | 147690 | COMPLETE PEDAL SUPPORT | 1 |
| 8 | ------ | PEDAL SUPPORT-Not as spare part--With complete pedal support- | 1 |
| 9 | 129615 | GASKET | 1 |
| 10 | 13525770 | THREADED INSERT | 2 |
| 11 | 143041 | SPACER | 1 |
| 12 | 12639701 | WASHER | 1 |
| 13 | 15896214 | NUT | 2 |
| 14 | 129612 | PIN | 1 |
| 15 | 11500124 | STUD | 4 |
| 16 | 129613 | PEDALS SUPPORT PIN | 1 |
| 17 | 101314 | BUSHING | 1 |
| 18 | 112153 | BUSHING | 1 |
| 19 | 112125 | SPACER WASHER | 1 |
| 20 | 112127 | WASHER 0.9 mm-Possible fitting- | 1 |
| - | 112128 | WASHER 1.0 mm-Possible fitting- | 1 |
| - | 112129 | WASHER 1.1 mm-Possible fitting- | 1 |
| - | 112130 | WASHER 1.2 mm-Possible fitting- | 1 |
| - | 112131 | WASHER 1.3 mm-Possible fitting- | 1 |
| 21 | 11066676 | SEEGER RING | 1 |
| 22 | 13516821 | STUD | 4 |
| 23 | 16104121 | NUT | 4 |
| 24 | 14499401 | WASHER | 4 |
| 25 | 62877200 | PEDAL SUPPORT PROTECTION | 1 |
| 26 | 62694400 | GASKET | 1 |
| 27 | 102948 | NUT | 2 |
| 28 | 12646601 | WASHER | 3 |
| 29 | 15925601 | SCREW | 1 |
| 30 | 16104121 | NUT | 1 |
| 31 | 14499401 | WASHER | 1 |
| 32 | 175211 | CLUTCH PUMP | 1 |
| 33 | 16102314 | NUT | 1 |
| 34 | 13516821 | STUD | 2 |
| 35 | 133215 | NUT | 2 |
| 36 | 12638524 | WASHER | 2 |
| 37 | 10248271 | FORK | 1 |
| 38 | 130926 | SCREW | 1 |
| 39 | 16104411 | NUT | 1 |
| 40 | 151845 | PIPE | 1 |
| 41 | 157934 | SCREW COLLAR | 2 |
| 42 | 140669 | HOSE | 1 |
| 43 | 105369 | CABLE GROMMET | 1 |
| 44 | 141699 | CLIP | 1 |
| 45 | 139375 | UNION | 1 |
| 46 | 102741 | NUT | 1 |
| 47 | 12639701 | WASHER | 1 |
| 48 | 140666 | INTERMEDIATE TUBE | 1 |
| 49 | 141522 | CLIP | 9 |
| 50 | 141521 | CLIP | 2 |
| 51 | 139471 | UNION | 1 |
| 52 | 102741 | NUT | 1 |
| 53 | 14441324 | SCREW | 2 |
| 54 | 149295 | PEDAL SLAB-Valid for Spider- | 1 |
| 55 | 184497 | PUMP INLET UNION | 1 |
| 56 | 175189 | SEALING RING FOR UNION | 1 |
