348 Spider Page 120 DOORS OPENING CONTROL AND HINGES
Product Description
348 Spider Page 120 DOORS OPENING CONTROL AND HINGES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

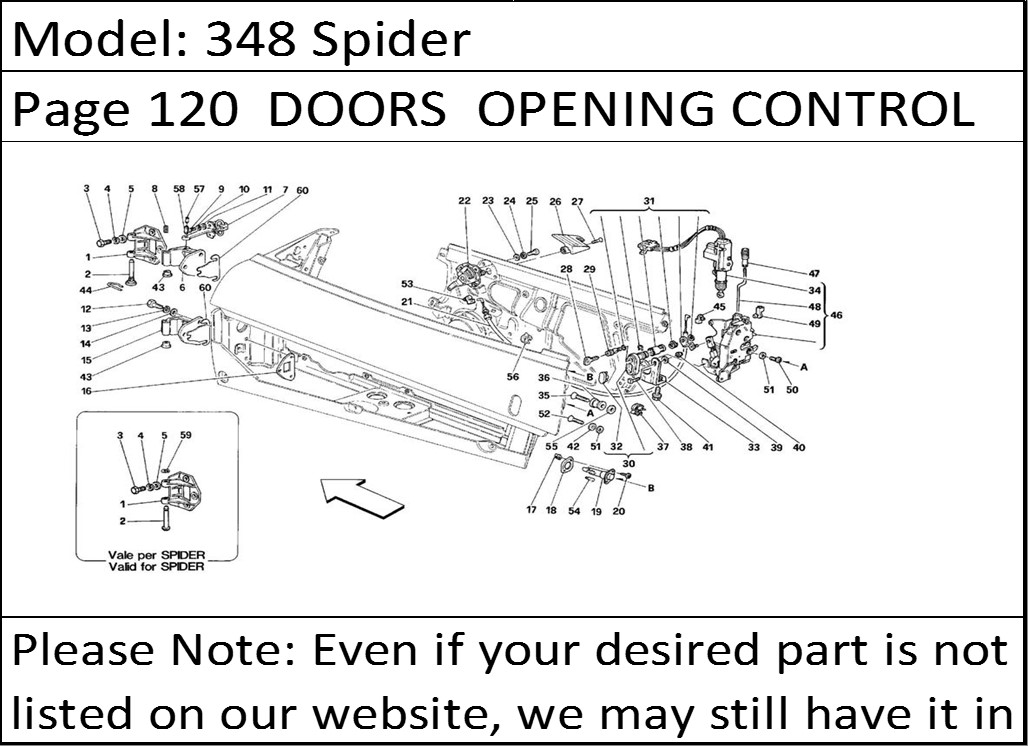

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 64829800 | FIXED HINGE-Not for Spider | 4 |
| 1 | 63396000 | FIXED HINGE-Valid for Spider | 4 |
| 2 | 63345300 | PIN-Valid for Spider | 4 |
| 2 | 62054100 | PIN-Not for Spider | 4 |
| 3 | 16135921 | SCREW | 12 |
| 4 | 127496 | WASHER | 12 |
| 5 | 10519624 | WASHER | 12 |
| 6 | 62063500 | UPPER MOBILE HINGE-Not for Spider-Valid till car Ass. Nr. 15171 | 2 |
| 6 | 63972500 | UPPER MOBILE HINGE-Not for Spider-Valid from car Ass. Nr. 15172 | 2 |
| 6 | 63396100 | UPPER MOBILE HINGE-Valid for Spider-Valid till car Ass. Nr. 15171 | 2 |
| 6 | 63972400 | UPPER MOBILE HINGE-Valid for Spider-Valid from car Ass. Nr. 15172 | 2 |
| 7 | 63942000 | TIE ROD FOR DOOR STOP-Valid from car Ass. Nr. 15172 | 2 |
| 8 | 65859300 | PIN-Valid till car Ass. Nr. 15171 | 2 |
| 9 | 16134321 | SCREW-Valid till car Ass. Nr. 15171 | 4 |
| 9 | 63942300 | SCREW-Valid from car Ass. Nr. 15172 | 4 |
| 10 | 127494 | WASHER-Valid from car Ass. Nr. 15172 | 4 |
| 10 | 127493 | WASHER-Valid till car Ass. Nr. 15171 | 4 |
| 11 | 12644424 | WASHER-Valid from car Ass. Nr. 15172 | 4 |
| 11 | 12638124 | WASHER-Valid till car Ass. Nr. 15171 | 4 |
| 12 | 16135921 | SCREW | 12 |
| 13 | 127496 | WASHER | 12 |
| 14 | 10519624 | WASHER | 12 |
| 15 | 62172600 | LOWER MOBILE HINGE-Not for Spider | 2 |
| 15 | 63396200 | LOWER MOBILE HINGE-Valid for Spider | 2 |
| 16 | 62101100 | PLATE FOR MOVABLE HINGE | 4 |
| 17 | 14115580 | BLOCK | 4 |
| 18 | 140576 | GASKET | 2 |
| 19 | 60788100 | OPENING DOOR LAMP | 2 |
| 20 | 15901470 | SCREW | 4 |
| 21 | 64314100 | DOOR OPENING CABLE | 2 |
| 22 | 62584400 | L.H. INNER DEVICE FOR DOOR OPENING | 1 |
| 22 | 62171600 | R.H. INNER DEVICE FOR DOOR OPENING | 1 |
| 23 | 60711900 | WASHER | 6 |
| 24 | 149951 | WASHER | 6 |
| 25 | 14071911 | SCREW | 6 |
| 26 | 62158500 | L.H. INNER HANDLE FOR DOOR OPENING | 1 |
| 26 | 62158400 | R.H. INNER HANDLE FOR DOOR OPENING | 1 |
| 27 | 13309211 | SCREW | 2 |
| 28 | 95401152 | BLANK KEY | |
| 30 | 62108810 | BODY COMPLETE WITH L.H. DOOR OPENING PUSH BUTTON | 1 |
| 30 | 62108710 | BODY COMPLETE WITH R.H. DOOR OPENING PUSH BUTTON | 1 |
| 31 | 70000655 | KIT FOR L.H. PUSH BUTTON | 1 |
| 31 | 70000654 | KIT FOR R.H. PUSH BUTTON | 1 |
| 32 | 62584200 | DOOR OPENING PUSH BUTTON | 2 |
| 33 | 62171000 | BRACKET FOR PUSH BUTTON FASTENING-Not for USA, CDN, AUS and SA | 2 |
| 33 | 62194500 | BRACKET FOR PUSH BUTTON FASTENING-Valid for USA, CDN, AUS and SA | 2 |
| 34 | 62832300 | DOORS LOCKING/RELEASING ACTUATOR | 1 |
| 35 | 62858700 | SCREW | 2 |
| 36 | 63364100 | STRIKER | 2 |
| 37 | 61130600 | CLIP | 8 |
| 38 | 62171200 | SCREW | 4 |
| 39 | 12646601 | WASHER | 4 |
| 40 | 102948 | NUT | 4 |
| 41 | 13836371 | SCREW | 4 |
| 42 | 12647777 | WASHER | 2 |
| 43 | 62825300 | BUSHING | 8 |
| 44 | 62116700 | CLIP-Not for Spider | 4 |
| 45 | 40063208 | CABLE RETAIN CLIP | 2 |
| 46 | 62109400 | L.H. DOOR LOCK-Not for Spider | 1 |
| 46 | 62109300 | R.H. DOOR LOCK-Not for Spider | 1 |
| 46 | 64685200 | R.H. DOOR LOCK-Valid for Spider | 1 |
| 46 | 64685300 | L.H. DOOR LOCK-Valid for Spider | 1 |
| 47 | 62800900 | KNOB FOR SAFETY ROD | 2 |
| 48 | 62109200 | SAFETY LOCK ROD FOR L.H. DOOR-Not for Spider | 1 |
| 48 | 62109100 | SAFETY LOCK ROD FOR R.H. DOOR-Not for Spider | 1 |
| 48 | 63617700 | SAFETY LOCK ROD FOR L.H. DOOR-Valid for Spider | 1 |
| 48 | 63617600 | SAFETY LOCK ROD FOR R.H. DOOR-Valid for Spider | 1 |
| 49 | 63695300 | ROD CLIP-Valid for Spider | 2 |
| 49 | 63280600 | ROD CLIP-Not for Spider | 2 |
| 50 | 62941000 | SCREW | 6 |
| 51 | 63314400 | WASHER | 8 |
| 52 | 62940900 | SCREW | 2 |
| 53 | 63291200 | CABLE RETAIN CLIP | 2 |
| 54 | 101525 | 12V-3W BULB | 2 |
| 55 | 63285300 | WASHER | 2 |
| 56 | 14569480 | CLIP | 4 |
| 57 | 63942200 | INNER PIN-Valid from car Ass. Nr. 15172 | 2 |
| 58 | 63942100 | OUTER PIN-Valid from car Ass. Nr. 15172 | 2 |
| 59 | 11087974 | FLEXIBLE RING-Valid for Spider | 4 |
| 60 | 63963300 | SHIM FOR UPPER AND LOWER MOBILE HINGE-Thickness mm 1 | 4 |
| 60 | 63618700 | SHIM FOR UPPER AND LOWER MOBILE HINGE-Thickness mm 0,5 | 4 |
| 60 | 63617500 | SHIM FOR UPPER AND LOWER MOBILE HINGE-Thickness mm 1,5 | 4 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
