348 Spider Page 121 DOORS GLASS LIFTING DEVICE
Product Description
348 Spider Page 121 DOORS GLASS LIFTING DEVICE
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

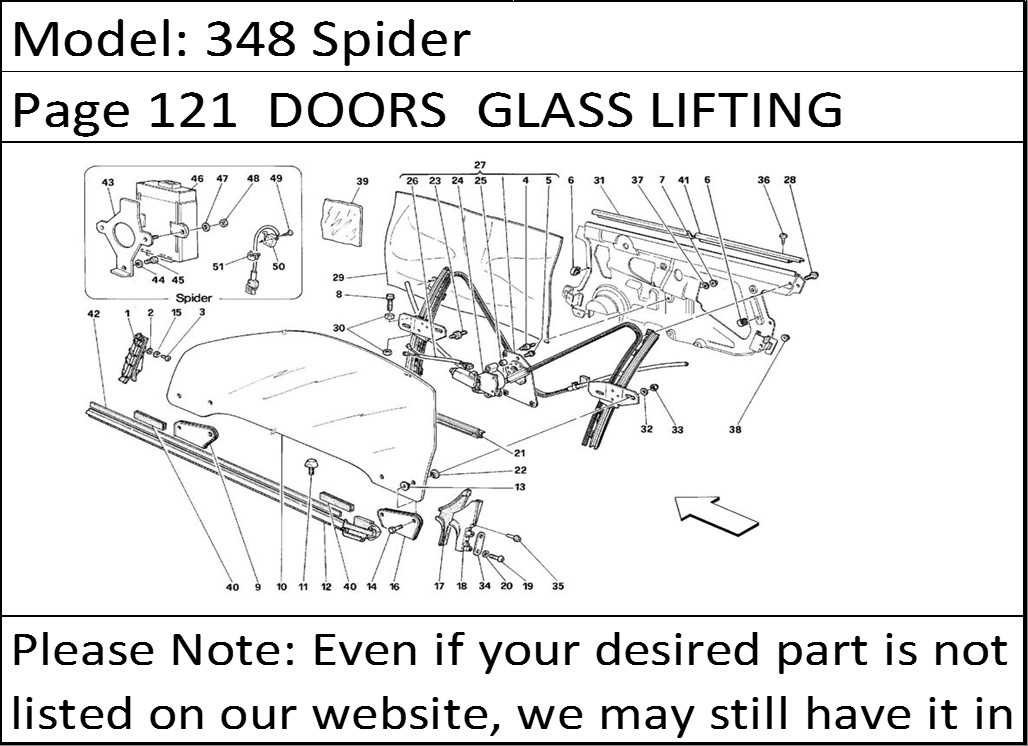

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 62122700 | R.H. FRONT GLASS GUIDE | 1 |
| 1 | 62122800 | L.H. FRONT GLASS GUIDE | 1 |
| 2 | 12646601 | WASHER | 2 |
| 3 | 13276211 | SCREW | 2 |
| 4 | 62008600 | RUBBER PAD | 6 |
| 5 | 63301800 | SCREW | 6 |
| 6 | 60123502 | CLIP | 2 |
| 7 | 13832101 | NUT | 6 |
| 8 | 62008400 | GLASS STOP RUBBER PAD | 4 |
| 9 | 62106100 | GLASS FRONT BRACKET | 2 |
| 10 | 62104300 | R.H. DOOR GLASS-Not for Spider | 1 |
| 10 | 62104400 | L.H. DOOR GLASS-Not for Spider | 1 |
| 10 | 64251000 | L.H. DOOR GLASS-Valid for Spider | 1 |
| 10 | 64250900 | R.H. DOOR GLASS-Valid for Spider | 1 |
| 11 | 63238800 | LOWER RUBBER PAD | 2 |
| 12 | 62213200 | L.H. DOOR BELT HEIGHT GASKET | 1 |
| 12 | 62213100 | R.H. DOOR BELT HEIGHT GASKET | 1 |
| 13 | 62106600 | OUTER BUSHING | 8 |
| 14 | 10902324 | SCREW | 8 |
| 15 | 12605379 | WASHER | 2 |
| 16 | 62106300 | GLASS REAR BRACKET | 2 |
| 17 | 62212900 | R.H. DOOR REAR ANGULAR GASKET | 1 |
| 17 | 62213000 | L.H. DOOR REAR ANGULAR GASKET | 1 |
| 18 | 62212100 | L.H. DOOR REAR ANGLE PIECE | 1 |
| 18 | 62212000 | R.H. DOOR REAR ANGLE PIECE | 1 |
| 19 | 62940900 | SCREW | 4 |
| 20 | 63314400 | WASHER | 4 |
| 21 | 63641600 | L.H. GLASS INNER GASKET-Valid for Spider | 1 |
| 21 | 63641500 | R.H. GLASS INNER GASKET-Valid for Spider | 1 |
| 21 | 62153400 | L.H. GLASS INNER GASKET-Not for Spider | 1 |
| 21 | 62153300 | R.H. GLASS INNER GASKET-Not for Spider | 1 |
| 22 | 62106700 | INNER BUSHING | 8 |
| 23 | 62211900 | PAD | 4 |
| 24 | 62302200 | L.H. GLASS LIFTING MOTOR | 1 |
| 24 | 62302100 | R.H. GLASS LIFTING MOTOR | 1 |
| 25 | 63301700 | SPACER | 6 |
| 26 | 63301900 | ELECTRIC WIRING FOR MOTOR | 2 |
| 27 | 62107300 | COMPLETE L.H. GLASS LIFT-Not for Spider | 1 |
| 27 | 63645200 | COMPLETE R.H. GLASS LIFT-Valid for Spider | 1 |
| 27 | 62107200 | COMPLETE R.H. GLASS LIFT-Not for Spider | 1 |
| 27 | 63645300 | COMPLETE L.H. GLASS LIFT-Valid for Spider | 1 |
| 28 | 13836371 | SCREW | 4 |
| 29 | 63000900 | WATER PROTECTION CLOTH | 2 |
| 30 | 15896214 | NUT | 8 |
| 31 | 63013600 | ANGLE PIECE FOR GLASS SCRAPER | 4 |
| 32 | 12601474 | WASHER | 16 |
| 33 | 102741 | NUT | 8 |
| 34 | 64293000 | R.H. SMALL PLATE | 1 |
| 34 | 65055800 | L.H. SMALL PLATE | 1 |
| 35 | 13271617 | SCREW | 4 |
| 36 | 15687970 | SCREW | 12 |
| 37 | 10615471 | WASHER | 6 |
| 38 | 13832101 | NUT | 4 |
| 39 | 63994800 | DOOR HANDLE WATER PROTECTION CLOTH | 2 |
| 40 | 62106500 | LOWER GASKET | 4 |
| 41 | 63641700 | ANGLE PIECE FOR R.H. REAR GLASS SCRAPER-Valid for Spider | 1 |
| 41 | 63644300 | ANGLE PIECE FOR L.H. REAR GLASS SCRAPER-Valid for Spider | 1 |
| 42 | 63012900 | BI-ADHESIVE FOR GASKET FASTENING | 2 |
| 43 | 154770 | ELECTRIC BOARD FIXING BRACKET-Valid for Spider | 1 |
| 44 | 10519424 | WASHER-Valid for Spider | 1 |
| 45 | 10902011 | SCREW-Valid for Spider | 1 |
| 46 | 154769 | GLASS LIFTING MOTOR ELECTRIC BOARD-Valid for Spider | 1 |
| 47 | 14496301 | WASHER-Valid for Spider | 2 |
| 48 | 169180 | NUT-Valid for Spider | 2 |
| 49 | 15908506 | SCREW-Valid for Spider | 4 |
| 50 | 154762 | MICRO-SWITCH-Valid for Spider | 2 |
| 51 | 155907 | SPRING-Valid for Spider | 1 |
