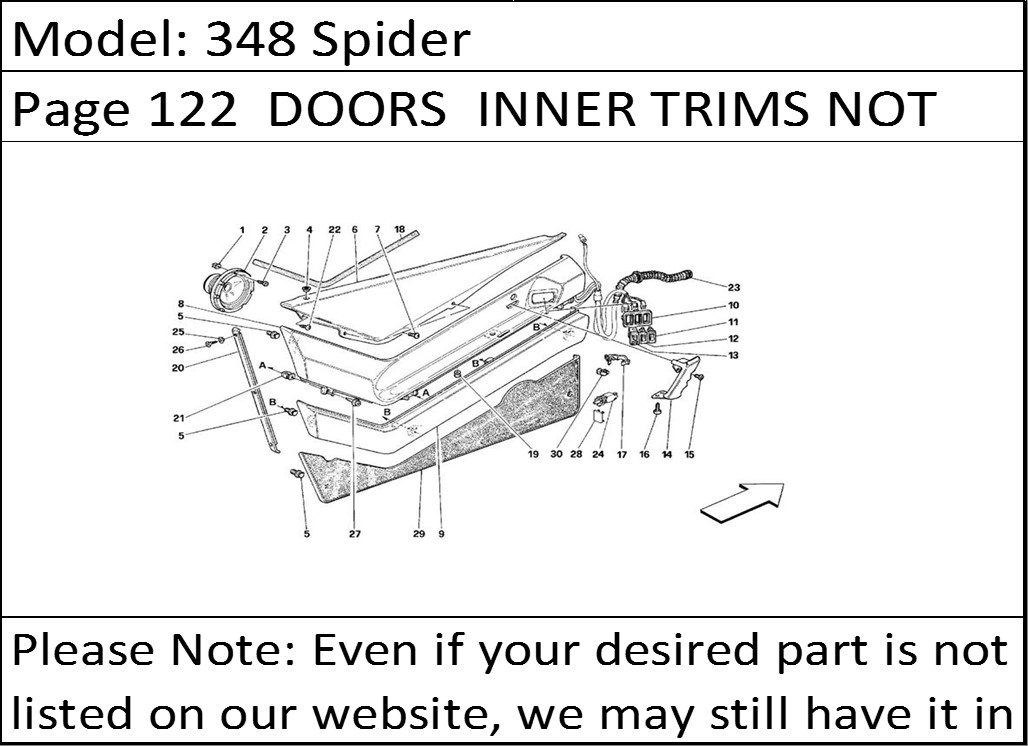

348 Spider Page 122 DOORS INNER TRIMS NOT FOR SPIDER
Product Description
348 Spider Page 122 DOORS INNER TRIMS NOT FOR SPIDER
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 14215480 | BLOCK | 8 |
| 2 | 141392 | LOUD SPEAKER WOOFER | 2 |
| 3 | 15687270 | SCREW | 8 |
| 4 | 61617500 | BUSH | 2 |
| 5 | 14188181 | RETAINER | 18 |
| 6 | 639991.. | TRIM FOR R.H. DOOR UPPER PANEL | 1 |
| 6 | 639989.. | COVERED UPPER PANEL FOR R.H. DOOR | 1 |
| 6 | 639997.. | TRIM FOR L.H. DOOR UPPER PANEL | 1 |
| 6 | 639994.. | COVERED UPPER PANEL FOR L.H. DOOR | 1 |
| 7 | 13276470 | SCREW | 4 |
| 8 | 621545.. | COVERED CENTRAL PANEL FOR L.H. DOOR-Not for RHD | 1 |
| 8 | 621544.. | COVERED CENTRAL PANEL FOR R.H. DOOR-Not for RHD | 1 |
| 8 | 621546.. | TRIM FOR R.H. DOOR CENTRAL PANEL | 1 |
| 8 | 628730.. | COVERED CENTRAL PANEL FOR L.H. DOOR-Valid for RHD | 1 |
| 8 | 628729.. | COVERED CENTRAL PANEL FOR R.H. DOOR-Valid for RHD | 1 |
| 8 | 621547.. | TRIM FOR L.H. DOOR CENTRAL PANEL | 1 |
| 9 | 621558.. | COVERED LOWER PANEL FOR R.H. DOOR | 1 |
| 9 | 621559.. | COVERED LOWER PANEL FOR L.H. DOOR | 1 |
| 9 | 629952.. | TRIM FOR R.H. DOOR LOWER PANEL | 1 |
| 9 | 629953.. | TRIM FOR L.H. DOOR LOWER PANEL | 1 |
| 10 | 62158800 | PILOT SIDE SWITCHES FIXING PLATE | 1 |
| 10 | 62158700 | PASSENGER SIDE SWITCHES FIXING PLATE | 1 |
| 11 | 144797 | L.H. SWITCH FOR GLASS LIFT-For RHD q.ty 2 | 1 |
| 12 | 144798 | R.H. SWITCH FOR GLASS LIFT-For RHD q.ty 1 | 2 |
| 13 | 134414 | SWITCH FOR OUTER REARVIEW MIRRORS CONTROL | 1 |
| 14 | 63296400 | R.H. DOOR INNER HANDLE | 1 |
| 14 | 63296500 | L.H. DOOR INNER HANDLE | 1 |
| 15 | 14778818 | SCREW | 2 |
| 16 | 13836371 | SCREW | 4 |
| 17 | 157386 | CLIP | 2 |
| 18 | 62782900 | GASKET | 1 |
| 19 | 62885500 | RING | 10 |
| 20 | 63555900 | R.H. DOOR MOULDING | 1 |
| 20 | 63556000 | L.H. DOOR MOULDING | 1 |
| 21 | 14202985 | BLOCK | 6 |
| 22 | 15687270 | SCREW | 2 |
| 23 | 153703 | BELLOWS ASSEMBLY FOR CABLE BUSHING | 2 |
| 24 | 134423 | SWITCH FOR ROOF LIGHT-For USA q.ty 4-For RHD and SA q.ty 2 | 3 |
| 25 | 62823200 | WASHER | 6 |
| 26 | 15908878 | SCREW | 6 |
| 27 | 15785101 | SCREW | 6 |
| 28 | 145504 | PLUG | |
| 29 | 62157400 | L.H. LOWER MOQUETTE TRIM-Not as spare part-With the moquette trim series | 1 |
| 29 | 62157300 | R.H. LOWER MOQUETTE TRIM-Not as spare part-With the moquette trim series | 1 |
| 30 | 157385 | PILOT SIDE SPRING | 1 |
| 30 | 60123502 | PASSENGER SIDE CLIP | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
