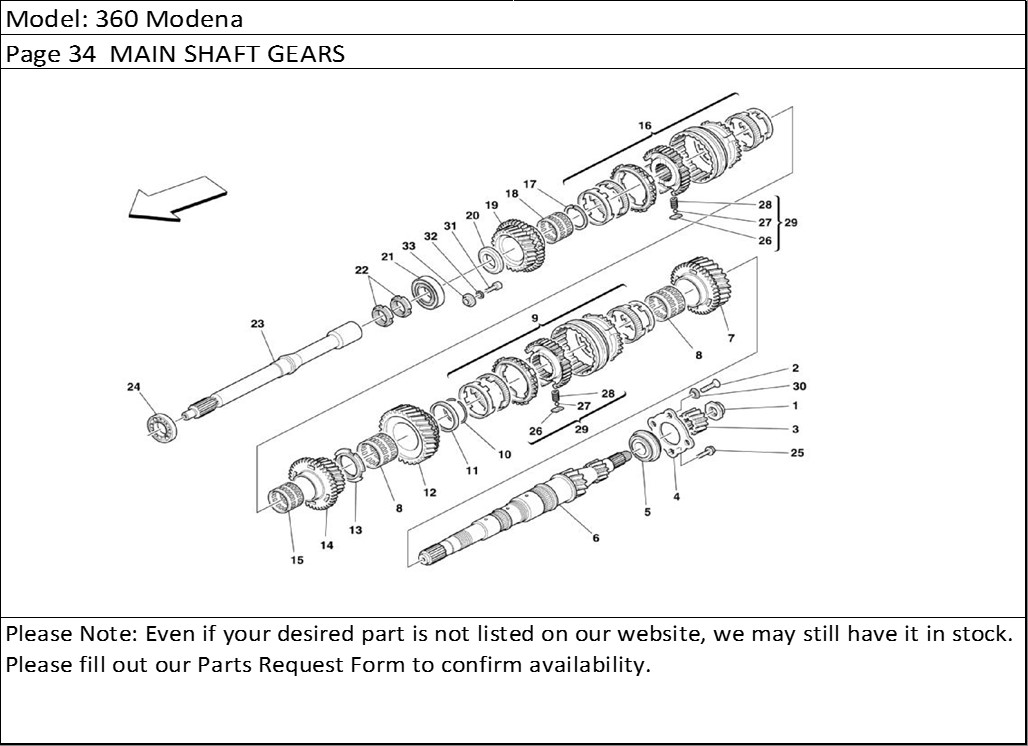

360 Modena Page 34 MAIN SHAFT GEARS
Product Description
360 Modena Page 34 MAIN SHAFT GEARS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 183967 | RING NUT | 1 |
| 2 | 14442027 | SCREW | 2 |
| 3 | 183966 | REVERSE DRIVING GEAR | 1 |
| 4 | 183984 | REAR PLATE | 1 |
| 5 | 184019 | BALL BEARING | 1 |
| 6 | 183964 | MAIN SHAFT | 1 |
| 7 | 183949 | PINION FOR 5th GEAR | 1 |
| 8 | 184015 | ROLLER CAGE | 2 |
| 9 | 185166 | 5th AND 6th GEAR COMPLETE SYNCHRONIZER | 1 |
| 10 | 184011 | FLEXIBLE RING | 1 |
| 11 | 183970 | SPACER FOR PINION FOR 6th GEAR | 1 |
| 12 | 183950 | PINION FOR 6th GEAR | 1 |
| 13 | 184010 | RING | 1 |
| 14 | 183947 | PINION FOR 3rd GEAR | 1 |
| 15 | 184014 | ROLLER CAGE | 1 |
| 16 | 185165 | 3rd AND 4th GEAR COMPLETE SYNCHRONIZER | 1 |
| 17 | 184042 | FLEXIBLE RING | 1 |
| 18 | 184005 | ROLLER CAGE | 1 |
| 19 | 183948 | PINION FOR 4th GEAR | 1 |
| 20 | 183973 | WASHER | 1 |
| 21 | 184021 | ROLLER BEARING | 1 |
| 22 | 184012 | RING NUT | 2 |
| 23 | 183965 | CLUTCH SHAFT | 1 |
| 24 | 184013 | BALL BEARING | 1 |
| 25 | 16287124 | SCREW | 2 |
| 26 | 184991 | PAD FOR SYNCHRONIZER -Not as spare part -Replaced by 188320 -See ref. 29 | 6 |
| 27 | 184997 | BALL -Not as spare part -Replaced by 188320 -See ref. 29 | 6 |
| 28 | 188320 | SPRING -Not as spare part -Replaced by 188320 -See ref. 29 | 6 |
| 29 | 188320 | PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT | 2 |
| 30 | 12606979 | WASHER | 2 |
| 31 | 14305720 | SCREW | 1 |
| 32 | 10569274 | WASHER | 1 |
| 33 | 183985 | BUSHING | 1 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 64529600 | SPACER | 8 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -For cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -For cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -For cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -For cars with headlights washer | 2 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -For cars with headlights washer | 1 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -For cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -For cars with headlights washer | 6 |
| 24 | 65896700 | L.H. SUPPORT -For cars with headlights washer | 1 |
| 24 | 65896600 | R.H. SUPPORT -For cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -For cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -For cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -For cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -For cars with headlights washer | 4 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 16043934 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 40 | 14190190 | NUT WITH CAGE | 2 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 42 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 43 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 44 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 45 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 5 | 67465400 | Description not available | |
| 5 | 67465405 | Description not available | |
| 5 | 67465427 | Description not available | |
| 5 | 67465431 | Description not available | |
| 5 | 67465505 | Description not available |
