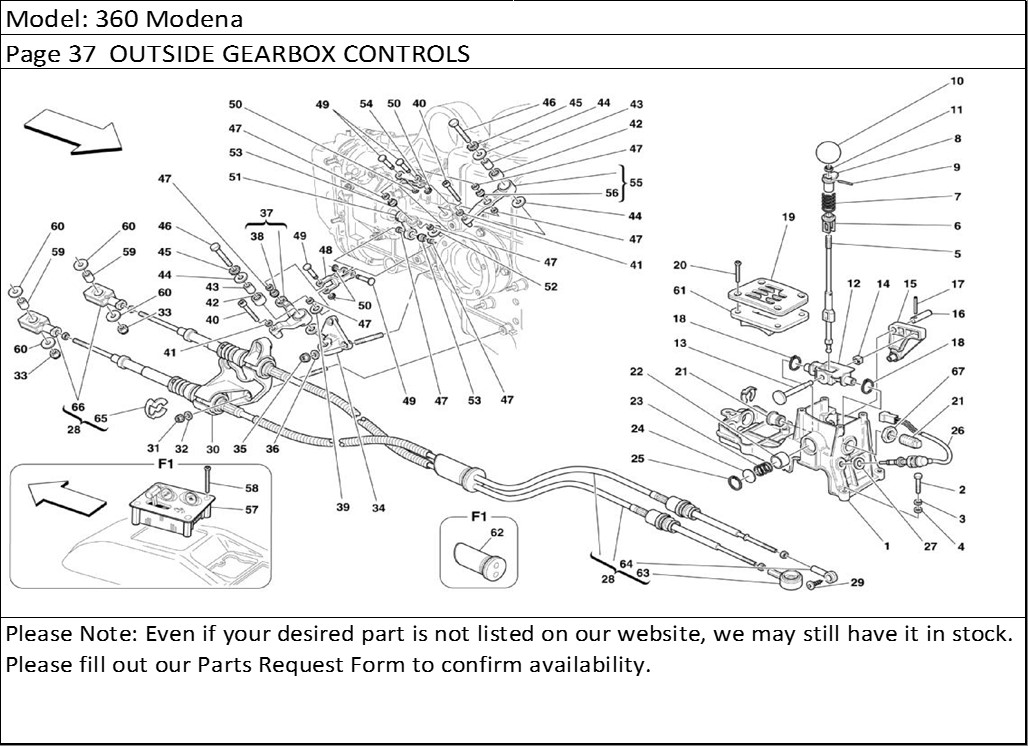

360 Modena Page 37 OUTSIDE GEARBOX CONTROLS
Product Description
360 Modena Page 37 OUTSIDE GEARBOX CONTROLS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 176418 | GEARBOX CONTROL -Not for F1 -Not as spare part replaced by 181751 | 1 |
| 1 | 181751 | GEARBOX CONTROL -Not for F1 | 1 |
| 2 | 16044024 | SCREW -Not for F1 | 4 |
| 3 | 12601374 | WASHER -Not for F1 | 4 |
| 4 | 14496524 | WASHER -Not for F1 | 4 |
| 5 | 180936 | GEARBOX CONTROL LEVER -Not for F1 | 1 |
| 6 | 174967 | BUSHING -Not for F1 - Revised Hill Engineering | 1 |
| 7 | 159137 | SPRING -Not for F1 | 1 |
| 8 | 199070 | BUSHING -Not for F1 | 1 |
| 9 | 13896070 | PIN -Not for F1 | 1 |
| 10 | 160480 | KNOB -Not for F1 | 1 |
| 11 | 108010 | COUNTER NUT -Not for F1 | 1 |
| 12 | 176626 | FULCRUM -Not for F1 | 1 |
| 13 | 176425 | PIN -Not for F1 | 1 |
| 14 | 172934 | SMALL BLOCK -Not for F1 | 1 |
| 15 | 176642 | LEVER -Not for F1 | 1 |
| 16 | 176419 | PIN -Not for F1 | 1 |
| 17 | 14160570 | PIN -Not for F1 | 1 |
| 18 | 172918 | SAFETY RING -Not for F1 | 2 |
| 19 | 179844 | GEAR SELECTOR -Not for F1 | 1 |
| 20 | 159357 | SCREW -Not for F1 | 4 |
| 21 | 181753 | FRONT BUSHING -Valid for gearbox control 181751 | 1 |
| 21 | 176904 | PLUG -Not for F1 -Valid for gearbox control 176418 | 2 |
| 21 | 181752 | REAR BUSHING -Valid for gearbox control 181751 | 1 |
| 22 | 177029 | PIN -Not for F1 | 1 |
| 23 | 177027 | SIDE SPRING -Not for F1 | 1 |
| 24 | 177028 | SPRING RETAINING DISC -Not for F1 | 1 |
| 25 | 11058976 | FLEXIBLE RING -Not for F1 | 1 |
| 26 | 115980 | PUSH-BUTTON SWITCH -Not for F1 | 1 |
| 27 | 12601574 | WASHER -Not for F1 | 1 |
| 28 | 182268 | COMPLETE GEARBOX CONTROL CABLES -Not for F1 -Valid from Ass. Nr. 35397 | 1 |
| 28 | 180701 | COMPLETE GEARBOX CONTROL CABLES -Not for F1 -Replaces 178220 -Valid till Ass. Nr. 35396 | 1 |
| 29 | 14567187 | BUTTON -Not for F1 | 1 |
| 30 | 177812 | BRACKET FOR CABLE FIXING -Not for F1 | 1 |
| 31 | 132877 | NUT -Not for F1 | 3 |
| 32 | 14496424 | WASHER -Not for F1 | 3 |
| 33 | 14048115 | NUT -Not for F1 | 2 |
| 34 | 177105 | SUPPORT FOR LEVERAGE -Not for F1 | 1 |
| 35 | 150978 | NUT -Not for F1 -Not as spare part -Replaced by 177778 | 3 |
| 35 | 177778 | NUT -Not for F1 | 3 |
| 36 | 12638524 | WASHER -Not for F1 | 3 |
| 37 | 178840 | LEVER -Not for F1 -Valid till Ass. Nr. 35396 | 1 |
| 37 | 186369 | LEVER -Not for F1 -Valid from Ass. Nr. 35397 | 1 |
| 38 | 109407 | BALL JOINT -Not for F1 | 1 |
| 39 | 178423 | THICKNESS -Not for F1 | 1 |
| 40 | 14305824 | SCREW -Not for F1 | 2 |
| 41 | 14499324 | WASHER -Not for F1 | 2 |
| 42 | 171677 | ROLLER BEARING -Not for F1 | 2 |
| 43 | 174984 | BUSHING -Not for F1 | 2 |
| 44 | 171671 | WASHER -Not for F1 | 4 |
| 45 | 10615674 | WASHER -Not for F1 | 2 |
| 46 | 16044024 | SCREW -Not for F1 | 2 |
| 47 | 171673 | SPACER -Not for F1 | 8 |
| 48 | 174911 | FORK -Not for F1 | 1 |
| 49 | 174974 | PIN -Not for F1 | 4 |
| 50 | 11065676 | SEEGER RING -Not for F1 -Not as spare part -Replaced by 11065674 | 4 |
| 50 | 11065674 | SEEGER RING -Not for F1 | 4 |
| 51 | 184022 | CONNECTION -Not for F1 -Not as spare part -Replaced by 184022 -See tab. 35 ref. 6 | 1 |
| 52 | 178423 | THICKNESS -Not for F1 | 1 |
| 53 | 109407 | BALL JOINT -Not for F1 | 2 |
| 54 | 174912 | FORK -Not for F1 | 1 |
| 55 | 186371 | LEVER -Not for F1 -Valid from Ass. Nr. 35397 | 1 |
| 55 | 178932 | LEVER -Not for F1 -Valid till Ass. Nr. 35396 | 1 |
| 56 | 109407 | BALL JOINT -Not for F1 | 1 |
| 57 | 181068 | F1 GEARBOX CONTROL DASHBOARD -Valid for F1 -Valid for GD | 1 |
| 57 | 181067 | F1 GEARBOX CONTROL DASHBOARD -Valid for F1 -Not for GD | 1 |
| 58 | 65404500 | SCREW -Valid for F1 | 4 |
| 59 | 182237 | BUSHING -Not for F1 | 2 |
| 60 | 12643724 | WASHER -Not for F1 | 4 |
| 61 | 176422 | SPACER -Not for F1 | 1 |
| 62 | 180127 | CLOSING HOLE PAD -Valid for F1 | 1 |
| 63 | 187873 | R.H. JOINT -Not for F1 | 1 |
| 64 | 187874 | L.H. JOINT -Not for F1 | 1 |
| 65 | 187875 | LOCK RING -Not for F1 | 2 |
| 66 | 182435 | COMPLETE RUBBER JOINT -Not for F1 | 2 |
| 67 | 182391 | NUT -Valid for gearbox control 181751 | 1 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 64529600 | SPACER | 8 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -For cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -For cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -For cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -For cars with headlights washer | 2 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -For cars with headlights washer | 1 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -For cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -For cars with headlights washer | 6 |
| 24 | 65896700 | L.H. SUPPORT -For cars with headlights washer | 1 |
| 24 | 65896600 | R.H. SUPPORT -For cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -For cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -For cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -For cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -For cars with headlights washer | 4 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 16043934 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 40 | 14190190 | NUT WITH CAGE | 2 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 42 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 43 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 44 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 45 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 5 | 67465400 | Description not available | |
| 5 | 67465405 | Description not available | |
| 5 | 67465427 | Description not available | |
| 5 | 67465431 | Description not available | |
| 5 | 67465505 | Description not available |
