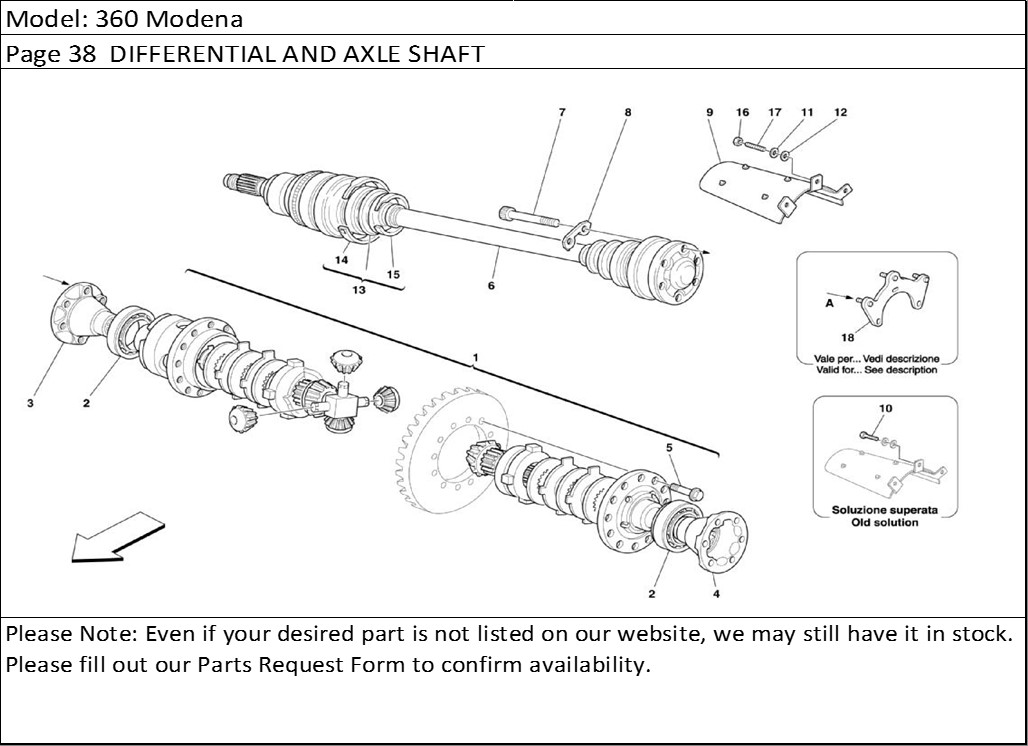

360 Modena Page 38 DIFFERENTIAL AND AXLE SHAFT
Product Description
360 Modena Page 38 DIFFERENTIAL AND AXLE SHAFT
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 190005 | COMPLETE DIFFERENTIAL | 1 |
| 2 | 184998 | ROLLER BEARING | 2 |
| 3 | 199055 | R.H. SHAFT FOR DIFFERENTIAL EXIT | 1 |
| 3 | 185013 | R.H. SHAFT FOR DIFFERENTIAL EXIT -Valid till gearbox Nr. 458 and from gearbox Nr. 1089 | 1 |
| 4 | 199056 | L.H. SHAFT FOR DIFFERENTIAL EXIT | 1 |
| 5 | 183909 | SCREW | 12 |
| 6 | 183552 | AXLE SHAFT -Valid from Ass. Nr. 40312 | 2 |
| 6 | 174756 | AXLE SHAFT -Valid till Ass. Nr. 40311 | 2 |
| 7 | 181910 | SCREW | 12 |
| 8 | 149415 | PLATE | 6 |
| 9 | 184083 | SHIELD FOR AXLE SHAFT PROTECTION | 2 |
| 10 | 10902124 | SCREW | 6 |
| 11 | 12601274 | WASHER | 6 |
| 12 | 12639724 | WASHER | 6 |
| 13 | 70000868 | PROTECTION REPLACEMENT SET - Wheel side | 2 |
| 13 | 70000867 | PROTECTION REPLACEMENT SET -Gearbox side | 2 |
| 14 | 172347 | BIG CLAMP | 4 |
| 15 | 154213 | LITTLE CLAMP | 4 |
| 16 | 14048115 | NUT | 6 |
| 17 | 13540924 | STUD | 6 |
| 18 | 187648 | R.H. BRACKET -Valid for car without holes for shield 184083 -See ref. 9 | 1 |
| 18 | 187649 | L.H. BRACKET -Valid for car without holes for shield 184083 -See ref. 9 | 1 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 64529600 | SPACER | 8 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -For cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -For cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -For cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -For cars with headlights washer | 2 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -For cars with headlights washer | 1 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -For cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -For cars with headlights washer | 6 |
| 24 | 65896700 | L.H. SUPPORT -For cars with headlights washer | 1 |
| 24 | 65896600 | R.H. SUPPORT -For cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -For cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -For cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -For cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -For cars with headlights washer | 4 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 16043934 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 40 | 14190190 | NUT WITH CAGE | 2 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 42 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 43 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 44 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 45 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 5 | 67465400 | Description not available | |
| 5 | 67465405 | Description not available | |
| 5 | 67465427 | Description not available | |
| 5 | 67465431 | Description not available | |
| 5 | 67465505 | Description not available |
