Home > 430 Coupe Page 2 DRIVING SHAFT CONNECTING RODS AND PIS

430 Coupe Page 2 DRIVING SHAFT CONNECTING RODS AND PIS

Product Description

430 Coupe Page 2 DRIVING SHAFT CONNECTING RODS AND PIS

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

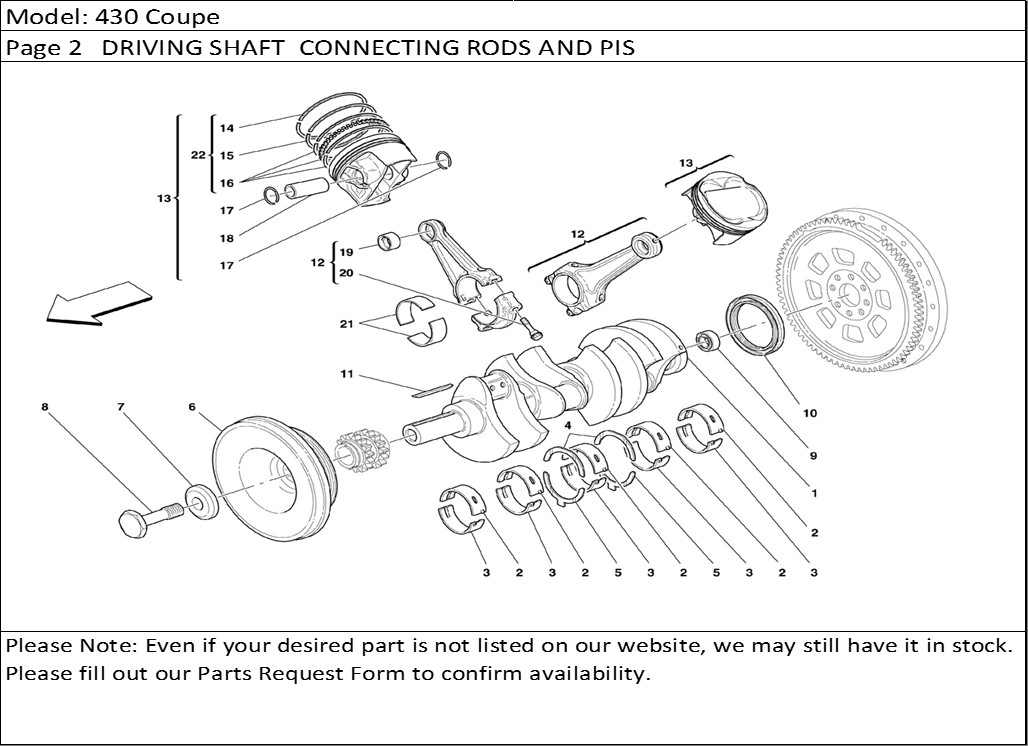

Location in Parts Diagram	Part #	Description	Quantity Used
1	196460	CRANKSHAFT	1
2	195307	UPPER HALF BEARING -Blue- -Standard-	5
2	198910	UPPER HALF BEARING -Green-	5
2	195308	UPPER HALF BEARING -Yellow-	5
3	200195	ER HALF BEARING -Yellow-	5
3	200196	ER HALF BEARING -Green-	5
3	200194	ER HALF BEARING -Blue- -Standard-	5
4	196648	UPPER SHIM -Valid till Ass. Nr. 72741-	2
4	222874	SHIM -Valid from Ass. Nr. 72742-	2
5	222874	SHIM -Valid from Ass. Nr. 72742-	2
5	196649	ER SHIM -Valid till Ass. Nr. 72741-	2
6	212322	TORSION DAMPER	1
7	192106	SHER	1
8	196216	SCREW FOR DAMPER FIXING	1
9	103877	BEARING	1
10	200323	SEAL RING	1
10	200323	SEAL RING -As an alternative-	1
11	186201	KEY	1
12	215529	COMPLETE CONNECTING ROD -Valid after stock exhaustion of 208080-	8
12	215529	COMPLETE CONNECTING ROD -Valid till stock exhaustion-	8
13	210360	RH PISTON WITH RINGS	4
13	210361	LH PISTON WITH RINGS	4
14	236497	SEAL RING -1st groove-	8
15	226260	SEAL RING -2nd groove-	8
16	175614	OIL SCRAPING RING -3nd groove-	8
17	178890	STOP RING	16
18	175367	PIN	8
19	208094	BUSHING	8
20	208095	CONNECTING ROD TIGHTENING SCREW -Not as spare part- -Replaced by 215530-	16
20	215836	CONNECTING ROD TIGHTENING SCREW -As an alternative- -Not as spare part- -Replaced by 215530-	16
20	215837	CONNECTING ROD TIGHTENING SCREW -As an alternative- -Not as spare part- -Replaced by 215530-	16
20	215530	CONNECTING ROD TIGHTENING SCREW	16
21	204290	CONNECTING ROD HALF BEARING -Red- -Standard	16
21	204291	CONNECTING ROD HALF BEARING -Blue-	16
21	204292	CONNECTING ROD HALF BEARING -Black-	16
22	198025	PISTONS RINGS SET	12
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
