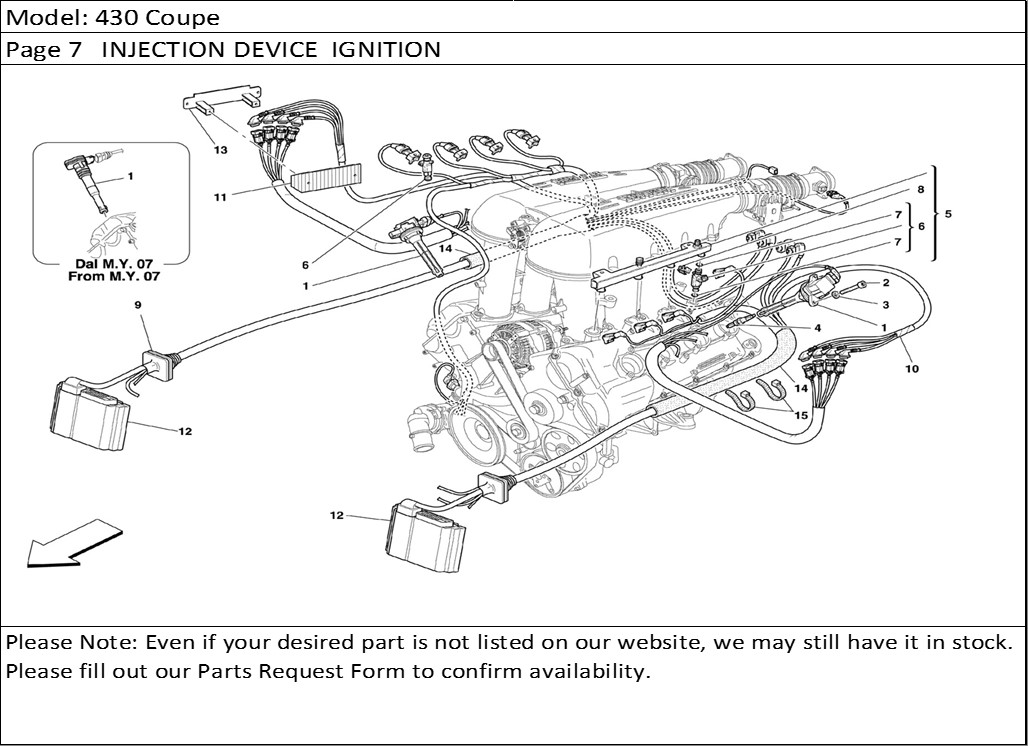

430 Coupe Page 7 INJECTION DEVICE IGNITION
Product Description
430 Coupe Page 7 INJECTION DEVICE IGNITION
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 188504 | SINGOL IGNITION COIL -For cylinder 1,2,7,8- -Valid till Ass. Nr. 67970 for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 4 |
| 1 | 186914 | SINGOL IGNITION COIL -For cylinder 3,4,5,6- -Valid till Ass. Nr. 67970 for USA and CDN- -Valid till | 4 |
| 1 | 227876 | SINGOL IGNITION COIL -Valil from M.Y. 07- -Valid from Ass. Nr. 67971 for USA and CDN- -Valid from Ass. Nr. 69639 for not USA and CDN- | 8 |
| 2 | 201599 | SCREW -Valid till Ass. Nr. 67970 for USA and CDN- | 16 |
| 3 | 11197774 | SHER -Valid till Ass. Nr. 67970 for USA and CDN- | 16 |
| 4 | 192637 | SPARK PLUG | 8 |
| 5 | 216543 | L.H. COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS -Valid from engine Nr. 99608- -Valid from M.Y. 06- | 1 |
| 5 | 191390 | L.H. COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS -Valid till engine Nr. 99607- -Valid till M.Y. 06- | 1 |
| 5 | 216542 | R.H. COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS -Valid from engine Nr. 99608- -Valid from M.Y. 06- | 1 |
| 5 | 191392 | R.H. COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS -Valid till engine Nr. 99607- -Valid till M.Y. 06- | 1 |
| 6 | 191393 | ELECTRO-INJECTOR -Valid till engine Nr. 99607- -Valid till M.Y. 06- | 8 |
| 6 | 213635 | ELECTRO-INJECTOR -Valid from engine Nr. 99608- -Valid from M.Y. 06- | 8 |
| 7 | 133902 | GASKET | 4 |
| 8 | 144730 | INJECTORS RETAINING CLIP | 8 |
| 9 | 215268 | R.H. SIDE INJECTION CONNECTING CABLES -Not for USA and CDN- -Not as spare part- -Replaced by 215268- | 1 |
| 9 | 215268 | R.H. SIDE INJECTION CONNECTING CABLES -Not for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 1 |
| 9 | 221338 | R.H. SIDE INJECTION CONNECTING CABLES -Not for USA and CDN- -Valid from Ass. Nr. 69639 for not USA and CDN- | 1 |
| 9 | 209438 | R.H. SIDE INJECTION CONNECTING CABLES -Valid for USA and CDN- -Valid till Ass. Nr. 67970- | 1 |
| 9 | 219904 | R.H. SIDE INJECTION CONNECTING CABLES -Valid for USA and CDN- -Valil from M.Y. 07- -Valid from Ass.Nr.67971- | 1 |
| 10 | 219905 | L.H. SIDE INJECTION CONNECTING CABLES -Valid for USA and CDN- -Valil from M.Y. 07- -Valid from Ass. Nr.67971- | 1 |
| 10 | 209437 | L.H. SIDE INJECTION CONNECTING CABLES -Valid for USA and CDN- -Valid till Ass. Nr. 67970- | 1 |
| 10 | 221339 | L.H. SIDE INJECTION CONNECTING CABLES -Not for USA and CDN- -Valid from Ass. Nr. 69639 for not USA and CDN- | 1 |
| 10 | 215269 | L.H. SIDE INJECTION CONNECTING CABLES -Not for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 1 |
| 10 | 215269 | L.H. SIDE INJECTION CONNECTING CABLES -Not for USA and CDN- -Not as spare part- -Replaced by 215269- | 1 |
| 11 | 224384 | L.H. REAR PANEL -Valid after stock exhaustion of 201733- | 1 |
| 11 | 201733 | L.H. REAR PANEL -Valid till stock exhaustion- | 1 |
| 11 | 224383 | R.H. REAR PANEL -Valid after stock exhaustion of 201732- | 1 |
| 11 | 201732 | R.H. REAR PANEL -Valid till stock exhaustion- | 1 |
| 12 | 227392 | CONTROL UNIT IGNITION -Taiwan- -Valid from M.Y. 06- -Valid till Ass. Nr. 69627- | 2 |
| 12 | 235222 | CONTROL UNIT IGNITION -Taiwan- -Valid from Ass. Nr. 69628- -Valid till Ass. Nr. 73459- | 2 |
| 12 | 240791 | CONTROL UNIT IGNITION -Taiwan- -Valid from Ass. Nr. 73460- | 2 |
| 12 | 224751 | CONTROL UNIT IGNITION -Germany- -Valid from M.Y. 06- -Valid for Noise kit- | 2 |
| 12 | 230386 | CONTROL UNIT IGNITION -Not for USA and CDN- -Not for Noise kit- -Valid till Ass. Nr. 69627- | 2 |
| 12 | 235220 | CONTROL UNIT IGNITION -Not for USA and CDN- -Valid from Ass.Nr.69628- -Valid till Ass.Nr.73459- | 2 |
| 12 | 240790 | CONTROL UNIT IGNITION -Not for USA and CDN- -Valid from Ass.73460- -Valid till car. Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 2 |
| 12 | 241764 | CONTROL UNIT IGNITION -Not for USA and CDN- -Valid from car.157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 2 |
| 12 | 241765 | CONTROL UNIT IGNITION -Valid for USA and CDN- -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y.2008- | 2 |
| 12 | 236837 | CONTROL UNIT IGNITION -Valid for USA and CDN- -Valil from M.Y. 07- -Valid from Ass. Nr. 71294- -No temperature sensors- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 2 |
| 12 | 231042 | CONTROL UNIT IGNITION -Valid for USA and CDN- -Valil from M.Y. 07- -Valid till Ass. Nr. 71293- | 2 |
| 12 | 217987 | CONTROL UNIT IGNITION -Not for F1 - -Not for USA and CDN- -Valid till car Ass. Nr. 57595- | 2 |
| 12 | 217987 | CONTROL UNIT IGNITION -Not for F1 - -Not for USA and CDN- -Valid from car Ass. Nr. 57596 and valid till car Ass. Nr. 62225- | 2 |
| 12 | 216390 | CONTROL UNIT IGNITION -Not for F1 - -Valid for USA and CDN- -Valid till M.Y. 06- | 2 |
| 12 | 199215 | CONTROL UNIT IGNITION -Valid for F1- -Not for USA and CDN- -Valid till car Ass. Nr. 57595- | 2 |
| 12 | 217986 | CONTROL UNIT IGNITION -Valid for F1 - -Not for USA and CDN- -Valid from car Ass. Nr. 57596 and vale till car Ass. Nr. 62225- | 2 |
| 12 | 222264 | CONTROL UNIT IGNITION -Not for USA and CDN- -Vale from car Ass. Nr. 62226- -Valid till Ass. Nr.69627- | 2 |
| 12 | 216391 | CONTROL UNIT IGNITION -Valid for F1- -Valid for USA and CDN- -Valid till M.Y. 06- | 2 |
| 12 | 222251 | CONTROL UNIT IGNITION -Valid for USA and CDN- -Valid from M.Y. 06- -Valid till Ass. Nr. 67970- | 2 |
| 13 | 192535 | R.H. BRACKET | 1 |
| 13 | 200163 | L.H. BRACKET | 1 |
| 14 | 216545 | CABLES HOSE | 2 |
| 15 | 206739 | TEAR TYPE CLAMP | 4 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
