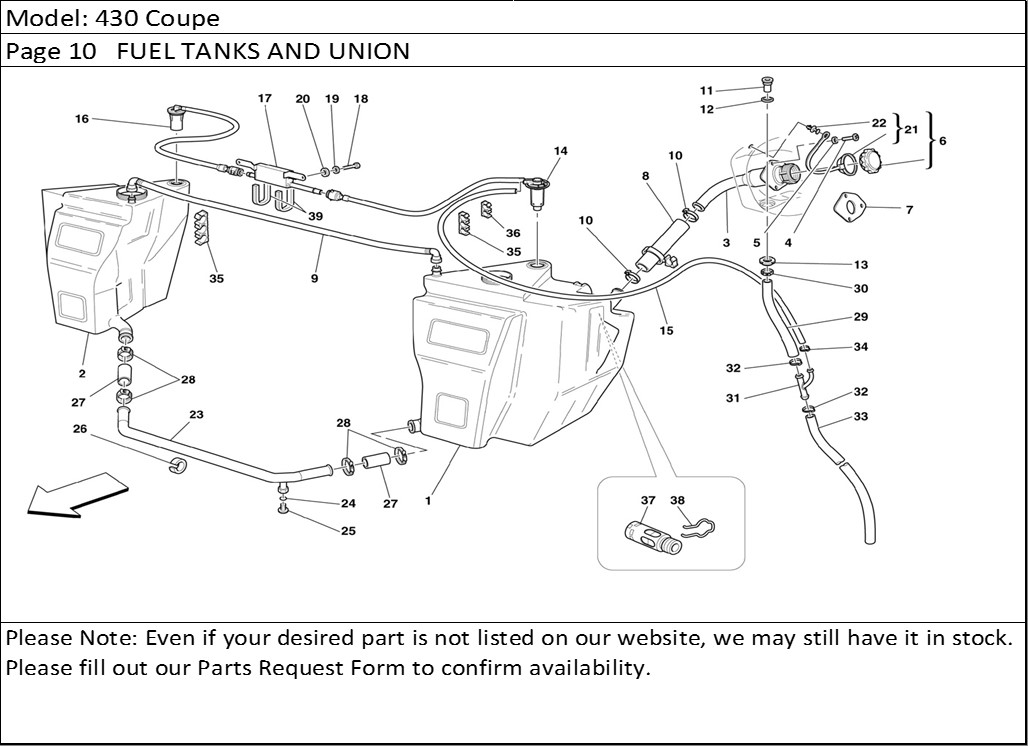

430 Coupe Page 10 FUEL TANKS AND UNION
Product Description
430 Coupe Page 10 FUEL TANKS AND UNION
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 195895 | L.H. FUEL TANK -Valid till stock exhaustion- | 1 |
| 1 | 231403 | L.H. FUEL TANK -Valid after stock exhaustion of 195895- | 1 |
| 2 | 195891 | R.H. FUEL TANK -Valid till stock exhaustion- | 1 |
| 2 | 231404 | R.H. FUEL TANK -Valid after stock exhaustion of 195891 - | 1 |
| 3 | 203516 | UNION | 1 |
| 4 | 64686900 | SCREW | 3 |
| 5 | 12601274 | SHER | 3 |
| 5 | 10615474 | SHER -Not as spare part- -Replaced by 12601274- | 3 |
| 6 | 190469 | COMPLETE PLUG | 1 |
| 7 | 172899 | GASKET -Not as spare part- -Replaced by 235256- | 1 |
| 7 | 235256 | GASKET | 1 |
| 8 | 232567 | UNION-TANK CONNECTING PIPE -Valid after stock exhaustion of 198481- | 1 |
| 8 | 198481 | UNION-TANK CONNECTING PIPE -Valid till stock exhaustion- | 1 |
| 9 | 207054 | TANKS AIR BELL CONNECTION PIPE | 1 |
| 10 | 170127 | ELASTIC COLLAR | 2 |
| 11 | 64872000 | SLEEVE | 1 |
| 12 | 65064500 | GASKET | 1 |
| 13 | 104919 | RING NUT | 1 |
| 14 | 243907 | L.H. VALVE WITH PIPE | 1 |
| 15 | 211283 | RUBBER HOSE | 1 |
| 16 | 208894 | R.H. VALVE WITH PIPE | 1 |
| 17 | 209010 | DISAREATOR | 1 |
| 18 | 62940900 | SCREW | 2 |
| 19 | 127494 | SHER | 2 |
| 20 | 10523424 | SHER | 2 |
| 21 | 196949 | COMPLETE RING | 1 |
| 22 | 186172 | RETAINER | 1 |
| 23 | 224755 | TANKS CONNECTION PIPE -Valid till stock exhaustion- | 1 |
| 23 | 224755 | TANKS CONNECTION PIPE -Valid after stock exhaustion of 203788- | 1 |
| 24 | 123622 | GASKET -Valid for tanks connection pipe 203788 Ref. 23- | 1 |
| 25 | 148045 | THREADED PLUG -Valid for tanks connection pipe 203788 Ref. 23- | 1 |
| 26 | 177437 | RUBBER THICKNESS | 6 |
| 27 | 196299 | RUBBER HOSE -Valid till stock exhaustion- | 2 |
| 27 | 241179 | RUBBER HOSE -Valid after stock exhaustion of 196299- | 2 |
| 28 | 180957 | SCREW COLLAR | 4 |
| 29 | 213294 | PIPE FROM PAN TO 3-WAY | 1 |
| 30 | 177553 | CLAMP | 1 |
| 31 | 195439 | AY UNION | 1 |
| 32 | 178052 | CLAMP | 2 |
| 33 | 213295 | PIPE FROM 3-WAY TO BOTTOM | 1 |
| 34 | 13432270 | ELASTIC COLLAR | 1 |
| 35 | 183098 | FLEXIBLE CLIP | 1 |
| 36 | 140727 | FLEXIBLE CLIP | 2 |
| 37 | 181929 | ON-OFF VALVE | 1 |
| 38 | 181930 | CLIP | 1 |
| 39 | 69101300 | ANTI-VIBRATIONS | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
