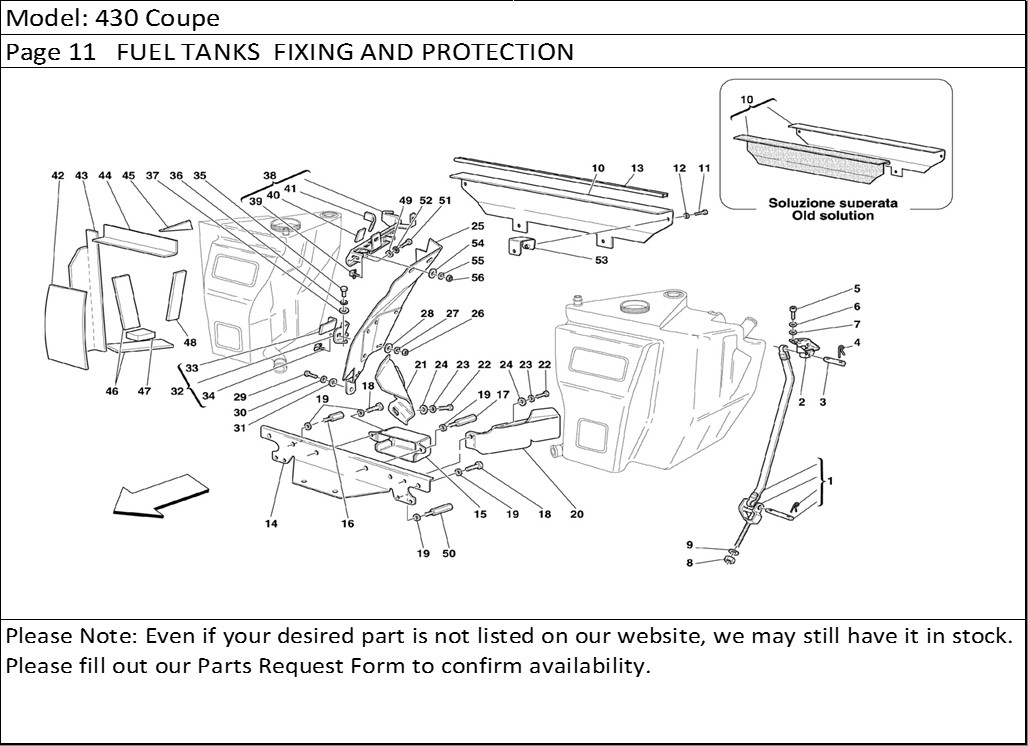

430 Coupe Page 11 FUEL TANKS FIXING AND PROTECTION

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	180348	FUEL TANK FASTENER	2
2	174445	R.H. BRACKET	1
2	175768	L.H. BRACKET	1
3	103447	PIN	2
4	10796440	SPLIT PIN	4
5	14305324	SCREW	6
6	12605374	SHER -Valid till stock exhaustion-	6
6	12601274	SHER -Valid after stock exhaustion of 12605374-	6
7	10519424	SHER	6
8	104030	NUT	2
9	14496524	SHER	2
10	210814	DISAREATOR ANTI-HEAT SHIELD -Not as spare part- -Replaced by 210814-	1
10	210814	DISAREATOR ANTI-HEAT SHIELD	1
11	10902424	SCREW -Not as spare part- -Replaced by 16285127-	4
11	16285127	SCREW	4
12	12644424	SHER -Not as spare part- -Replaced by 12638177-	4
12	12638178	SHER -Not as spare part- -Replaced by 12638178-	4
12	12638178	SHER	4
13	190115	RUBBER GASKET	1
14	198222	PROTECTION PLATE	1
15	186045	FRAME	1
16	178772	STUD	3
17	179242	STUD -Not as spare part- -Replaced by 182363-	1
17	182363	STUD	1
18	10902421	SCREW	7
19	13550221	SHER	10
20	180233	ER L.H. ANTI-HEAT SHIELD -Valid till stock exhaustion-	1
20	224379	ER L.H. ANTI-HEAT SHIELD -Valid after stock exhaustion of 180233-	1
21	224381	ER R.H. ANTI-HEAT SHIELD -Valid till stock exhaustion-	1
21	224381	ER R.H. ANTI-HEAT SHIELD -Valid after stock exhaustion of 188471-	1
22	10902424	SCREW	4
23	12605374	SHER -Valid till stock exhaustion-	4
23	12601274	SHER -Valid after stock exhaustion of 12605374-	4
24	14499324	SHER	4
25	208493	R.H. ANTI-HEAT SHIELD -Valid till stock exhaustion-	1
25	224387	R.H. ANTI-HEAT SHIELD -Valid after stock exhaustion of 208493-	1
25	208492	L.H. ANTI-HEAT SHIELD -Valid till stock exhaustion-	1
25	224386	L.H. ANTI-HEAT SHIELD -Valid after stock exhaustion of 208492-	1
26	15896214	NUT	2
27	12601274	SHER -Valid after stock exhaustion of 12605374-	2
27	12605374	SHER -Valid till stock exhaustion-	2
28	12644424	SHER	2
29	10902424	SCREW	4
30	12605374	SHER -Valid till stock exhaustion-	4
30	12601274	SHER -Valid after stock exhaustion of 12605374-	4
31	14499324	SHER	4
32	177775	ER BRACKET FOR R.H. TANK FIXING	1
32	177774	ER BRACKET FOR L.H. TANK FIXING	1
33	177773	R.H. RUBBER THICKNESS	1
33	177772	L.H. RUBBER THICKNESS	1
34	14664790	SCREW WITH CAGE	2
35	10902424	SCREW	4
36	12605374	SHER -Valid till stock exhaustion-	4
36	12601274	SHER -Valid after stock exhaustion of 12605374-	4
37	12647624	SHER	4
38	177770	BRACKET FOR R.H. TANK FIXING	1
38	177771	BRACKET FOR L.H. TANK FIXING	1
39	14664790	SCREW WITH CAGE	4
40	177769	RUBBER THICKNESS	4
41	177768	RUBBER THICKNESS	2
42	177752	RUBBER THICKNESS	2
43	181191	R.H. RUBBER THICKNESS	1
43	181192	L.H. RUBBER THICKNESS	1
44	181377	RUBBER THICKNESS	2
45	177753	R.H. RUBBER THICKNESS	1
45	177763	L.H. RUBBER THICKNESS	1
46	177749	RUBBER THICKNESS	4
47	177748	RUBBER THICKNESS	2
48	159147	RUBBER THICKNESS	2
49	12647624	SHER	2
50	182363	STUD	1
51	10902424	SCREW	2
52	12605374	SHER -Valid till stock exhaustion-	2
52	12601274	SHER -Valid after stock exhaustion of 12605374-	2
53	212275	R.H. BRACKET-Valid till Ass. Nr. 72001-	1
53	231370	R.H. BRACKET -Valid from Ass. Nr. 72002-	1
53	211384	L.H. BRACKET-Valid till Ass. Nr. 72001-	1
53	231369	L.H. BRACKET -Valid from Ass. Nr. 72002-	1
54	10519424	SHER	4
55	12644424	SHER	4
56	102741	NUT	4
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
