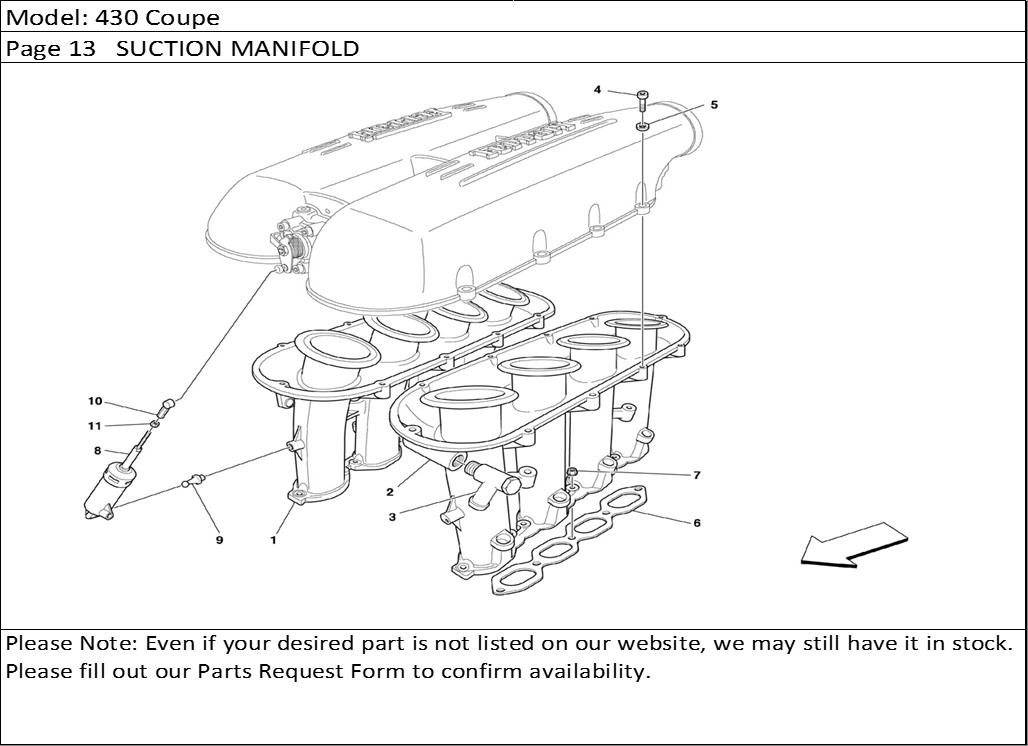

430 Coupe Page 13 SUCTION MANIFOLD
Product Description
430 Coupe Page 13 SUCTION MANIFOLD
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 197755 | R.H. SUCTION MANIFOLD -Valid till engine Nr. 99607- -Valid till M.Y. 06- | 1 |
| 1 | 217791 | R.H. SUCTION MANIFOLD -Valid from engine Nr. 99608- -Valid from M.Y. 06- | 1 |
| 2 | 197756 | L.H. SUCTION MANIFOLD -Valid till engine Nr. 99607- -Valid till M.Y. 06- | 1 |
| 2 | 217792 | L.H. SUCTION MANIFOLD -Valid from engine Nr. 99608- -Valid from M.Y. 06- | 1 |
| 3 | 124342 | UNION | 1 |
| 4 | 14305424 | SCREW -M6x25- | 8 |
| 4 | 14305824 | SCREW -M6x40- | 4 |
| 4 | 14309224 | SCREW -M6x65- | 8 |
| 5 | 11197774 | SHER | 20 |
| 6 | 233974 | GASKET -Valid till engine Nr. 99607- -Valid till M.Y. 06- | 2 |
| 6 | 233974 | GASKET -Valid from engine Nr. 99608- -Valid from M.Y. 06- -Valid till stock exhaustion- | 2 |
| 6 | 233974 | GASKET -Valid from engine Nr. 99608- -Valid from M.Y. 06- -Valid after stock exhaustion of 217793- | 2 |
| 7 | 159601 | NUT | 16 |
| 8 | 173594 | ACTUATOR | 1 |
| 9 | 191230 | PIN | 1 |
| 10 | 184532 | END | 1 |
| 11 | 15896214 | NUT | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
