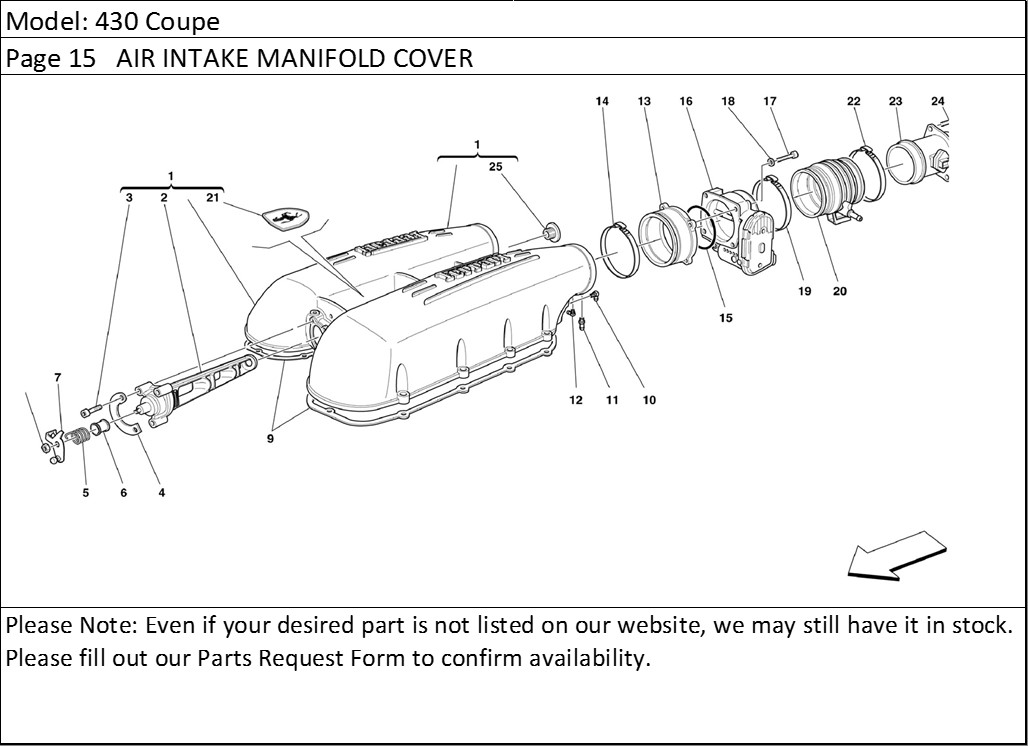

430 Coupe Page 15 AIR INTAKE MANIFOLD COVER
Product Description
430 Coupe Page 15 AIR INTAKE MANIFOLD COVER
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 219461 | SUCTION MANIFOLD COVER -Standard- -Aluminium- -Valid till Ass. Nr. 55078- | 1 |
| 1 | 214959 | SUCTION MANIFOLD COVER -Standard- -Aluminium- -Valid from Ass. Nr. 55079 and valid till engine Nr. 99607- -Valid till M.Y. 06- | 1 |
| 1 | 214959 | SUCTION MANIFOLD COVER -Standard- -Aluminium- -Valid from engine Nr. 99608- -Valid from M.Y. 06- -Not as spare part- -Replaced by 214959- | 1 |
| 1 | 214959 | SUCTION MANIFOLD COVER -Standard- -Aluminium- -Valid from engine Nr. 99608- -Valid from M.Y. 06- | 1 |
| 1 | 219461 | SUCTION MANIFOLD COVER -Optional- -With carbonium aesthetic cover- | 1 |
| 1 | 238253 | SUCTION MANIFOLD COVER -Optional- -Carbon version- | 1 |
| 2 | 215068 | ROLLING DRUM -Valid till engine Nr. 99607- -Valid till M.Y. 06- -Cpl. ball bearing- | 1 |
| 2 | 220668 | ROLLING DRUM -Valid from engine Nr. 99608- -Valid from M.Y. 06- -For die-cast drum- | 1 |
| 3 | 14305624 | SCREW | 3 |
| 4 | 204873 | SAFETY PLATE | 1 |
| 5 | 197761 | SPRING | 1 |
| 6 | 205123 | BUSHING | 1 |
| 7 | 203401 | DRUM CONTROL LEVER -Valid till Ass. Nr. 55078- | 1 |
| 7 | 203401 | DRUM CONTROL LEVER -Valid from Ass. Nr. 55079- | 1 |
| 8 | 177613 | NUT -Valid till engine Nr. 99607- -Valid till M.Y. 06- | 1 |
| 8 | 212945 | NUT -Valid from engine Nr. 99608- -Valid from M.Y. 06- | 1 |
| 9 | 217471 | GASKET -Not as spare part now- -Replaced by 217471- | 2 |
| 9 | 217471 | GASKET | 2 |
| 10 | 174818 | UNION | 2 |
| 11 | 210194 | UNION | 2 |
| 12 | 128016 | UNION | 2 |
| 13 | 195206 | SPACER | 2 |
| 14 | 190151 | CLAMP | 2 |
| 15 | 150302 | O.R. GASKET | 2 |
| 16 | 179912 | THROTTLE HOLDER | 2 |
| 17 | 14305924 | SCREW | 8 |
| 18 | 12639724 | SHER | 8 |
| 19 | 180046 | CLAMP | 2 |
| 20 | 201572 | L.H. SLEEVE -Valid for USA and CDN- | 1 |
| 20 | 205095 | L.H. SLEEVE -Not for USA and CDN- | 1 |
| 20 | 201570 | R.H. SLEEVE -Valid for USA and CDN- | 1 |
| 20 | 205092 | R.H. SLEEVE -Not for USA and CDN- | 1 |
| 21 | 214932 | AESTHETIC SMALL COVER -Standard- -Aluminium- | 1 |
| 21 | 218327 | AESTHETIC SMALL COVER -Optional- -Carbonium- | 1 |
| 22 | 177981 | CLAMP | 2 |
| 23 | 181120 | AIR FLOW METER | 2 |
| 24 | 16285127 | SCREW | 2 |
| 25 | 210157 | PLUG | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
