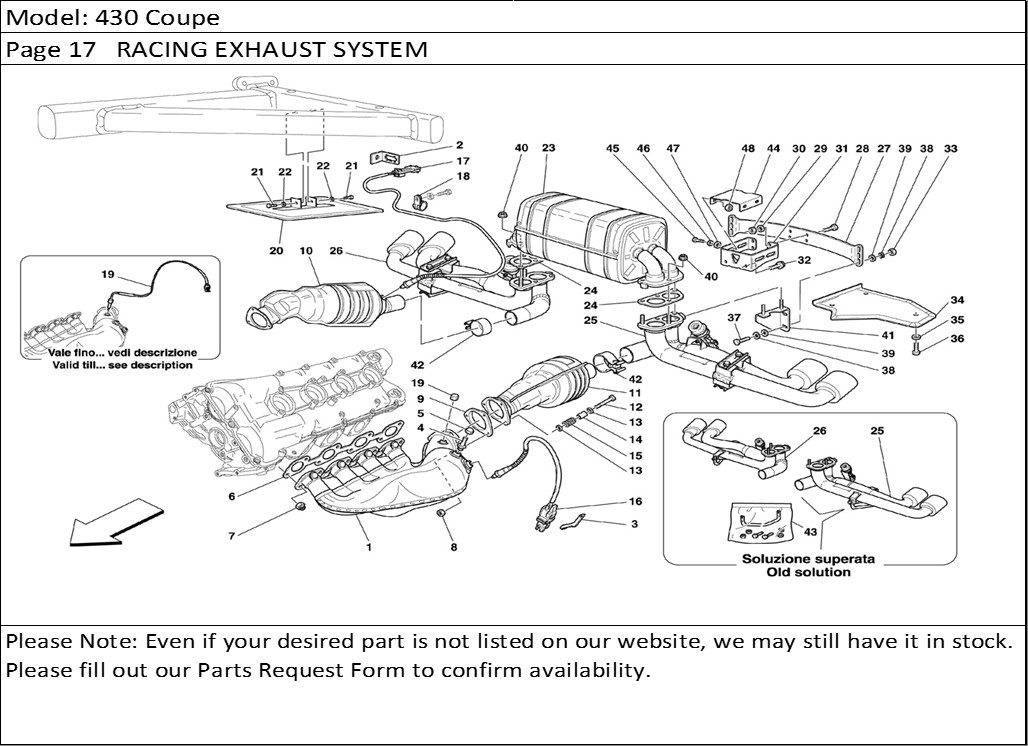

430 Coupe Page 17 RACING EXHAUST SYSTEM
Product Description
430 Coupe Page 17 RACING EXHAUST SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 212631 | L.H. EXHAUST MANIFOLD -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 1 | 70001347 | EXHAUST MANIFOLD PAIR : Replacement Kit | 1 |
| 1 | 247593 | R.H. EXHAUST MANIFOLD -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 1 | 212630 | R.H. EXHAUST MANIFOLD -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 1 | 247594 | L.H. EXHAUST MANIFOLD -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 2 | 178366 | BRACKET FOR CONNECTOR FIXING | 2 |
| 3 | 175856 | BRACKET FOR CONNECTOR FIXING | 2 |
| 4 | 144240 | THREADED UNION | 2 |
| 5 | 150595 | CAP NUT | 2 |
| 6 | 211404 | GASKET | 2 |
| 7 | 210971 | NUT | 16 |
| 8 | 212191 | NUT | 6 |
| 9 | 154985 | GASKET | 2 |
| 10 | 216241 | R.H. CATALYST -Not as spare part now- -Replaced by 216241 - | 1 |
| 10 | 216241 | R.H. CATALYST -Not as spare part for cars not for Cina and Taiwan- -Replaced by 220662- | 1 |
| 10 | 220662 | R.H. CATALYST -Not for Cina and Taiwan- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 10 | 223215 | R.H. CATALYST -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 11 | 223216 | L.H. CATALYST -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 11 | 220663 | L.H. CATALYST -Not for Cina and Taiwan- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 11 | 216242 | L.H. CATALYST -Not as spare part for cars not for Cina and Taiwan- -Replaced by 220663- | 1 |
| 11 | 216242 | L.H. CATALYST -Not as spare part now- -Replaced by 216242- | 1 |
| 12 | 16044524 | SCREW | 6 |
| 13 | 12646778 | SHER | 12 |
| 14 | 114749 | SPACER | 6 |
| 15 | 111743 | SPRING | 6 |
| 16 | 182837 | FRONT LAMBDA FEELER | 2 |
| 17 | 180915 | REAR LAMBDA FEELER | 2 |
| 18 | 10441390 | BRACKET WITH SHEATH | 1 |
| 19 | 200934 | THERMOCOUPLE -Valid till Ass. Nr. 67970 for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 2 |
| 19 | 236195 | PLUG -Valid from Ass. Nr. 67971 for USA and CDN- -Valid from Ass. Nr. 69639 for not USA and CDN- | 2 |
| 20 | 69640100 | L.H. CATALYST SHIELD -Valid after stock exhaustion of 68359600- | 1 |
| 20 | 68359600 | L.H. CATALYST SHIELD -Valid till stock exhaustion- | 1 |
| 20 | 69619900 | R.H. CATALYST SHIELD -Valid after stock exhaustion of 68359500- | 1 |
| 20 | 68359500 | R.H. CATALYST SHIELD -Valid till stock exhaustion- | 1 |
| 21 | 16297024 | SCREW | 4 |
| 22 | 12620474 | SHER | 4 |
| 23 | 231541 | COMPLETE EXHAUST SILENCER -Not as spare part now- -Replaced by 223718- | 1 |
| 23 | 239880 | COMPLETE EXHAUST SILENCER -Not for USA, CDN, J and China- | 1 |
| 23 | 231541 | COMPLETE EXHAUST SILENCER -Valid for USA, CDN, J and China- | 1 |
| 24 | 177612 | GASKET | 2 |
| 25 | 231543 | COMPLETE L.H. OUTLET PIPE -Valid till Ass. Nr. 64273- -Not as spare part now- -Replaced by 216041 - -Replace couple- | 1 |
| 25 | 231543 | COMPLETE L.H. OUTLET PIPE | 1 |
| 25 | 231543 | COMPLETE L.H. OUTLET PIPE -Valid from Ass. Nr. 64274- -Not as spare part- -Replaced by 240829- | 1 |
| 26 | 216040 | COMPLETE R.H. OUTLET PIPE -Valid till Ass. Nr. 64273- -Not as spare part now- -Replaced by | 1 |
| 26 | 231542 | COMPLETE R.H. OUTLET PIPE | 1 |
| 26 | 216040 | COMPLETE R.H. OUTLET PIPE -Valid from Ass. Nr. 64274- -Not as spare part- -Replaced by 240828- | 1 |
| 27 | 195803 | SILENCER SUPPORT EXHAUST SIDE | 1 |
| 28 | 16043324 | SCREW | 4 |
| 29 | 127496 | SHER | 4 |
| 30 | 16100824 | NUT | 4 |
| 31 | 212691 | SILENCER SUPPORT GEAR SIDE -Valid till stock exhaustion- | 1 |
| 31 | 212691 | SI LENCER SUPPORT GEAR SIDE -Valid after stock exhaustion of 181383- | 1 |
| 32 | 16043434 | SCREW | 4 |
| 33 | 16100824 | NUT | 4 |
| 34 | 224389 | L.H. SHIELD -Valid till stock exhaustion- | 1 |
| 34 | 224389 | L.H. SHIELD -Valid after stock exhaustion of 208655- | 1 |
| 34 | 224388 | R.H. SHIELD -Valid till stock exhaustion- | 1 |
| 34 | 224388 | R.H. SHIELD -Valid after stock exhaustion of 208654- | 1 |
| 35 | 12625224 | SHER | 4 |
| 35 | 12643724 | SHER | 2 |
| 36 | 16043324 | SCREW-M8x18- | 4 |
| 36 | 10902324 | SCREW-M6x18- | 2 |
| 37 | 16043534 | SCREW | 4 |
| 38 | 12646778 | SHER | 8 |
| 39 | 127496 | SHER | 8 |
| 40 | 179808 | NUT | 8 |
| 41 | 210892 | R.H. BRACKET | 1 |
| 41 | 210893 | L.H. BRACKET | 1 |
| 42 | 185307 | CLAMP | 2 |
| 43 | 223771 | BRACKET AND FIXINGS KIT FOR EXHAUST PIPE -Not as spare part- | |
| 44 | 221909 | REINFORCEMENT | 1 |
| 45 | 16043324 | SCREW | 4 |
| 46 | 14496521 | SHER -Not as spare part- -Replaced by 12646724- | 4 |
| 46 | 12646724 | SHER | 4 |
| 47 | 12601379 | SHER | 4 |
| 48 | 16100824 | NUT | 4 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
