430 Coupe Page 18 LUBRICATION SYSTEM TANK HEATER EXCH
Product Description
430 Coupe Page 18 LUBRICATION SYSTEM TANK HEATER EXCH
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

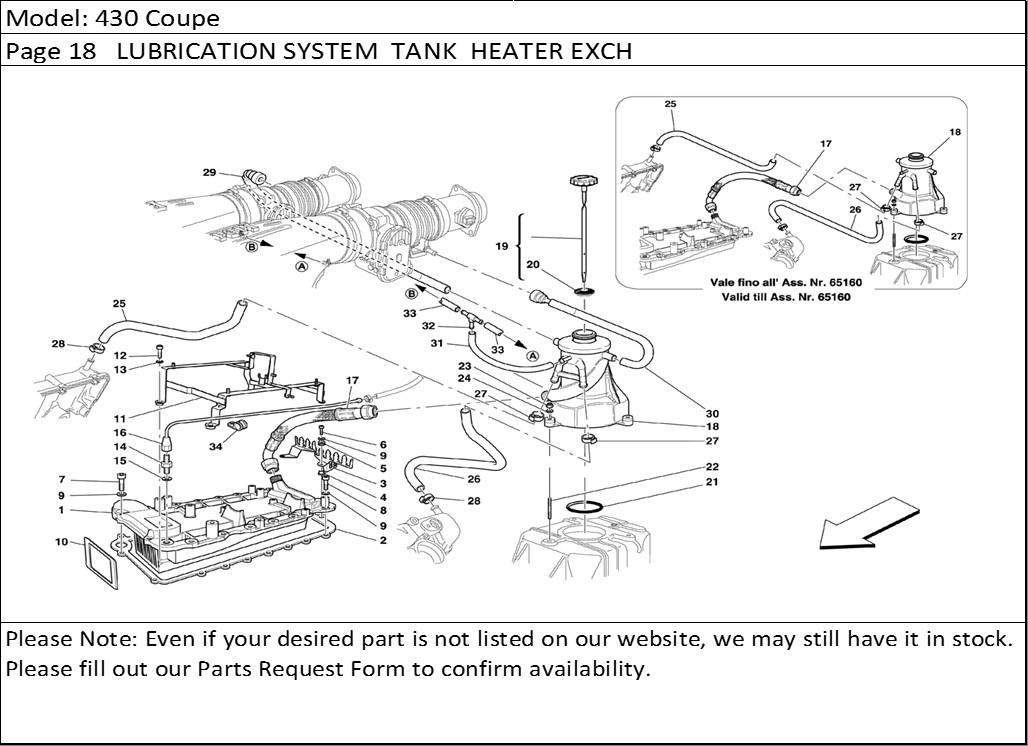

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 197150 | HEAT EXCHANGER | 1 |
| 2 | 174600 | GASKET | 1 |
| 3 | 210388 | CONNECTOR SUPPORTING BRACKET | 1 |
| 4 | 149707 | SPACER | 2 |
| 5 | 177576 | CABLE GROMMET | 2 |
| 6 | 14305624 | SCREW | 2 |
| 7 | 14305524 | SCREW | 2 |
| 8 | 14305424 | SCREW | 15 |
| 9 | 11197774 | SHER | 19 |
| 10 | 185581 | GASKET | 1 |
| 11 | 202251 | BRACKET | 1 |
| 12 | 14305224 | SCREW | 4 |
| 13 | 11197774 | SHER | 4 |
| 14 | 192327 | UNION | 1 |
| 15 | 10284460 | GASKET | 1 |
| 16 | 211844 | VENT PIPE | 1 |
| 17 | 225937 | HOSE FROM ENGINE TO DISAREATOR -Valid from Ass. Nr. 65161- | 1 |
| 17 | 195351 | HOSE FROM ENGINE TO DISAREATOR -Valid till Ass. Nr. 65160- | 1 |
| 18 | 216061 | AIR-OIL SEPARATOR -Not for USA and CDN- -Not as spare part- -Replaced by 216061- | 1 |
| 18 | 216061 | AIR-OIL SEPARATOR -Not for USA and CDN- -Valid till Ass. Nr. 65160- | 1 |
| 18 | 225960 | AIR-OIL SEPARATOR -Not for USA and CDN- -Valid from Ass. Nr. 65161- | 1 |
| 18 | 216066 | AIR-OIL SEPARATOR -Valid for USA and CDN- -Valid till Ass. Nr. 65160- | 1 |
| 18 | 226035 | AIR-OIL SEPARATOR -Valid for USA and CDN- -Valid from Ass. Nr. 65161- | 1 |
| 19 | 212362 | TANK PLUG | 1 |
| 20 | 211634 | GASKET | 1 |
| 21 | 176388 | GASKET | 1 |
| 22 | 13517124 | STUD | 3 |
| 23 | 101139 | NUT | 3 |
| 24 | 12601374 | SHER | 3 |
| 25 | 223220 | VENTR.H. PIPE-Valid from Ass. Nr. 65161- | 1 |
| 25 | 211813 | VENT R.H. PIPE -Valid till Ass. Nr. 65160- | 1 |
| 26 | 211814 | VENT L.H. PIPE -Valid till Ass. Nr. 65160- | 1 |
| 26 | 223221 | VENTL.H. PIPE-Valid from Ass. Nr. 65161- | 1 |
| 27 | 177996 | CLAMP -Valid till Ass. Nr. 65160- | 2 |
| 27 | 178051 | CLAMP -Valid from Ass. Nr. 65161- | 2 |
| 28 | 178051 | CLAMP | 2 |
| 29 | 216063 | INTAKE STEAM R.H. HOPE -Not for USA and CDN- -Not as spare part- -Replaced by 216063- | 1 |
| 29 | 216063 | INTAKE STEAM R.H. HOPE -Not for USA and CDN- | 1 |
| 29 | 216068 | INTAKE STEAM R.H. HOPE -Valid for USA and CDN- | 1 |
| 30 | 216069 | INTAKE STEAM L.H. HOPE -Valid for USA and CDN- | 1 |
| 30 | 216064 | INTAKE STEAM L.H. HOPE -Not for USA and CDN- | 1 |
| 30 | 216064 | INTAKE STEAM L.H. HOPE -Not for USA and CDN- -Not as spare part- -Replaced by 216064- | 1 |
| 31 | 195330 | RUBBER HOSE | 1 |
| 32 | 161816 | AY UNION | 1 |
| 33 | 195331 | RUBBER HOSE | 2 |
| 34 | 10440990 | BRACKET WITH SHEATH | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
