Product Description

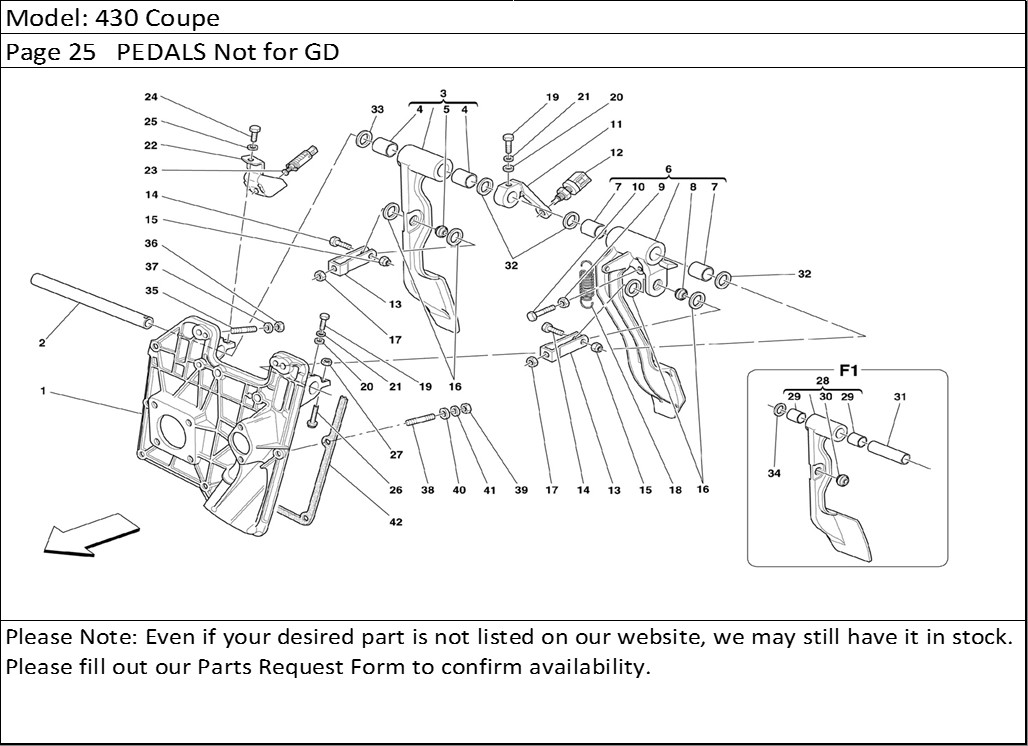

430 Coupe Page 25 PEDALS Not for GD

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	176464	PEDALS SUPPORT	1
2	176466	PEDALS SUPPORT PIN	1
3	180558	COMPLETE BRAKE PEDAL -Not for F1-	1
4	103163	SELF-LUBRICATING BUSHING -Not for F1-	2
5	176475	BALL JOINT -Not for F1-	1
6	180559	COMPLETE CLUTCH PEDAL -Not for F1 -	1
7	103163	SELF-LUBRICATING BUSHING -Not for F1-	2
8	176475	BALL JOINT-Not for F1-	1
9	16102314	NUT -Not for F1-	1
10	187014	PEDAL ADJUSTEMENT PIN -Not for F1-	1
11	180516	CENTRAL BRACKET -Not for F1-	1
12	133555	PUSH-BUTTON SWITCH -Not for F1-	1
13	199754	FORK -Q.ty 1 for F1- -Optional- -CCM version-	2
13	176471	FORK -Q.ty 1 for F1 - -Standard-	2
14	16043724	SCREW-Q.ty1 forF1-	2
15	147985	NUT-Q.ty 1 forF1-	2
16	176522	PLASTIC WASHER -Q.ty 2 for F1 -	4
17	16102314	NUT-Q.ty 1 forF1-	2
18	101305	RETUTN SPRING FOR PEDAL -Not for F1-	1
19	10902424	SCREW	1
20	10519424	SHER	2
21	127494	SHER	1
22	183818	ITCH SUPPORT -Not as spare part now- -Replaced by 218606-	1
22	218606	ITCH SUPPORT -Not as spare part- -Replaced by 219558-	1
22	219558	ITCH SUPPORT	1
23	201957	PUSH-BUTTON SWITCH -Valid for support 219558 Ref. 22-	1
23	183433	PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22-	1
24	16043224	SCREW	1
25	106852	SHER	1
26	187014	PEDAL ADJUSTEMENT PIN -Notfor F1-	1
27	16102314	NUT-Not for F1-	1
28	180560	COMPLETE BRAKE PEDAL -Valid for F1 -	1
29	103163	SELF-LUBRICATING BUSHING -Valid for F1-	2
30	176475	BALL JOINT-Valid for F1-	1
31	176918	SPACER-Valid for F1-	1
32	113836	SHER -Not for F1-	3
33	113836	SPACER WASHER -Th. 1,4mm- -Possible fitting- -Not for F1 -	1
33	113835	SPACER WASHER -Th. 1,3mm- -Possible fitting- -Not for F1 -	1
33	113834	SPACER WASHER -Th. 1,2mm- -Possible fitting- -Not for F1 -	1
33	113833	SPACER WASHER -Th. 1,1 mm- -Possible fitting- -Not for F1 -	1
33	106083	SPACER WASHER -Th. 1 mm- -Not for F1 -	1
34	178340	SPACER WASHER -Valid for F1 -	1
34	113834	SPACER WASHER -Th. 1,2mm- -Possible fitting- -Valid for F1 -	1
34	113835	SPACER WASHER -Th. 1,3mm- -Possible fitting- -Valid for F1 -	1
34	113836	SPACER WASHER -Th. 1,4mm- -Possible fitting- -Valid for F1 -	1
35	13516924	STUD	6
36	104030	NUT	6
37	12638524	SHER	6
38	13517024	STUD	2
39	16102377	NUT	2
40	13550321	SHER	2
41	12601374	SHER	2
42	176524	PEDALS SUPPORT GASKET	1
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
