430 Coupe Page 26 PEDALSValid for GD
Product Description
430 Coupe Page 26 PEDALSValid for GD
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

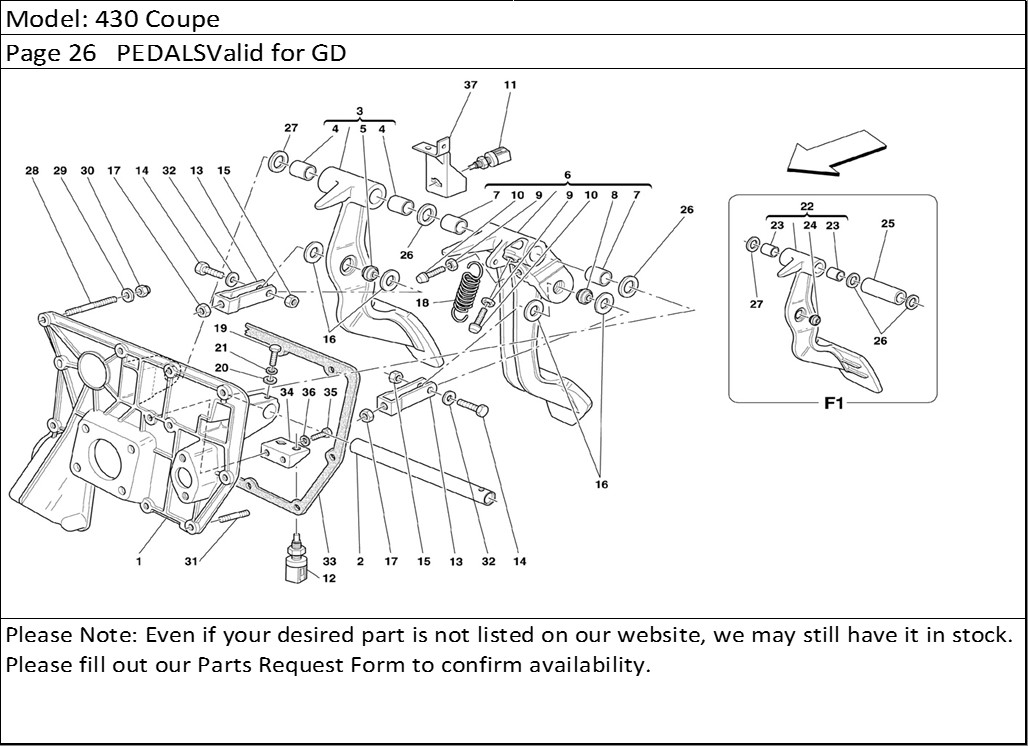

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 214215 | PEDALS SUPPORT | 1 |
| 2 | 177120 | PEDALS SUPPORT PIN | 1 |
| 3 | 177118 | COMPLETE BRAKE PEDAL -Not for F1- | 1 |
| 4 | 103163 | SELF-LUBRICATING BUSHING -Not for F1- | 2 |
| 5 | 176475 | BALL JOINT -Not for F1- | 1 |
| 6 | 177119 | COMPLETE CLUTCH PEDAL -Not for F1 - | 1 |
| 7 | 103163 | SELF-LUBRICATING BUSHING -Not for F1- | 2 |
| 8 | 176475 | BALL JOINT-Not for F1- | 1 |
| 9 | 16102314 | NUT -Not for F1- | 2 |
| 10 | 187014 | PEDAL ADJUSTEMENT PIN -Not for F1- | 2 |
| 11 | 201957 | PUSH-BUTTON SWITCH -Valid for support 219558 Ref .37- | 1 |
| 11 | 183433 | PUSH-BUTTON SWITCH -Valid for support 218606 Ref .37- | 1 |
| 12 | 133555 | PUSH-BUTTON SWITCH -Not for F1- | 1 |
| 13 | 176471 | FORK -Q.ty 1 for F1 - -Standard- | 2 |
| 13 | 199754 | FORK -Q.ty 1 for F1- -Optional- -CCM version- | 2 |
| 14 | 16043724 | SCREW-Q.ty1 forF1- | 2 |
| 15 | 147985 | NUT-Q.ty 1 forF1- | 2 |
| 16 | 176522 | PLASTIC WASHER -Q.ty 2 for F1 - | 4 |
| 17 | 16102314 | NUT-Q.ty 1 forF1- | 2 |
| 18 | 101305 | RETUTN SPRING FOR PEDAL -Not for F1- | 1 |
| 19 | 10902424 | SCREW | 1 |
| 20 | 10519424 | SHER | 1 |
| 21 | 127494 | SHER | 1 |
| 22 | 178511 | COMPLETE BRAKE PEDAL -Valid for F1 - | 1 |
| 23 | 103163 | SELF-LUBRICATING BUSHING -Valid for F1- | 2 |
| 24 | 176475 | BALL JOINT-Valid for F1- | 1 |
| 25 | 178496 | SPACER -Valid for F1- | 1 |
| 26 | 113836 | SHER | 2 |
| 27 | 113835 | SPACER WASHER -Th. 1,3mm- -Possible fitting- | 1 |
| 27 | 113834 | SPACER WASHER -Th. 1,2mm- -Possible fitting- | 1 |
| 27 | 113833 | SPACER WASHER -Th. 1,1 mm- -Possible fitting- | 1 |
| 27 | 106083 | SPACER WASHER -Th. 1mm- | 1 |
| 27 | 113836 | SPACER WASHER -Th. 1,4mm- -Possible fitting- | 1 |
| 28 | 13517524 | STUD | 2 |
| 29 | 12638524 | SHER | 11 |
| 30 | 104030 | NUT | 11 |
| 31 | 13516924 | STUD | 9 |
| 32 | 12601374 | SHER | 2 |
| 33 | 177131 | PEDALS SUPPORT GASKET | 1 |
| 34 | 186401 | SMALL PLATE | 1 |
| 35 | 16043224 | SCREW | 2 |
| 36 | 106852 | SHER | 2 |
| 37 | 218766 | ITCH SUPPORT -Not as spare part- -Replaced by 219557- | 1 |
| 37 | 219557 | ITCH SUPPORT | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
