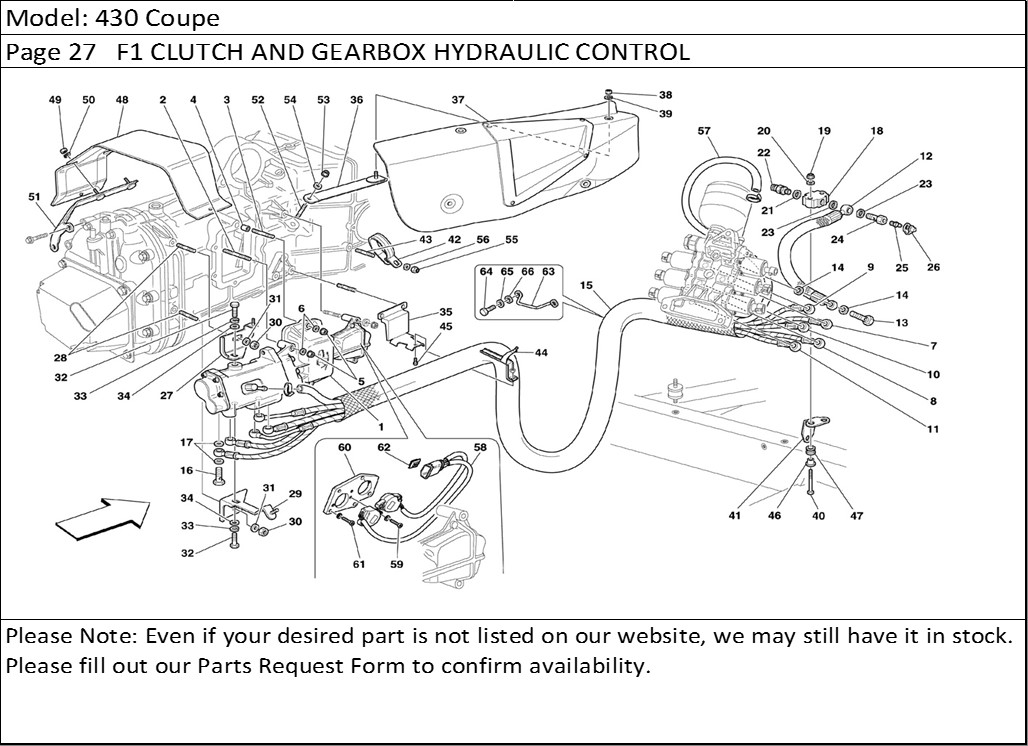

430 Coupe Page 27 F1 CLUTCH AND GEARBOX HYDRAULIC CONTROL
Product Description
430 Coupe Page 27 F1 CLUTCH AND GEARBOX HYDRAULIC CONTROL
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 0 | 232406 | F1 GEARBOX SYSTEM COMPONENTS KIT -Valid for F1- -Valid till car Ass. Nr. 61588- | 1 |
| 0 | 232406 | F1 GEARBOX SYSTEM COMPONENTS KIT -Valid for F1- -Valid from car Ass. Nr. 61589- -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232406- | 1 |
| 0 | 232406 | F1 GEARBOX SYSTEM COMPONENTS KIT -Valid for F1- -Valid from car Ass. Nr. 61589- -Valid from Ass. Nr. 69347- -Replaces 218562- | 1 |
| 1 | 220244 | COMPLETE HYDRAULIC ACTUATOR | 1 |
| 2 | 11501024 | STUD | 4 |
| 3 | 11500724 | STUD | 2 |
| 4 | 103038 | CENTERING DOWEL | 2 |
| 5 | 16100814 | NUT | 2 |
| 6 | 127496 | SHER | 2 |
| 7 | 248096 | PIPE (EV1) -Valid from Ass. Nr. 69347- -Replaces 179340- | 1 |
| 7 | 179340 | PIPE (EV1) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232407- | 1 |
| 8 | 179342 | PIPE (EV2) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232408- | 1 |
| 8 | 248097 | PIPE (EV2) -Valid from Ass. Nr. 69347- -Replaces 179342- | 1 |
| 9 | 179343 | PIPE (EV3) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232409- | 1 |
| 9 | 232409 | PIPE (EV3) -Valid from Ass. Nr. 69347- -Replaces 179343- | 1 |
| 10 | 179344 | PIPE (EV4) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232410- | 1 |
| 10 | 232410 | PIPE (EV4) -Valid from Ass. Nr. 69347- -Replaces 179344- | 1 |
| 11 | 179345 | PIPE (EV5) -Valid till Ass. Nr. 69346--Not as spare part--Replaced by 232411- | 1 |
| 11 | 232411 | PIPE (EV5) -Valid from Ass. Nr. 69347- -Replaces 179345- | 1 |
| 12 | 208395 | PIPE FROM PUMP TO BLOCK | 1 |
| 13 | 171454 | UNION -EV1, EV2, clutch- | 3 |
| 13 | 204545 | UNION -EV3, EV4, EV5- | 3 |
| 14 | 10261060 | GASKET | 12 |
| 15 | 179346 | PROTECTION SHEATH | 1 |
| 16 | 171454 | UNION -EV1,EV2- | 2 |
| 16 | 204543 | UNION -EV3, EV4, EV5- | 3 |
| 17 | 10261060 | GASKET | 10 |
| 18 | 175667 | BLOCK | 1 |
| 19 | 15896214 | NUT | 2 |
| 20 | 12601279 | SHER | 2 |
| 21 | 171755 | SHER | 1 |
| 22 | 210468 | QUICK MALE COUPLING | 1 |
| 23 | 10261060 | GASKET | 2 |
| 24 | 171630 | UNION | 1 |
| 25 | 152954 | BLEEDER SCREW | 1 |
| 26 | 152955 | PROTECTION BOOT | 1 |
| 27 | 174257 | UPPER ACTUATOR SUPPORT BRACKET | 1 |
| 28 | 13516424 | STUD | 2 |
| 29 | 248092 | ER ACTUATOR SUPPORT BRACKET | 1 |
| 30 | 16100814 | NUT | 2 |
| 31 | 127496 | SHER | 2 |
| 32 | 16043124 | SCREW | 2 |
| 33 | 127496 | SHER | 2 |
| 34 | 10519624 | SHER | 2 |
| 35 | 208101 | PIPES SUPPORTING BRACKET | 1 |
| 36 | 242669 | SHIELD SUPPORTING BRACKET | 1 |
| 37 | 220681 | SHIELD FOR ACTUATOR PROTECTION -Not as spare part now- -Replaced by 220681- | 1 |
| 37 | 220681 | SHIELD FOR ACTUATOR PROTECTION | 1 |
| 38 | 160472 | NUT | 4 |
| 39 | 12637824 | SHER | 4 |
| 40 | 10903224 | SCREW | 2 |
| 41 | 186685 | BLOCK SUPPORT BRACKET | 1 |
| 42 | 124034 | BRACKET WITH SHEATH | 1 |
| 43 | 13540724 | STUD | 1 |
| 44 | 208103 | BRACKET | 1 |
| 45 | 16043124 | SCREW | 1 |
| 46 | 149707 | SPACER | 2 |
| 47 | 177576 | CABLE GROMMET | 2 |
| 48 | 208622 | SENSOR PROTECTION SHIELD | 1 |
| 49 | 160472 | NUT | 2 |
| 50 | 12637824 | SHER | 2 |
| 51 | 180745 | SHIELD SUPPORTING BRACKET | 1 |
| 52 | 13516424 | STUD | 1 |
| 53 | 177778 | NUT | 1 |
| 54 | 12638524 | SHER | 2 |
| 55 | 102741 | NUT | 1 |
| 56 | 12643724 | SHER | 1 |
| 57 | 180965 | OIL RECYCLE PIPE | 1 |
| 58 | 248095 | POTENTIOMETERS KIT | 1 |
| 59 | 192865 | SCREW | 4 |
| 60 | 222502 | POTENTIOMETERS FLANGE | 1 |
| 61 | 192866 | SCREW | 4 |
| 62 | 213472 | CLIP | 1 |
| 63 | 208842 | BRACKET | 1 |
| 64 | 10902424 | SCREW | 2 |
| 65 | 127494 | SHER | 2 |
| 66 | 12643724 | SHER | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
