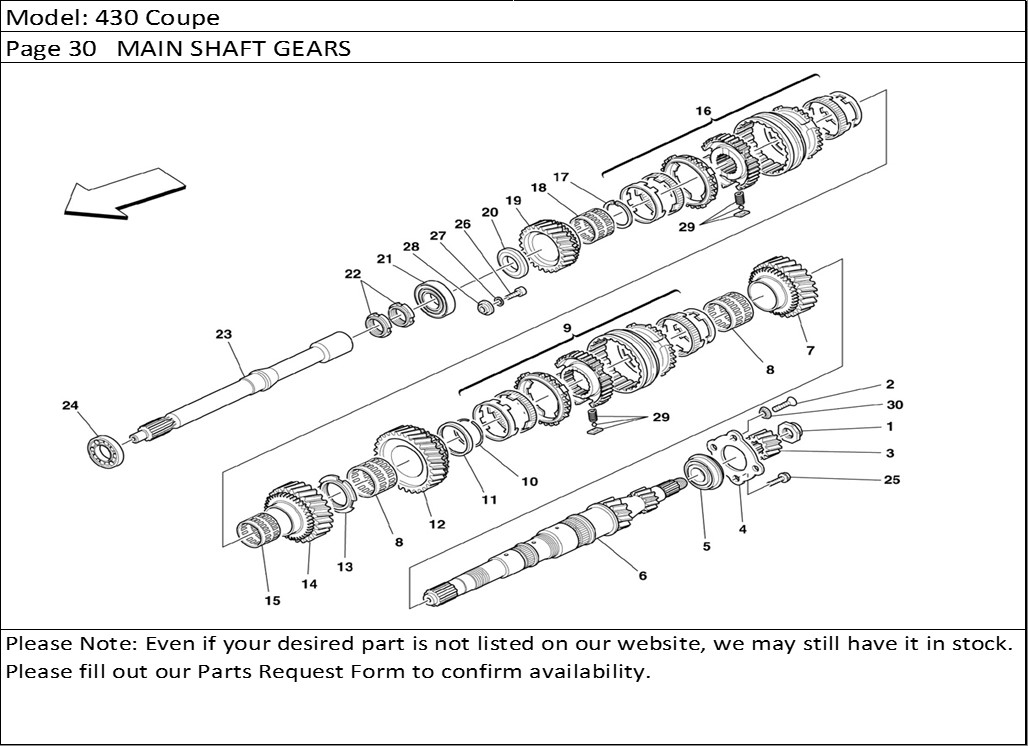

430 Coupe Page 30 MAIN SHAFT GEARS
Product Description
430 Coupe Page 30 MAIN SHAFT GEARS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 183967 | RING NUT | 1 |
| 2 | 14442027 | SCREW | 2 |
| 3 | 209282 | REVERSE DRIVING GEAR | 1 |
| 4 | 183984 | REAR PLATE | 1 |
| 5 | 184019 | BALLBEARING | 1 |
| 6 | 209280 | MAIN SHAFT | 1 |
| 7 | 183949 | PINION FOR 5th GEAR | 1 |
| 8 | 184015 | ROLLER CAGE | 2 |
| 9 | 185166 | 5th AND 6th GEAR COMPLETE SYNCHRONIZER | 1 |
| 10 | 184011 | FLEXIBLE RING | 1 |
| 11 | 183970 | SPACER FOR PINION FOR 6th GEAR | 1 |
| 12 | 198601 | PINION FOR 6th GEAR | 1 |
| 13 | 184010 | RING | 1 |
| 14 | 183947 | PINION FOR 3rd GEAR | 1 |
| 15 | 184014 | ROLLER CAGE | 1 |
| 16 | 185165 | 3rd AND 4th GEAR COMPLETE SYNCHRONIZER | 1 |
| 17 | 184042 | FLEXIBLE RING | 1 |
| 18 | 184005 | ROLLER CAGE | 1 |
| 19 | 183948 | PINION FOR 4th GEAR | 1 |
| 20 | 183973 | SHER | 1 |
| 21 | 184021 | ROLLER BEARING | 1 |
| 22 | 184012 | RING NUT | 2 |
| 23 | 209281 | CLUTCH SHAFT | 1 |
| 24 | 184013 | BALLBEARING | 1 |
| 25 | 16287124 | SCREW | 2 |
| 26 | 14305724 | SCREW | 1 |
| 27 | 10569274 | SHER | 1 |
| 28 | 183985 | BUSHING | 1 |
| 29 | 188320 | PAD FOR SYNCHRONIZER/BALL/SPRING REPLACEMENT KIT | 2 |
| 30 | 12606979 | SHER | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
