Home > 430 Coupe Page 31 LAY SHAFT GEARS

430 Coupe Page 31 LAY SHAFT GEARS

Product Description

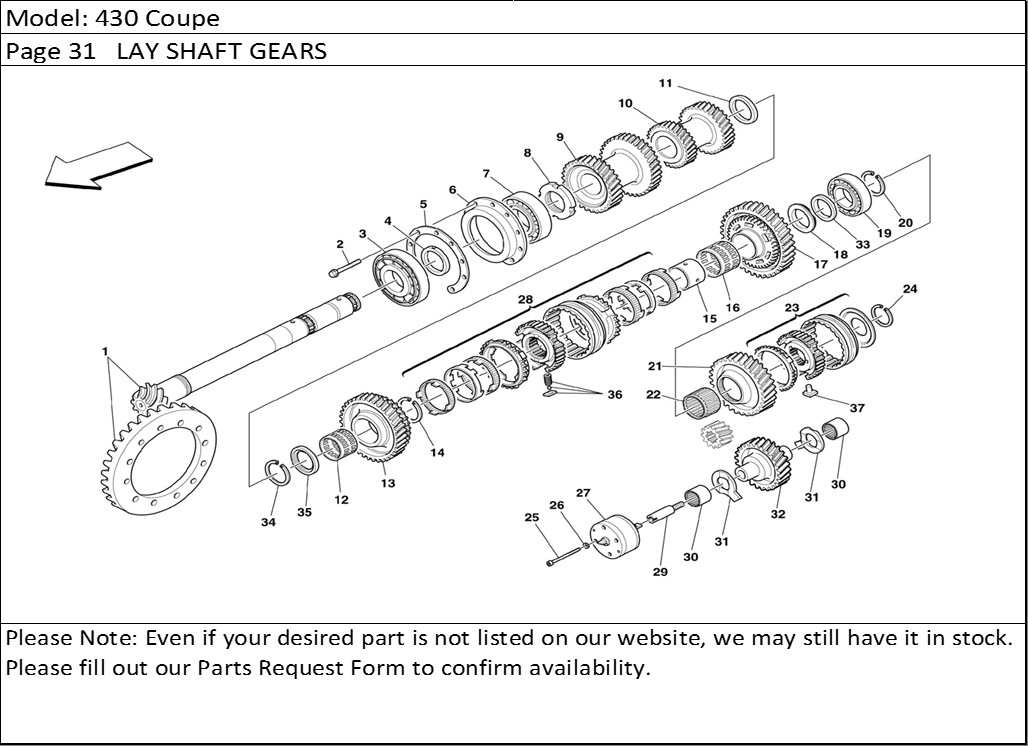

430 Coupe Page 31 LAY SHAFT GEARS

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	197811	COMPETE BEVEL SET -Not for Taiwan-	1
1	218502	COMPETE BEVEL SET -Valid for Taiwan-	1
2	16287730	SCREW	7
3	185022	ROLLER BEARING	1
4	185028	REGISTER RING -Thickness mm. 6,0- -Possible fitting-	1
4	185027	REGISTER RING -Thickness mm. 6,4- -Possible fitting-	1
4	185045	REGISTER RING -Thickness mm. 7,10-	1
5	185042	REGISTER RING -Thickness mm. 2,8-	1
5	185043	REGISTER RING -Thickness mm. 2,5- -Possible fitting-	1
5	185044	REGISTER RING -Thickness mm. 2,2- -Possible fitting-	1
6	185020	BEARING SUPPORT	1
7	185021	ROLLER BEARING	1
8	196667	RING NUT	1
9	185018	3rd AND 4th DRIVEN GEAR	1
10	198620	5th AND 6th DRIVEN GEAR	1
11	188497	SPACER	1
12	184014	ROLLER CAGE	1
13	183946	PINION FOR 2nd GEAR	1
14	183976	FLEXIBLE RING -Thickness mm. 2,10-	1
14	185036	FLEXIBLE RING -Thickness mm. 1,85- -Possible fitting-	1
14	185037	FLEXIBLE RING -Thickness mm. 1,60- -Possible fitting-	1
15	183971	BUSHING	1
16	184016	ROLLER CAGE	1
17	183945	PINION FOR 1st GEAR	1
18	183972	RING -Thickness mm. 5,10-	1
19	184020	ROLLER BEARING	1
20	184042	FLEXIBLE RING	1
21	199752	REVERSE GEAR	1
22	184018	ROLLER CAGE	1
23	193439	REVERSE GEAR COMPLETE SYNCHRONIZER	1
24	184041	FLEXIBLE RING	1
25	14302424	SCREW	4
26	10571379	SHER	4
27	185049	BEARBOX OIL PUMP -Not as spare part now- -Replaced by 216271 -	1
27	216271	BEARBOX OIL PUMP	1
28	185164	1st AND 2nd GEAR COMPLETE SYNCHRONIZER	1
29	185050	PIN	1
30	184017	ROLLER CASING	2
31	183975	RING	2
32	199737	IDLE GEAR FOR REVERSE	1
33	200924	SPACER	1
34	183976	FLEXIBLE RING	1
35	203800	RING	1
35	203801	RING -As an alternative-	1
36	188320	PAD FOR SYNCHRONIZER/BALL/SPRING REPLACEMENT KIT	1
37	193440	PADS/SYNCHRO REVERSE GEAR KIT	1
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
