Home > 430 Coupe Page 33 OUTSIDE GEARBOX CONTROLS

430 Coupe Page 33 OUTSIDE GEARBOX CONTROLS

Product Description

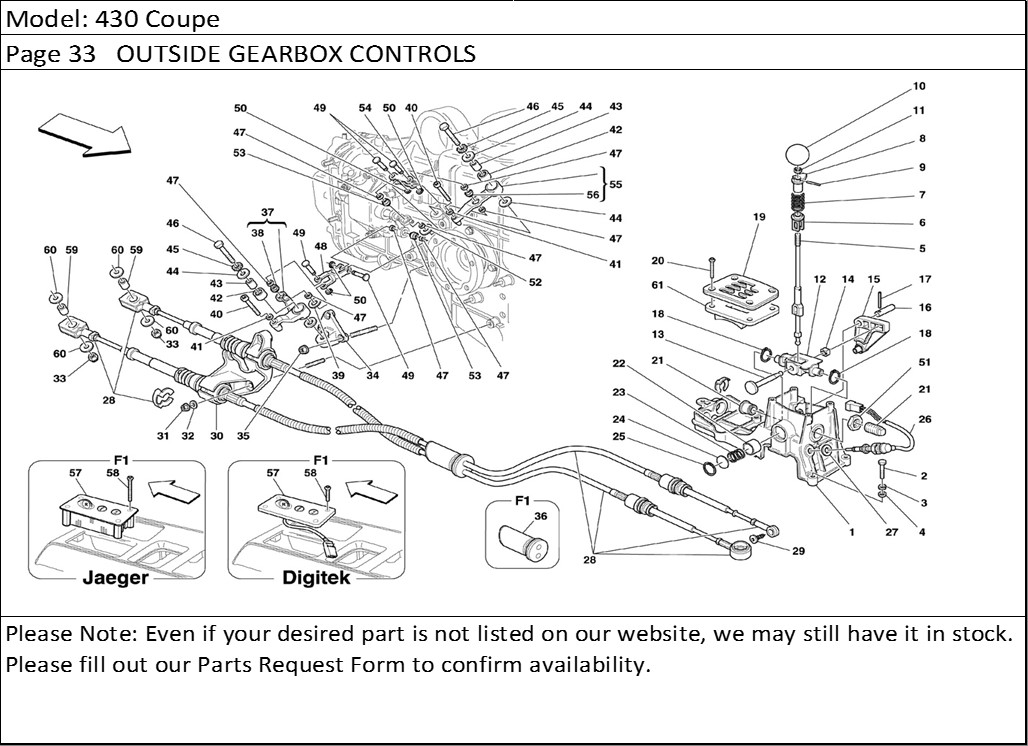

430 Coupe Page 33 OUTSIDE GEARBOX CONTROLS

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	181751	GEARBOX CONTROL -Not for F1 -	1
2	16044024	SCREW-Not for F1-	4
3	12601374	WASHER-Not for F1-	4
4	14496524	WASHER -Not for F1-	4
5	180936	GEARBOX CONTROL LEVER -Not for F1 -	1
6	174967	BUSHING-Not for F1- Revised Hill Engineering	1
7	159137	SPRING -Not for F1-	1
8	199070	BUSHING-NotforF1-	1
9	13896070	PIN-NotforF1-	1
10	223130	KNOB -Not for F1 - -Carbon Version-	1
10	160480	KNOB -Not for F1 - -Standard Version-	1
11	108010	COUNTERNUT-NotforF1-	1
12	176626	FULCRUM-NotforF1-	1
13	176425	PIN-NotforF1-	1
14	172934	SMALL BLOCK -Not for F1 -	1
15	176642	LEVER -Not for F1 -	1
16	176419	PIN-NotforF1-	1
17	14160570	PIN-NotforF1-	1
18	172918	SAFETY RING -Not for F1-	2
19	220439	GEAR SELECTOR -Not for F1 - -For Carbon knob version-	1
19	179844	GEAR SELECTOR -Not for F1 - -Standard Version-	1
20	159357	SCREW-NotforF1-	4
21	181752	REAR BUSHING -Not for F1-	1
21	181753	FRONT BUSHING -Not for F1-	1
22	177029	PIN-NotforF1-	1
23	177027	SIDE SPRING -Not for F1-	1
24	177028	SPRING RETAINING DISC -Not for F1-	1
25	11058976	FLEXIBLE RING -Not for F1-	1
26	115980	PUSH-BUTTON SWITCH -Not for F1-	1
27	12601574	SHER-NotforF1-	1
28	182268	COMPLETE GEARBOX CONTROL CABLES -Not for F1 - -Valid till car Ass. Nr. 58224-	1
28	180701	COMPLETE GEARBOX CONTROL CABLES -Not for F1 - -Valid from car Ass. Nr. 58225-	1
29	14567187	BUTTON-NotforF1-	1
30	177812	BRACKET FOR CABLE FIXING -Not for F1-	1
31	194031	NUT-NotforF1-	3
32	14496424	SHER-NotforF1-	3
33	14048115	NUT-NotforF1-	2
34	202619	SUPPORT FOR LEVERAGE -Not for F1-	1
35	14059911	NUT-NotforF1-	3
36	180127	CLOSING HOLE PAD -Valid for F1-	1
37	186369	LEVER -Not for F1 - -Not as spare part- -Replaced by 178840-	1
37	178840	LEVER-NotforF1-	1
38	109407	BALL JOINT-Not for F1-	1
39	178423	THICKNESS -Not for F1-	1
40	14305824	SCREW-Not for F1-	2
41	14499324	WASHER -Not for F1-	2
42	171677	ROLLER BEARING -Not for F1-	2
43	174984	BUSHING-NotforF1-	2
44	171671	SHER-NotforF1-	4
45	12601374	SHER -Not for F1 - -Not as spare part- -Replaced by 12601374-	2
45	12601374	SHER-NotforF1-	2
46	16044024	SCREW-NotforF1-	2
47	171673	SPACER-NotforF1-	8
48	174911	FORK-NotforF1-	1
49	174974	PIN-NotforF1-	4
50	11065674	SEEGER RING-Not for F1-	4
51	182391	NUT-Not for F1-	1
52	178423	THICKNESS-Not for F1-	1
53	109407	BALL JOINT-Not for F1-	2
54	174912	FORK -Not for F1-	1
55	186371	LEVER -Not for F1 - -Not as spare part- -Replaced by 178932-	1
55	178932	LEVER-NotforF1-	1
56	109407	BALL JOINT -Not for F1-	1
57	81699300	F1 GEARBOX CONTROL DASHBOARD -Digitek- -Valid for F1- -Valid for GD- -Valid from Ass. Nr. 66454 (car Nr. 149225)- -Replaces Jaeger dashboard-	1
57	81699300	F1 GEARBOX CONTROL DASHBOARD -Jaeger- -Valid for F1- -Valid for GD- -Valid till Ass. Nr. 66453 (car Nr. 149224)- -Not as spare part- -Replaced by 69939300-	1
57	81699600	F1 GEARBOX CONTROL DASHBOARD -Digitek- -Valid for F1- -Valid for USA and CDN- -Valid from Ass. Nr. 66454 (car Nr. 149225)- -Replaces Jaeger dashboard-	1
57	209384	F1 GEARBOX CONTROL DASHBOARD -Jaeger- -Valid for F1- -Valid for USA and CDN- -Valid till Ass. Nr. 66453 (car Nr. 149224)- -Not as spare part- -Replaced by 69934800-	1
57	81699200	F1 GEARBOX CONTROL DASHBOARD -Digitek- -Valid for F1 - -Not for USA, CDN and GD- -Valid from Ass. Nr. 66454 (car Nr. 149225)- -Replaces Jaeger dashboard-	1
57	81699200	F1 GEARBOX CONTROL DASHBOARD -Jaeger- -Valid for F1 - -Not for USA, CDN and GD- -Valid till Ass. Nr. 66453 (car Nr. 149224)- -Not as spare part- -Replaced by 69928100-	1
58	209152	SCREW M 5x22 -Valid for F1- -Valid for dashboard Digitek rif. 57-	4
58	69928200	SCREW M 5x22 -Valid for F1- -Valid for dashboard Digitek rif. 57- -Not as spare part- -Replaced by 209152-	4
58	68123900	SCREW M 5x60 -Valid for F1 - -Valid for dashboard Jaeger rif. 57-	4
58	65404500	SCREW -Valid for F1- -Not as spare part now- -Replaced by 68123900-	4
59	182237	BUSHING -Not for F1 - -Valid till car Ass. Nr. 58224-	2
60	12643724	SHER-NotforF1-	4
61	219570	SPACER -Not for F1 - -Not as spare part now- -Replaced by 219570-	1
61	219570	SPACER-NotforF1-	1
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
