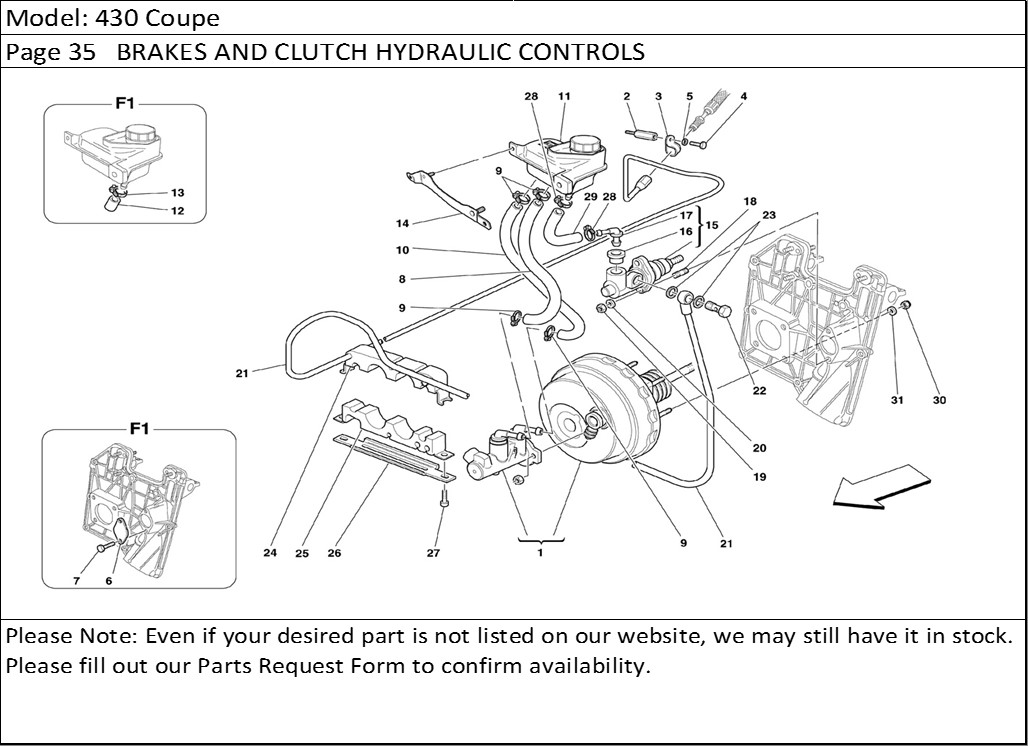

430 Coupe Page 35 BRAKES AND CLUTCH HYDRAULIC CONTROLS
Product Description
430 Coupe Page 35 BRAKES AND CLUTCH HYDRAULIC CONTROLS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 191087 | COMPLETE BRAKE BOOSTER | 1 |
| 1 | 198634 | COMPLETE BRAKE BOOSTER -CCM version - -Optional- | 1 |
| 2 | 178772 | STUD-NotforF1- | 1 |
| 3 | 10441390 | BRACKET WITH SHEATH -Not for F1 - | 2 |
| 4 | 10902224 | SCREW-Not for F1- | 1 |
| 5 | 127494 | WASHER-Not for F1- | 1 |
| 6 | 174177 | FLANGE-Valid for F1- | 1 |
| 7 | 16043021 | SCREW -Valid for F1- | 2 |
| 8 | 219142 | PIPE FROM FRONT UNION TO TANK -CCM version- -Optional- -Valid for GD- | 1 |
| 8 | 219140 | PIPE FROM FRONT UNION TO TANK -Standard version- -Valid for GD- | 1 |
| 8 | 182244 | PIPE FROM FRONT UNION TO TANK -Standard version- -Valid for GD- -Not as spare part now- -Replaced by 219140- | 1 |
| 8 | 154011 | PIPE FROM FRONT UNION TO TANK -Not for GD- | 1 |
| 9 | 13000190 | SCREW COLLAR | 4 |
| 10 | 219141 | PIPE FROM REAR UNION TO TANK -CCM version- -Optional- -Valid for GD- | 1 |
| 10 | 219139 | PIPE FROM REAR UNION TO TANK -Standard version- -Valid for GD- | 1 |
| 10 | 105857 | PIPE FROM REAR UNION TO TANK -Standard version- -Valid for GD- | 1 |
| 10 | 194598 | PIPE FROM REAR UNION TO TANK -Not for GD- | 1 |
| 11 | 203903 | COMPLETE BRAKE OIL TANK | 1 |
| 12 | 136379 | PLUG-Valid for F1- | 1 |
| 13 | 13000190 | SCREW COLLAR -Valid for F1- | 1 |
| 14 | 210758 | BRACKET -Valid for GD- | 1 |
| 14 | 195352 | BRACKET-NotforGD- | 1 |
| 15 | 180841 | CLUTCH PUMP-Not for F1- | 1 |
| 16 | 175189 | SEAL RING-Not for F1- | 1 |
| 17 | 184497 | UNION-Not for F1- | 1 |
| 18 | 13517024 | STUD-NotforF1- | 2 |
| 19 | 104030 | NUT-NotforF1- | 2 |
| 20 | 12601374 | SHER-NotforF1- | 2 |
| 21 | 202550 | PIPE FROM PUMP TO REAR UNION -Not for F1--Not for GD- | 1 |
| 21 | 219887 | PIPE FROM PUMP TO REAR UNION -Not for F1--Valid for GD- | 1 |
| 22 | 180042 | UNION-NotforF1- | 1 |
| 23 | 10298460 | GASKET-NotforF1- | 2 |
| 24 | 201028 | UPPERSUPPORT | 3 |
| 25 | 201029 | ER SUPPORT | 3 |
| 26 | 211683 | SMALL PLATE | 3 |
| 27 | 64830600 | SCREW | 6 |
| 28 | 13000190 | SCREW COLLAR -Not for F1 - | 2 |
| 29 | 134903 | RUBBER HOSE -Not for F1 - -Not for GD- | 1 |
| 29 | 212291 | RUBBER HOSE -Not for F1 - -Valid for GD- | 1 |
| 30 | 104030 | NUT | 4 |
| 31 | 12601374 | SHER | 4 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
