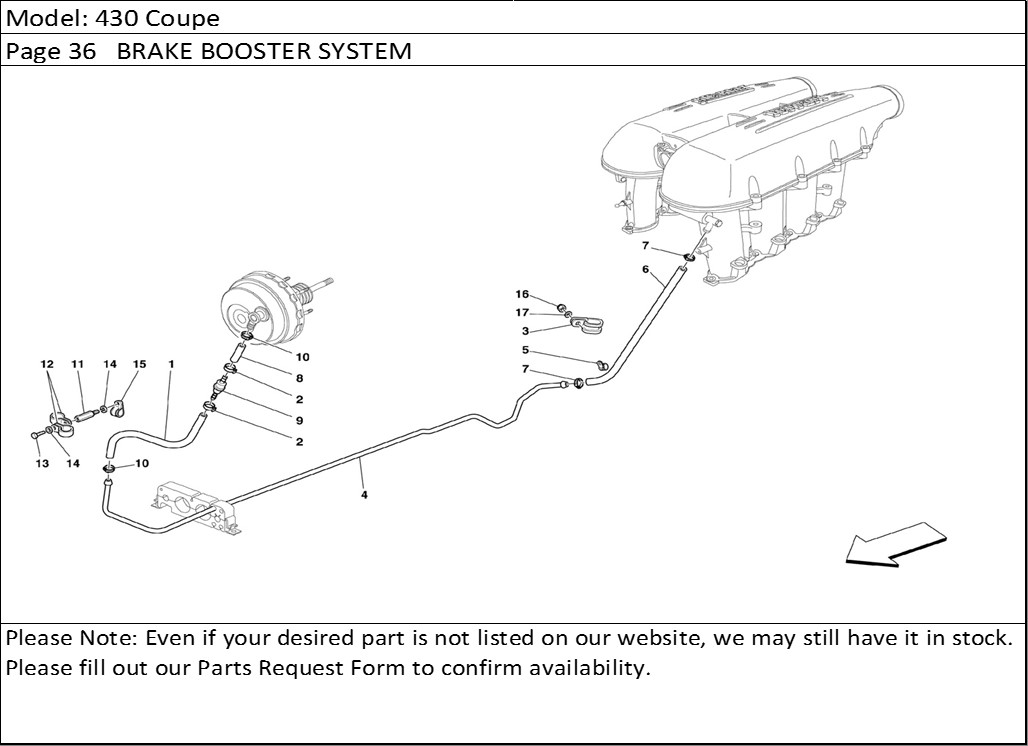

430 Coupe Page 36 BRAKE BOOSTER SYSTEM
Product Description
430 Coupe Page 36 BRAKE BOOSTER SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 217383 | RUBBER HOSE FROM VALVE TO UNDERFLOOR TUBE -Standard- -Cast iron version- -Not for GD- | 1 |
| 1 | 173842 | RUBBER HOSE FROM VALVE TO UNDERFLOOR TUBE -Standard- -Cast iron version- -Valid for GD- | 1 |
| 1 | 217381 | RUBBER HOSE FROM VALVE TO UNDERFLOOR TUBE -Optional- -CCM version- -Not for GD- | 1 |
| 1 | 219334 | RUBBER HOSE FROM VALVE TO UNDERFLOOR TUBE -Optional- -CCM version- -Valid for GD | 1 |
| 2 | 164015 | COLLAR FOR SLEEVE | 2 |
| 3 | 61712500 | BRACKET | 2 |
| 4 | 202553 | BRAKE BOOSTER UNDERFLOOR TUBE | 1 |
| 5 | 10450190 | BRACKET WITH SHEATH | 1 |
| 6 | 168386 | RUBBER HOSE -Not as spare part- -Replaced by 211984- | 1 |
| 6 | 211984 | RUBBER HOSE | 1 |
| 7 | 161490 | SCREW COLLAR | 2 |
| 8 | 127213 | RUBBER HOSE -Optional- -CCM version- -Valid for GD- | 1 |
| 8 | 217380 | RUBBER HOSE -Optional- -CCM version- -Not for GD- | 1 |
| 8 | 110750 | RUBBER HOSE -Standard- -Cast iron version- -Valid for GD- | 1 |
| 8 | 217382 | RUBBER HOSE -Standard- -Cast iron version- -Not for GD- | 1 |
| 9 | 193186 | NONRETURN VALVE | 1 |
| 10 | 161490 | SCREW COLLAR | 2 |
| 11 | 178772 | STUD | 1 |
| 12 | 10441390 | BRACKET WITH SHEATH | 2 |
| 13 | 10902224 | SCREW | 1 |
| 14 | 127494 | SHER | 2 |
| 15 | 10441690 | BRACKET | 1 |
| 16 | 102948 | NUT | 2 |
| 17 | 12639724 | SHER | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
