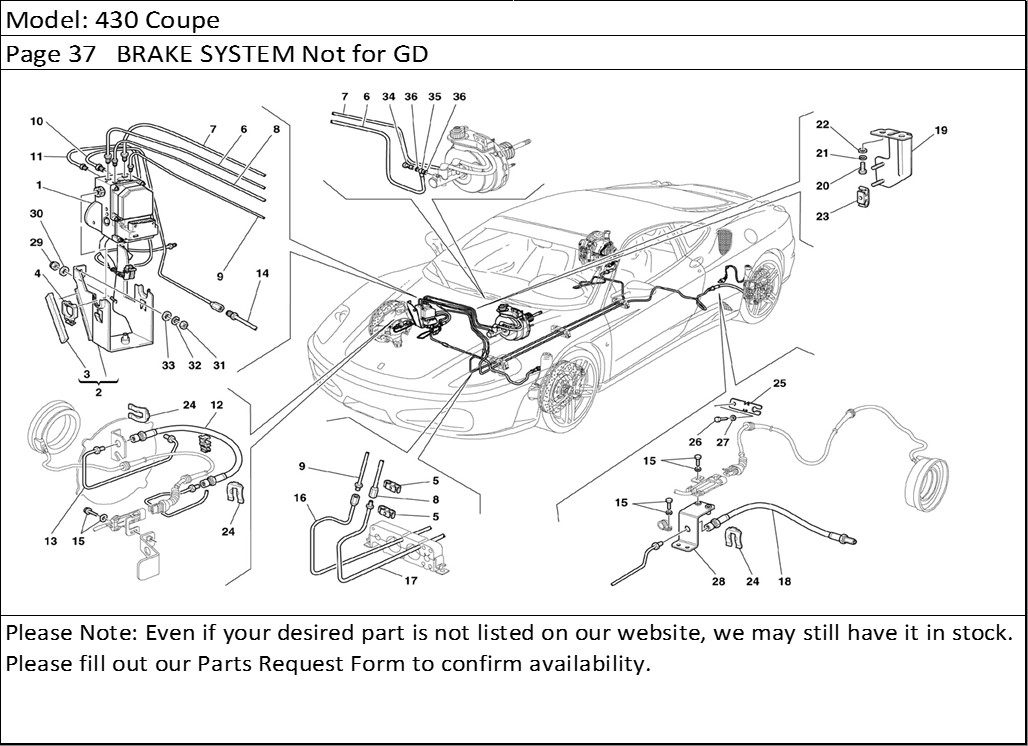

430 Coupe Page 37 BRAKE SYSTEM Not for GD
Product Description
430 Coupe Page 37 BRAKE SYSTEM Not for GD
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 194608 | ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION -Valid till Ass. Nr. 61536- | 1 |
| 1 | 221252 | ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION -Valid from Ass. Nr. 61537- | 1 |
| 2 | 203603 | CONTROL STATION SUPPORTING BRACKET | 1 |
| 3 | 197149 | ANTI-VIBRATIONS | 1 |
| 4 | 193877 | FIXING CLIP | 2 |
| 5 | 169476 | CLIP | 4 |
| 6 | 194602 | BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION -Standard- -Cast iron version- | 1 |
| 6 | 209904 | BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION -Optional- -CCM version- | 1 |
| 7 | 194601 | BRAKE PIPE FROM REAR PUMP TO CONTROL STATION -Standard- -Cast iron version- | 1 |
| 7 | 209906 | BRAKE PIPE FROM REAR PUMP TO CONTROL STATION -Optional- -CCM version- | 1 |
| 8 | 194603 | PIPE FROM CONTROL STATION TO L.H. INTERMEDIATE PIPE | 1 |
| 9 | 194604 | PIPE FROM CONTROL STATION TO R.H. INTERMEDIATE PIPE | 1 |
| 10 | 194605 | PIPE FROM CONTROL STATION TO INTERMEDIATE PIPE | 1 |
| 11 | 194606 | PIPE FROM CONTROL STATION TO R.H. FRONT BRAKE PIPE | 1 |
| 12 | 116373 | FRONT HOSE | 2 |
| 13 | 173805 | PIPE TO L.H. FRONT BRAKE | 1 |
| 13 | 173805 | PIPE TO L.H. FRONT BRAKE -Not as spare part now- -Replaced by 173805- | 1 |
| 13 | 173806 | PIPE TO R.H. FRONT BRAKE | 1 |
| 13 | 173806 | PIPE TO R.H. FRONT BRAKE -Not as spare part now- -Replaced by 173806- | 1 |
| 14 | 205295 | INTERMEDIATE PIPE | 1 |
| 15 | 11625724 | SCREW WITH WASHER | 6 |
| 16 | 205093 | PIPE TO R.H. REAR HOSE | 1 |
| 17 | 205094 | PIPE TO L.H. REAR HOSE | 1 |
| 18 | 118100 | HOSE | 2 |
| 19 | 207278 | BRAKES PIPES FIXING BRACKET | 1 |
| 20 | 10902424 | SCREW | 2 |
| 21 | 127494 | SHER | 2 |
| 22 | 12644424 | SHER | 2 |
| 23 | 169476 | CLIP | 2 |
| 24 | 116374 | CLIP | 8 |
| 25 | 178938 | SUPPORT FOR CABLE -Standard- -Cast iron version- | 2 |
| 25 | 216382 | L.H. SUPPORT FOR CABLE -Optional- -CCM version- | 1 |
| 25 | 216383 | R.H. SUPPORT FOR CABLE -Optional- -CCM version- | 1 |
| 26 | 10902024 | SCREW | 2 |
| 27 | 12601274 | SHER -Valid after stock exhaustion of 12605374- | 2 |
| 27 | 12605374 | SHER -Valid till stock exhaustion- | 2 |
| 28 | 185283 | REAR SUPPORT | 2 |
| 29 | 101139 | NUT | 1 |
| 30 | 12638524 | SHER | 1 |
| 31 | 177778 | NUT -Not as spare part- -Replaced by 16100814- | 1 |
| 31 | 16100814 | NUT | 1 |
| 32 | 127496 | SHER | 1 |
| 33 | 12638524 | SHER -Not as spare part- -Replaced by 12646724- | 1 |
| 33 | 12646724 | SHER | 1 |
| 34 | 10107225 | UNION | 1 |
| 35 | 249656 | UNION | 1 |
| 36 | 10261060 | GASKET | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
