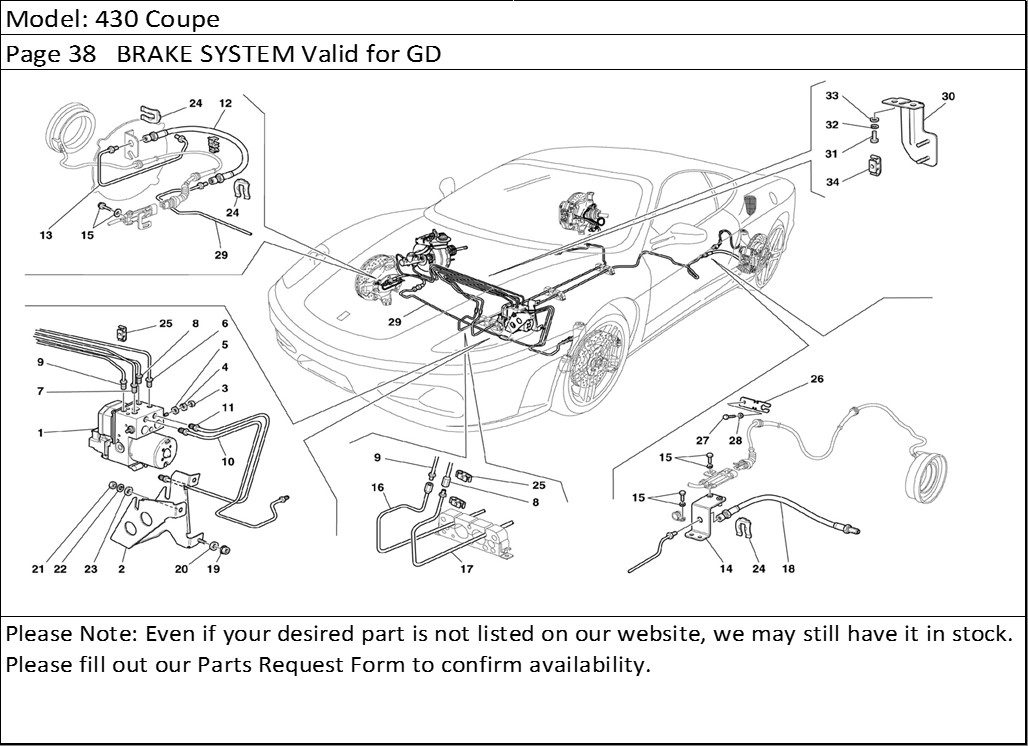

Home > 430 Coupe Page 38 BRAKE SYSTEM Valid for GD

430 Coupe Page 38 BRAKE SYSTEM Valid for GD

Product Description

430 Coupe Page 38 BRAKE SYSTEM Valid for GD

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	194608	ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION -Valid till Ass. Nr. 61536-	1
1	221252	ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION -Valid from Ass. Nr. 61537-	1
2	210930	CONTROL STATION SUPPORTING BRACKET	1
3	16100814	NUT	2
4	127496	SHER	2
5	12638524	SHER	2
6	209844	BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION -Not as spare part now- -Replaced by 219886-	1
6	219886	BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION	1
7	219885	BRAKE PIPE FROM REAR PUMP TO CONTROL STATION	1
7	209843	BRAKE PIPE FROM REAR PUMP TO CONTROL STATION -Not as spare part now- -Replaced by 219885-	1
8	209845	PIPE FROM CONTROL STATION TO L.H. INTERMEDIATE PIPE	1
9	209846	PIPE FROM CONTROL STATION TO R.H. INTERMEDIATE PIPE	1
10	209848	PIPE FROM CONTROL STATION TO L.H. FRONT BRAKE PIPE	1
11	209847	PIPE FROM CONTROL STATION TO UNION PIPE	1
12	116373	FRONT HOSE	2
13	173806	PIPE TO R.H. FRONT BRAKE	1
13	173805	PIPE TO L.H. FRONT BRAKE	1
14	185283	REAR SUPPORT	2
15	11625724	SCREW WITH WASHER	8
16	205093	PIPE TO R.H. REAR HOSE	1
17	205094	PIPE TO L.H. REAR HOSE	1
18	118100	REAR HOSE	2
19	101139	NUT	1
20	12638524	SHER	1
21	16100814	NUT	2
22	127496	SHER	2
23	12638524	SHER	2
24	116374	CLIP	8
25	169476	CLIP	4
26	178938	SUPPORT FOR CABLE	2
27	10902024	SCREW	2
28	12605374	SHER -Valid till stock exhaustion-	2
28	12601274	SHER -Valid after stock exhaustion of 12605374-	2
29	209851	UNION PIPE TO R.H. FRONT BRAKE PIPE	1
30	210896	BRAKES PIPES FIXING BRACKET	1
31	10902424	SCREW	2
32	127494	SHER	2
33	12644424	SHER	2
34	169476	CLIP	2
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
