430 Coupe Page 40 HANDBRAKE CONTROL
Product Description

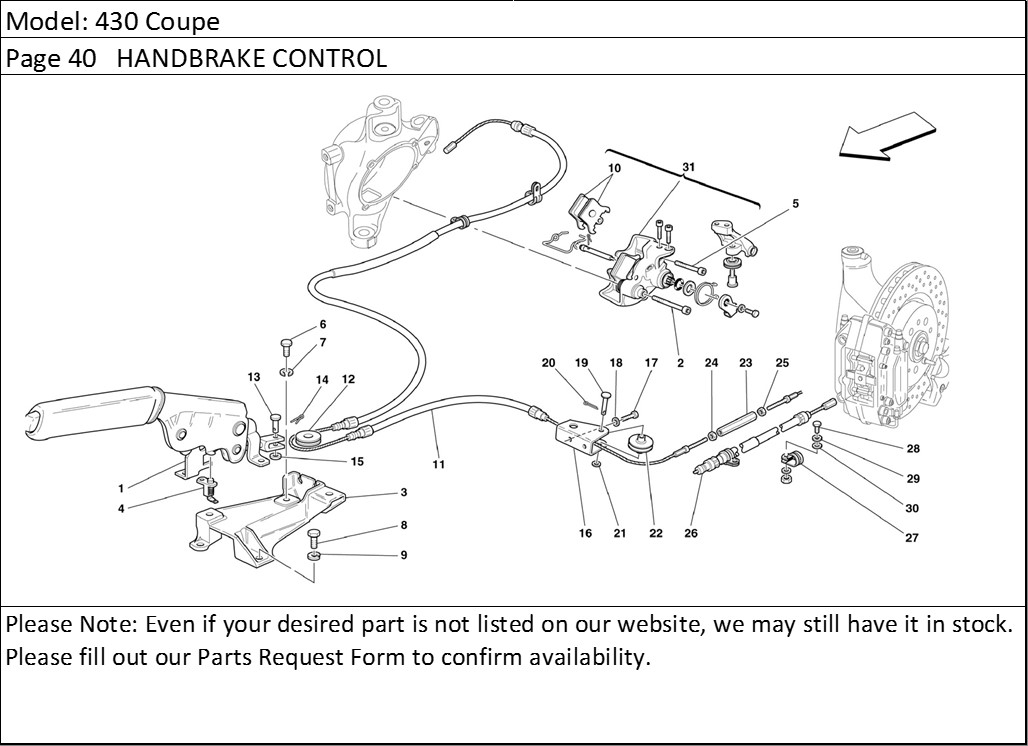

430 Coupe Page 40 HANDBRAKE CONTROL
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 807691 | HAND BRAKE LEVER -Standard- | 1 |
| 1 | 810581 | HAND BRAKE LEVER -Reflecting leather- | 1 |
| 2 | 14308424 | SCREW | 1 |
| 3 | 207655 | LEVER FOR SHAFT FIXING | 1 |
| 4 | 176118 | MICRO-SWITCH | 1 |
| 5 | 14308924 | SCREW | 1 |
| 6 | 16043224 | SCREW | 2 |
| 7 | 127496 | SHER | 2 |
| 8 | 16043434 | SCREW | 2 |
| 9 | 127496 | SHER | 2 |
| 10 | 70000969 | KIT OF HAND BRAKES PADS WITH SPRING -Optional- -CCM version- | 1 |
| 10 | 70000937 | KIT OF HAND BRAKES PADS WITH SPRING -Standard- -Cast iron version- | 1 |
| 11 | 200637 | R.H. REAR CABLE | 1 |
| 12 | 122091 | PULLEY FOR CABLE | 1 |
| 13 | 10050814 | PIVOT | 1 |
| 14 | 10734208 | SPLIT PIN | 1 |
| 15 | 14496524 | SHER | 1 |
| 16 | 176245 | BRACKET FOR CABLE FIXING | 1 |
| 17 | 10902024 | SCREW | 2 |
| 18 | 12605374 | SHER -Valid till stock exhaustion- | 2 |
| 18 | 12601274 | SHER -Valid after stock exhaustion of 12605374- | 2 |
| 19 | 10041214 | PIVOT | 1 |
| 20 | 10734208 | SPLIT PIN | 1 |
| 21 | 14496524 | SHER | 1 |
| 22 | 176261 | PULLEY FOR CABLE | 1 |
| 23 | 10091014 | ADJUSTMENT SLEEVE | 1 |
| 24 | 10725914 | NUT | 1 |
| 25 | 10727314 | NUT | 1 |
| 26 | 210027 | L.H. REAR CABLE | 1 |
| 27 | 10441390 | BRACKET WITH SHEATH | 5 |
| 28 | 10902224 | SCREW | 3 |
| 29 | 12601274 | SHER -Valid after stock exhaustion of 12605374- | 3 |
| 29 | 12605374 | SHER -Valid till stock exhaustion- | 3 |
| 30 | 12644424 | SHER | 3 |
| 31 | 196401 | L.H. CALIPER FOR HAND BRAKE -CCM version- -Valid till Ass. Nr. 68250- -Not as spare part- -Replaced by 228045- | 1 |
| 31 | 228021 | L.H. CALIPER FOR HAND BRAKE -Standard- -Cast iron version- -Valid from Ass. Nr. 68251- | 1 |
| 31 | 175922 | L.H. CALIPER FOR HAND BRAKE -Standard- -Cast iron version- -Valid till Ass. Nr. 68250- -Not as spare part- -Replaced by 228021- | 1 |
| 31 | 228046 | R.H. CALIPER FOR HAND BRAKE -Optional- -CCM version- -Valid from Ass. Nr. 68251- | 1 |
| 31 | 196400 | R.H. CALIPER FOR HAND BRAKE -Optional- -CCM version- -Valid till Ass. Nr. 68250- -Not as spare part- -Replaced by 228046- | 1 |
| 31 | 228022 | R.H. CALIPER FOR HAND BRAKE -Standard- -Cast iron version- -Valid from Ass. Nr. 68251- | 1 |
| 31 | 228022 | R.H. CALIPER FOR HAND BRAKE -Standard- -Cast iron version- -Valid till Ass. Nr. 68250- -Not as spare part- -Replaced by 228022- | 1 |
| 31 | 228045 | L.H. CALIPER FOR HAND BRAKE -CCM version- -Valid from Ass. Nr. 68251- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
