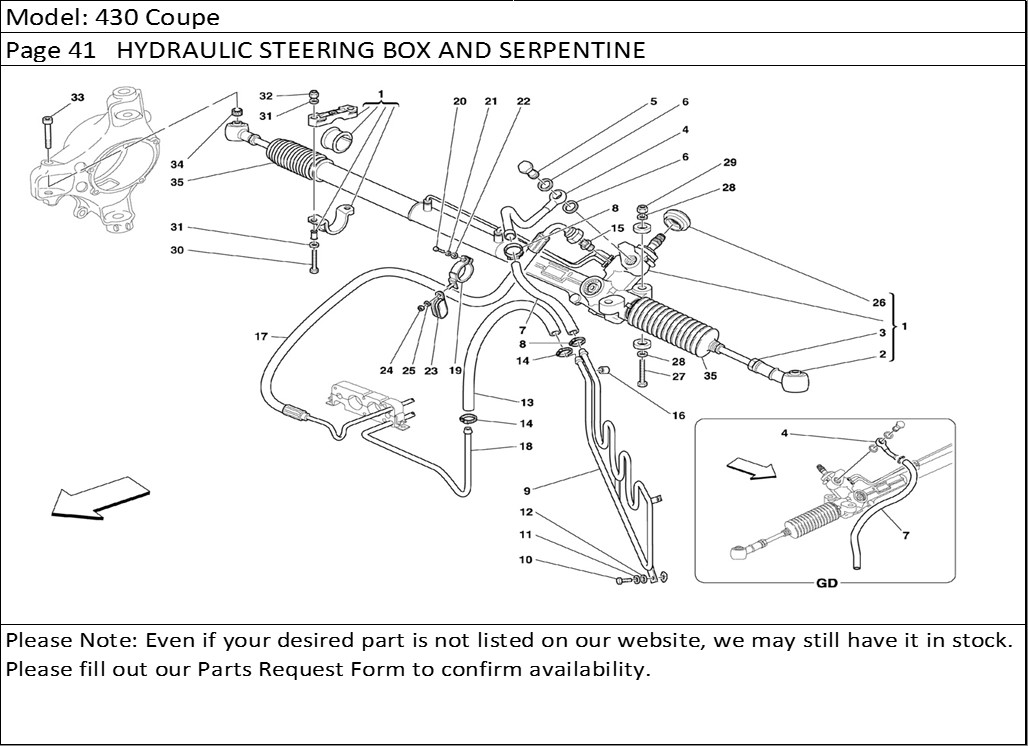

430 Coupe Page 41 HYDRAULIC STEERING BOX AND SERPENTINE

Product Description

430 Coupe Page 41 HYDRAULIC STEERING BOX AND SERPENTINE

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	196171	RACK STEERING BOX WITH POWER STEERING -Not for GD-	1
1	196172	RACK STEERING BOX WITH POWER STEERING -Valid for GD-	1
2	181882	BALLTIEROD	2
3	10791324	NUT	2
4	211764	INGING UNION -Not for GD-	1
4	177943	INGING UNION -Valid for GD-	1
5	10185111	UNION	1
6	10280060	GASKET	2
7	219300	RUBBER HOSE -Valid for GD-	1
7	219300	RUBBER HOSE -Valid for GD- -Not as spare part now- -Replaced by 219300-	1
7	212706	RUBBER HOSE -Not for GD-	1
8	161490	SCREW COLLAR -Not for GD-	2
8	13430770	SCREW COLLAR -Valid for GD-	2
9	205071	REFRIGERATING COIL -Not for GD-	1
9	214738	REFRIGERATING COIL -Valid for GD-	1
10	16286324	SCREW -L=30 mm-	1
10	10902124	SCREW-L=14mm-	3
11	12601274	SHER	4
12	14496424	SHER	4
13	212707	RUBBER HOSE -Not for GD-	1
13	247406	RUBBER HOSE -Valid for GD-	1
14	161490	SCREW COLLAR	2
15	201706	THREADED UNION	1
16	166730	SPACER	1
17	211536	L.H. DELIVERY PIPE FROM UNION TO STEERING BOX	1
18	202552	RETURN PIPE UNDER THE FLOOR	1
19	177631	PIPES FIXING BRACKET	2
20	10902424	SCREW	2
21	127494	SHER	2
22	12639724	SHER	2
23	10441690	BRACKET WITH SHEATH	2
24	102948	NUT	2
25	12639724	SHER	2
26	171519	COMPLETE RING	1
27	16237174	SCREW	2
28	14496624	SHER	4
29	102742	NUT	2
30	16237074	SCREW	2
31	14496624	SHER	4
32	102742	NUT	2
33	179556	SCREW	2
34	179555	COMPENSATOR RING	2
35	70000948	BELLOWS REPLACEMENT KIT	1
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
