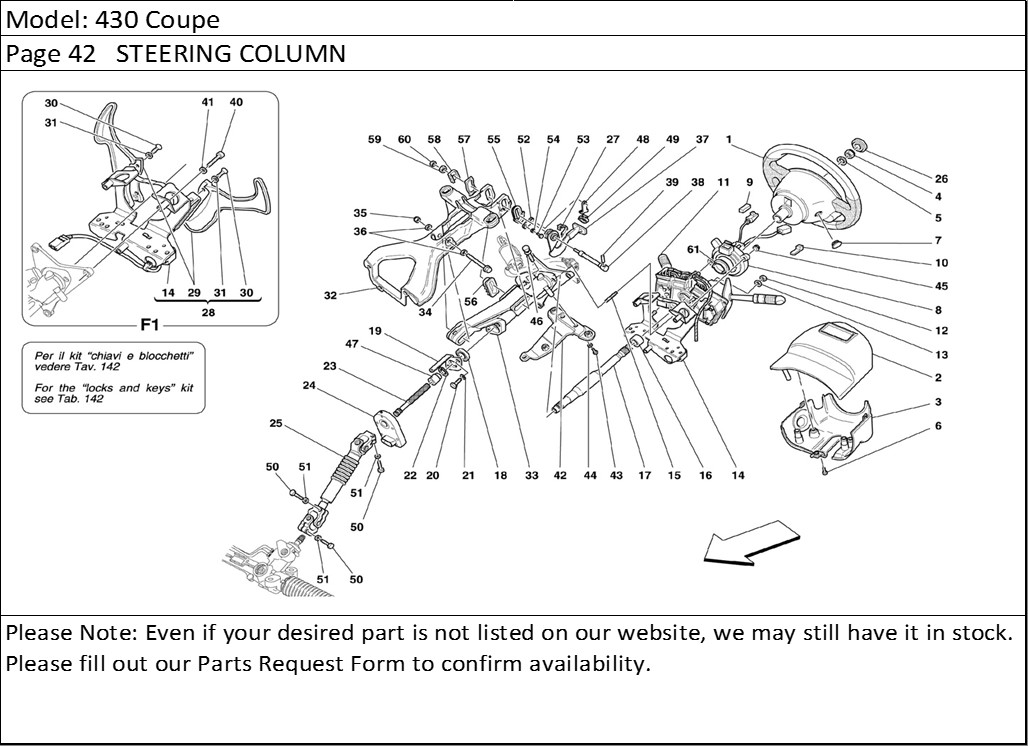

430 Coupe Page 42 STEERING COLUMN
Product Description
430 Coupe Page 42 STEERING COLUMN
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 689389 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Standard- -Valid till stock exhaustion- -Valid till car Ass. Nr. 60177- | 1 |
| 1 | 808982 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Optional- -Steering wheel crown and plate covered with carbon- | 1 |
| 1 | 803268 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Optional- -Steering wheel crown and plate covered with carbon- -Valid after stock exhaustion of 800537..- -Not as spare part--Replaced by 808982..- | 1 |
| 1 | 800537 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Optional- -Steering wheel crown and plate covered with carbon- -Valid till stock exhaustion- | 1 |
| 1 | 693950 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Optional- -Steering wheel crown and plate covered with carbon- -Not as spare part- -Replaced by 800537..- | 1 |
| 1 | 693949 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Optional- -Carbon plate- | 1 |
| 1 | 808981 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Standard- | 1 |
| 1 | 803265 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Standard- -Valid after stock exhaustion of 800536..- -Not as spare part- -Replaced by 808981 ..- | 1 |
| 1 | 800536 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Standard- -Valid after stock exhaustion of 689389..- -Valid from car Ass. Nr. 60178- -Valid till stock exhaustion- | 1 |
| 1 | 697462 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Standard- -Valid after stock exhaustion of 689389..- -Valid from car Ass. Nr. 60178- -Not as spare part- -Replaced by 800536..- | 1 |
| 2 | 68097900 | UPPER COVER -Valid for F1- | 1 |
| 2 | 68098200 | UPPER COVER-Not for F1- | 1 |
| 3 | 68097800 | ER COVER -Not for F1 - | 1 |
| 3 | 68161600 | ER COVER -Valid for F1- | 1 |
| 4 | 199222 | NUT | 1 |
| 5 | 152034 | SHER | 1 |
| 6 | 15960507 | SCREW | 5 |
| 7 | 185486 | PLUG | 2 |
| 8 | 213671 | SPIRAL CONTACT | 1 |
| 9 | 163816 | RESISTOR FOR SPIRAL CONTACT | 1 |
| 10 | 135355 | CONNECTOR | 1 |
| 11 | 177585 | UNHOOK DEVIATION ASSEMBLY | 1 |
| 12 | 15896470 | NUT | 2 |
| 13 | 12601174 | SHER | 2 |
| 14 | 204155 | BRACKET SUPPORTING SPIRAL CONTACT -Not for F1 - | 1 |
| 14 | 203317 | CONTROL BRACKET FOR GEAR BOX -Valid for F1- -Not as spare part- | 1 |
| 15 | 11001424 | STUD | 2 |
| 16 | 199094 | ROLLER BEARING | 1 |
| 17 | 197701 | COLUMN UPPER SHAFT | 1 |
| 18 | 171540 | BALLBEARING | 1 |
| 19 | 201016 | BRACKET SUPPORTING STEERING ANGLE SENSOR | 1 |
| 20 | 10902224 | SCREW | 2 |
| 21 | 11181874 | SHER | 2 |
| 22 | 11067376 | SEEGER RING | 1 |
| 23 | 183993 | COLUMN LOWER SHAFT | 1 |
| 24 | 190405 | STEERING ANGLE SENSOR | 1 |
| 25 | 171528 | STEERING CARDANIC TRASMISSION | 1 |
| 26 | 199406 | PLUG | 1 |
| 27 | 171531 | PIN RETAINING SPRING | 1 |
| 28 | 226101 | F1 GEARBOX CONTROL LEVERS ASSEMBLY -Valid for F1- -Optional- -Carbon- -Valid after stock exhaustion of 218518- | 1 |
| 28 | 226101 | F1 GEARBOX CONTROL LEVERS ASSEMBLY -Valid for F1- -Optional- -Carbon- -Valid till stock exhaustion- | 1 |
| 28 | 226099 | F1 GEARBOX CONTROL LEVERS ASSEMBLY -Valid for F1 - -Standard- -Valid after stock exhaustion of 201682- | 1 |
| 28 | 201682 | F1 GEARBOX CONTROL LEVERS ASSEMBLY -Valid for F1 - -Standard- -Valid till stock exhaustion- | 1 |
| 29 | 201682 | COUPLE LEVERS -Valid for F1 - -Standard- | 1 |
| 29 | 226101 | COUPLE LEVERS -Valid for F1 - -Optional- -Carbon- | 1 |
| 30 | 13308977 | SCREW -Valid for F1- -Valid for levers assembly 201682 and 218518 ref. 28- | 4 |
| 30 | 226092 | SCREW -Valid for F1- -Valid for levers assembly 226099 and 226101 ref. 28- | 4 |
| 31 | 12606673 | SHER -Valid for F1- -Valid for levers assembly 201682 and 218518 ref. 28- | 4 |
| 32 | 197702 | STEERING COLUMN SUPPORT BRACKET -Not for GD- | 1 |
| 32 | 209191 | STEERING COLUMN SUPPORT BRACKET -Valid for GD- | 1 |
| 33 | 197700 | COLUMN SUPPORT | 1 |
| 34 | 180632 | SCREW | 1 |
| 35 | 104030 | NUT | 1 |
| 36 | 12625224 | SHER | 2 |
| 37 | 659933 | COVERED LEVER | 1 |
| 38 | 171503 | PIN FOR LEVER | 1 |
| 39 | 10336630 | PIN | 1 |
| 40 | 13274611 | SCREW-Valid for F1- | 3 |
| 41 | 12601174 | SHER -Valid for F1- | 3 |
| 42 | 65164200 | BRACKET | 1 |
| 43 | 13274177 | SCREW | 3 |
| 44 | 12637878 | SHER | 3 |
| 45 | 61002200 | NUT | 2 |
| 46 | 172563 | ANTITHEFT FIXING SCREW | 1 |
| 47 | 200970 | RING NUT | 1 |
| 48 | 177977 | SMALL PLATE | 1 |
| 49 | 178430 | FIXING CLIP | 1 |
| 50 | 192229 | HEXAGONAL SCREW | 3 |
| 51 | 192230 | SHER | 3 |
| 52 | 171523 | PLATE | 1 |
| 53 | 10977724 | SCREW | 2 |
| 54 | 11181574 | SHER | 2 |
| 55 | 171544 | LEVER SIDE GUIDE SHOE | 1 |
| 56 | 171501 | FIXED TENSION SLIDE | 1 |
| 57 | 171502 | SPRING FOR GUIDE SHOE | 1 |
| 58 | 171529 | MOBILE GUIDE SHOE | 1 |
| 59 | 171542 | NUT | 1 |
| 60 | 147985 | NUT | 1 |
| 61 | 199784 | BUSHING | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
