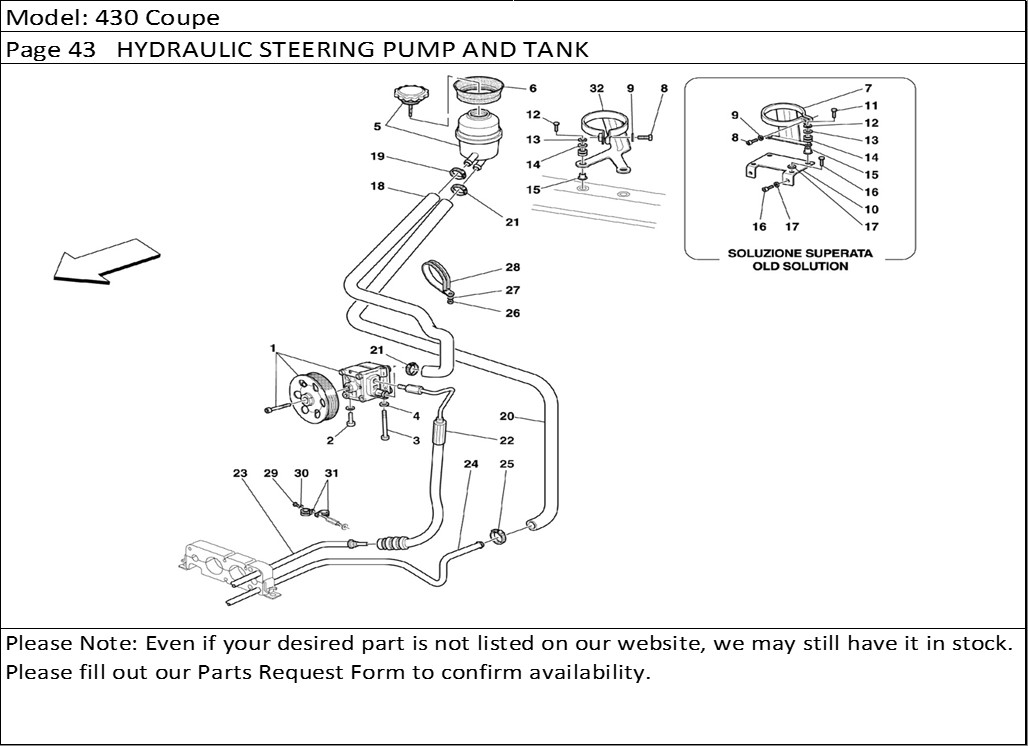

430 Coupe Page 43 HYDRAULIC STEERING PUMP AND TANK
Product Description
430 Coupe Page 43 HYDRAULIC STEERING PUMP AND TANK
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 198680 | COMPLETE HYDRAULIC PUMP | 1 |
| 2 | 198519 | SCREW | 1 |
| 3 | 180604 | SCREW | 1 |
| 4 | 11193874 | WASHER | 2 |
| 5 | 170877 | OIL TANK FOR SERVOSTEERING | 1 |
| 6 | 179301 | RUBBER RING | 1 |
| 7 | 184137 | UPPER BRACKET -Not as spare part- -Replaced by 229765 ref. 32- | 1 |
| 8 | 10902124 | SCREW | 1 |
| 9 | 12601274 | WASHER | 1 |
| 10 | 195428 | ER BRACKET -Not as spare part- -Replaced by 229765 ref. 32- | 1 |
| 11 | 10902524 | SCREW | 2 |
| 12 | 11197774 | WASHER | 2 |
| 13 | 12643724 | WASHER | 2 |
| 14 | 103549 | CABLE GROMMET | 2 |
| 15 | 149707 | SPACER | 2 |
| 16 | 10902324 | SCREW | 4 |
| 17 | 11197774 | WASHER | 4 |
| 18 | 196892 | PIPE FROM TANK TO PUMP | 1 |
| 19 | 177996 | CLAMP | 1 |
| 20 | 211916 | DELIVERY PIPE FROM PUMP TO UNION | 1 |
| 21 | 178051 | CLAMP | 2 |
| 22 | 211642 | DELIVERY PIPE FROM PUMP TO UNDER FLOOR PIPE | 1 |
| 23 | 211536 | L.H. DELIVERY PIPE FROM UNION TO STEERING BOX | 1 |
| 24 | 202552 | RETURN PIPE UNDER THE FLOOR | 1 |
| 25 | 178051 | CLAMP | 1 |
| 26 | 102741 | NUT | 1 |
| 27 | 14499324 | WASHER | 1 |
| 28 | 124034 | BRACKET WITH SHEATH | 1 |
| 29 | 10902124 | SCREW | 1 |
| 30 | 14488624 | WASHER | 1 |
| 31 | 10441390 | BRACKET WITH SHEATH | 2 |
| 32 | 229765 | BRACKET FOR FUEL FIXING -Replaces 184137 ref.7 and 195428 ref.10- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
