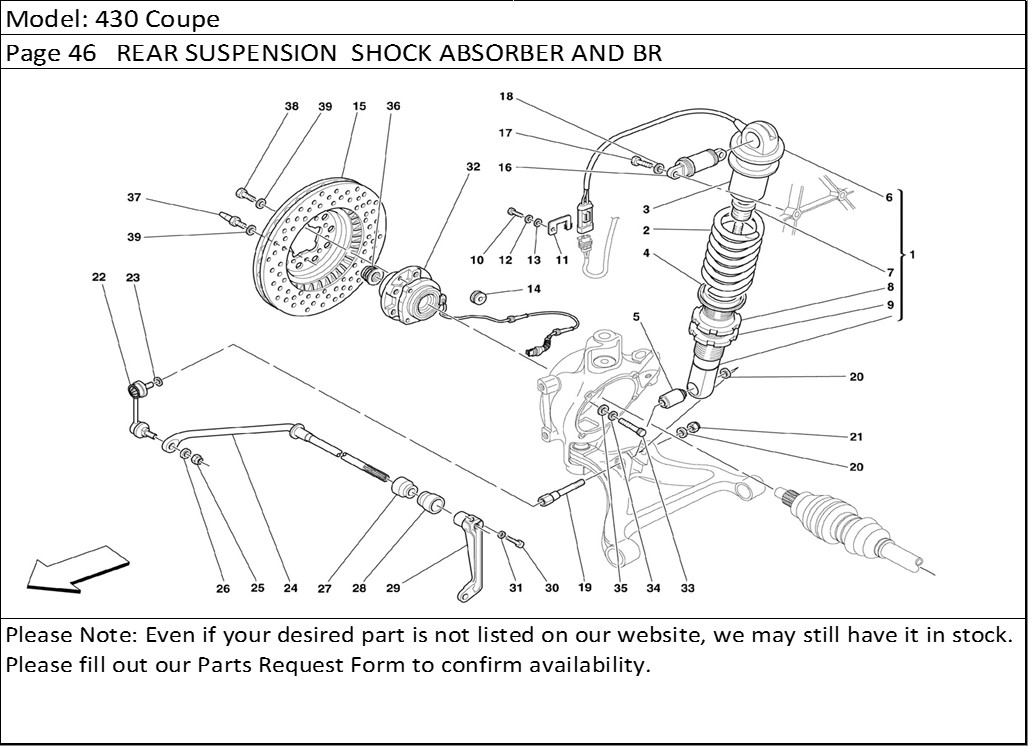

430 Coupe Page 46 REAR SUSPENSION SHOCK ABSORBER AND BR

Product Description

430 Coupe Page 46 REAR SUSPENSION SHOCK ABSORBER AND BR

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	212543	REAR SHOCK ABSORBER	2
2	190677	SPRING	2
3	177688	UPPER SPACER	2
4	169684	ER SPACER	2
5	157630	BALL JOINT	2
6	174727	SPRING RETAINING UPPER SPACER	2
7	174728	SHOCK ABSORBER PAD	2
8	174725	SPACER	2
9	174726	RING NUT	2
10	10902024	SCREW	2
11	162606	CLIP	2
12	127494	WASHER	2
13	12643724	WASHER	2
14	10460287	RUBBER RING	2
15	222340	REAR BRAKE DISC -CCM version- -Valid from Ass. Nr. 64741- -Valid after stock exhaustion of 202180- -Replace together-	2
15	202180	REAR BRAKE DISC -CCM version- -Valid till Ass. Nr. 64740- -Valid till stock exhaustion- -Replace together-	2
15	213484	REAR BRAKE DISC -Iron version-	2
16	212948	SILENTBLOCK	2
17	11306934	SCREW	4
18	160092	WASHER	4
19	204974	SCREW	2
20	129225	WASHER	4
21	102825	NUT	2
22	161109	R.H. BALL TIE ROD	1
22	161110	L.H. BALL TIE ROD	1
23	160092	WASHER	2
24	210234	REAR ANTI-ROLL BAR	1
25	12164714	NUT	2
26	12601474	WASHER	2
27	170716	BAR BUFFER	1
28	170717	BAR BUFFER	1
29	175861	L.H. ARM	1
30	170950	SCREW	1
31	12601474	WASHER	1
32	194134	HUB COMPLETE BEARING	2
33	180591	SCREW	8
34	160092	WASHER	8
35	10732414	WASHER	8
36	209184	NUT	2
37	104370	BRAKE DISC FIXING SCREW	2
38	16043424	SCREW	2
39	127496	WASHER	4
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
