430 Coupe Page 47 REAR SUSPENSION WISHBONES
Product Description

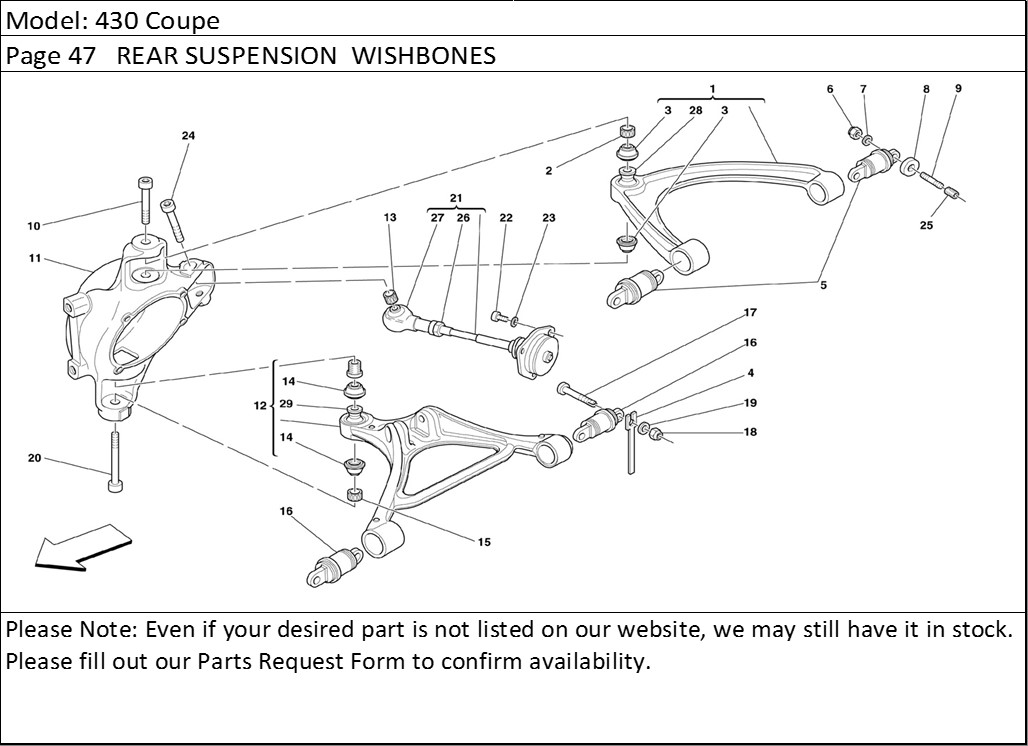

430 Coupe Page 47 REAR SUSPENSION WISHBONES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 200946 | UPPER LEVER | 2 |
| 2 | 179555 | UPPER LEVER COMPENSATOR RING | 2 |
| 3 | 171848 | BOOT | 4 |
| 4 | 234292 | ADJUSTING PLATE TH.2. 5mm -Possible fitting- | 2 |
| 4 | 234287 | ADJUSTING PLATE TH. 2.5mm -Possible fitting- | 2 |
| 4 | 215621 | ADJUSTING PLATE TH. 5mm -Possible fitting- | 2 |
| 4 | 178954 | ADJUSTING PLATE TH. 4mm -Possible fitting- | 2 |
| 4 | 178944 | ADJUSTING PLATE TH. 3mm -Possible fitting- | 2 |
| 4 | 178943 | ADJUSTING PLATE TH. 2mm -Possible fitting- | 2 |
| 4 | 178942 | ADJUSTING PLATE TH. 1mm -Possible fitting- | 2 |
| 4 | 215549 | ADJUSTING PLATE TH. 5mm -Possible fitting- | 6 |
| 4 | 178953 | ADJUSTING PLATE TH. 4mm -Possible fitting- | 6 |
| 4 | 175912 | ADJUSTING PLATE TH. 3mm -Possible fitting- | 6 |
| 4 | 175911 | ADJUSTING PLATE TH. 2mm -Possible fitting- | 6 |
| 4 | 175910 | ADJUSTING PLATE TH. 1mm -Possible fitting- | 6 |
| 5 | 184610 | FLAMBLOC | 4 |
| 6 | 104030 | NUT | 8 |
| 7 | 14496524 | WASHER | 8 |
| 8 | 12628904 | WASHER | 8 |
| 9 | 170155 | THREADED BAR | 8 |
| 10 | 179556 | SCREW | 2 |
| 11 | 179328 | L.H. REAR STEERING KNUCKLE | 1 |
| 11 | 179330 | R.H. REAR STEERING KNUCKLE | 1 |
| 12 | 200941 | R.H. LOWER LEVER | 1 |
| 12 | 200942 | L.H. LOWER LEVER | 1 |
| 13 | 179555 | TIE ROD COMPENSATOR RING | 2 |
| 14 | 171847 | BOOT | 4 |
| 15 | 179554 | LOWER LEVER COMPENSATOR RING | 2 |
| 16 | 184609 | FLAMBLOC | 4 |
| 17 | 182215 | SCREW | 8 |
| 18 | 104114 | NUT | 8 |
| 19 | 14496624 | WASHER | 8 |
| 20 | 181598 | SCREW | 2 |
| 21 | 194791 | COMPLETE TIE ROD | 2 |
| 22 | 14306224 | SCREW | 6 |
| 23 | 11194074 | WASHER | 6 |
| 24 | 179556 | SCREW | 2 |
| 25 | 13582271 | THREADED INSERT | 8 |
| 26 | 204248 | NUT | 2 |
| 27 | 194794 | BALL TIE ROD | 2 |
| 28 | 203633 | BALL JOINT | 2 |
| 29 | 203632 | BALL JOINT | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
