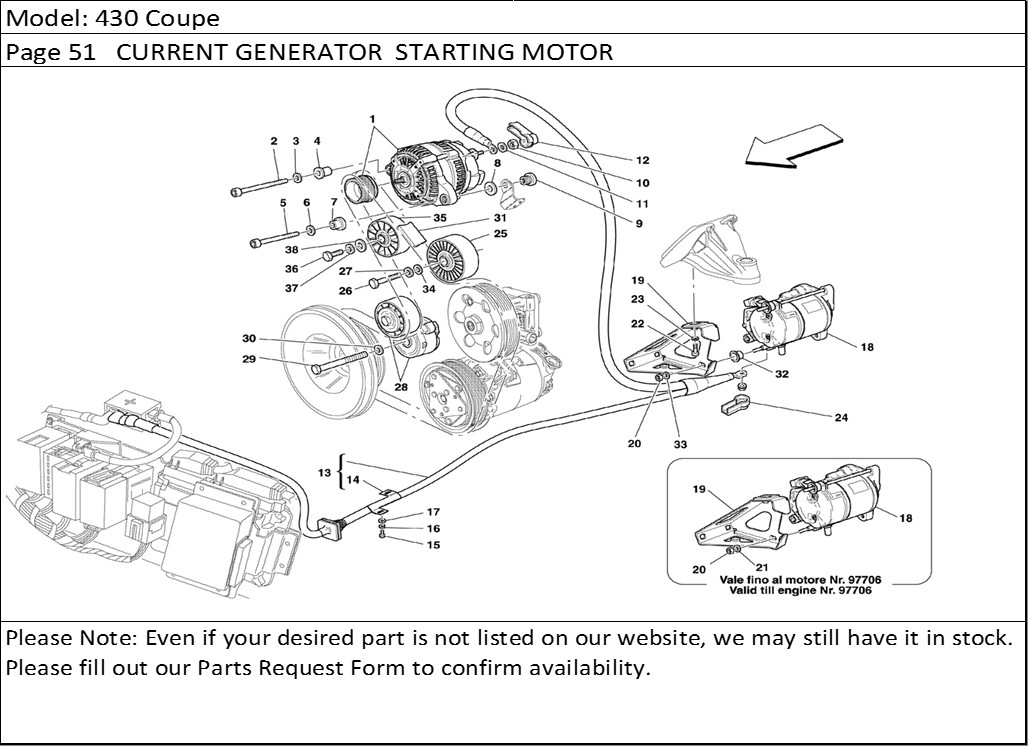

430 Coupe Page 51 CURRENT GENERATOR STARTING MOTOR
Product Description
430 Coupe Page 51 CURRENT GENERATOR STARTING MOTOR
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 205403 | 150 A. ALTERNATOR | 1 |
| 2 | 14308724 | SCREW | 1 |
| 3 | 10569474 | WASHER | 1 |
| 4 | 209278 | BUSHING | 1 |
| 5 | 14308224 | SCREW | 1 |
| 6 | 10569474 | WASHER | 1 |
| 7 | 164467 | BUSHING | 1 |
| 8 | 207423 | WASHER | 1 |
| 9 | 187143 | THREADED BUSHING | 1 |
| 10 | 16102314 | NUT | 1 |
| 11 | 12601374 | WASHER | 1 |
| 12 | 154803 | PROTECTION BOOT | 1 |
| 13 | 192534 | COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES | 1 |
| 14 | 178356 | BRACKET | 1 |
| 15 | 10902324 | SCREW | 2 |
| 16 | 127494 | WASHER | 2 |
| 17 | 12644424 | WASHER | 2 |
| 18 | 180169 | STARTER MOTOR | 1 |
| 19 | 203104 | STARTER MOTOR SUPPORTING BRACKET -Valid till engine No. 97706- | 1 |
| 19 | 222003 | STARTER MOTOR SUPPORTING BRACKET -Valid from engine No. 97707- | 1 |
| 20 | 160472 | NUT -Not as spare part- -Replaced by 15896470- | 2 |
| 20 | 15896470 | NUT | 2 |
| 21 | 61148700 | SHER -Valid till engine No. 97706- | 2 |
| 22 | 14302824 | SCREW | 3 |
| 23 | 11193874 | WASHER | 3 |
| 24 | 124683 | PROTECTION BOOT | 1 |
| 25 | 172537 | BELT TIGHTENING PULLEY -Valid till engine Nr. 117478- | 1 |
| 25 | 227894 | BELT TIGHTENING PULLEY-Valid from engine Nr. 117479- | 1 |
| 26 | 11343821 | SCREW -Valid from engine Nr. 117479- | 1 |
| 26 | 11234721 | SCREW -Valid till engine Nr. 117478- | 1 |
| 27 | 11190574 | SHER -Valid till engine Nr. 117478- | 1 |
| 27 | 13550421 | SHER -Valid from engine Nr. 117479- | 1 |
| 28 | 233644 | BELT TIGHTENER -Valid till engine Nr. 117478- | 1 |
| 28 | 233644 | BELT TIGHTENER -Valid from engine Nr. 117479- | 1 |
| 29 | 16044431 | SCREW | 1 |
| 30 | 11193874 | WASHER | 1 |
| 31 | 235315 | BELT -Not as spare part- -Replaced by 235315- | 1 |
| 31 | 235315 | BELT | 1 |
| 32 | 215645 | SPACER BUSHING -Valid from engine No. 97707- | 2 |
| 33 | 127493 | WASHER | 2 |
| 34 | 10569474 | WSHER -Valid from engine Nr. 117479- | 1 |
| 35 | 226205 | PULLEY -Valid from engine Nr. 117479- | 1 |
| 36 | 16043324 | SCREW -Valid from engine Nr. 117479- | 1 |
| 37 | 11193974 | WASHER -Valid from engine Nr. 117479- | 1 |
| 38 | 12647024 | WASHER -Valid from engine Nr. 117479- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
