430 Coupe Page 100 BODY OUTER TRIMS
Product Description

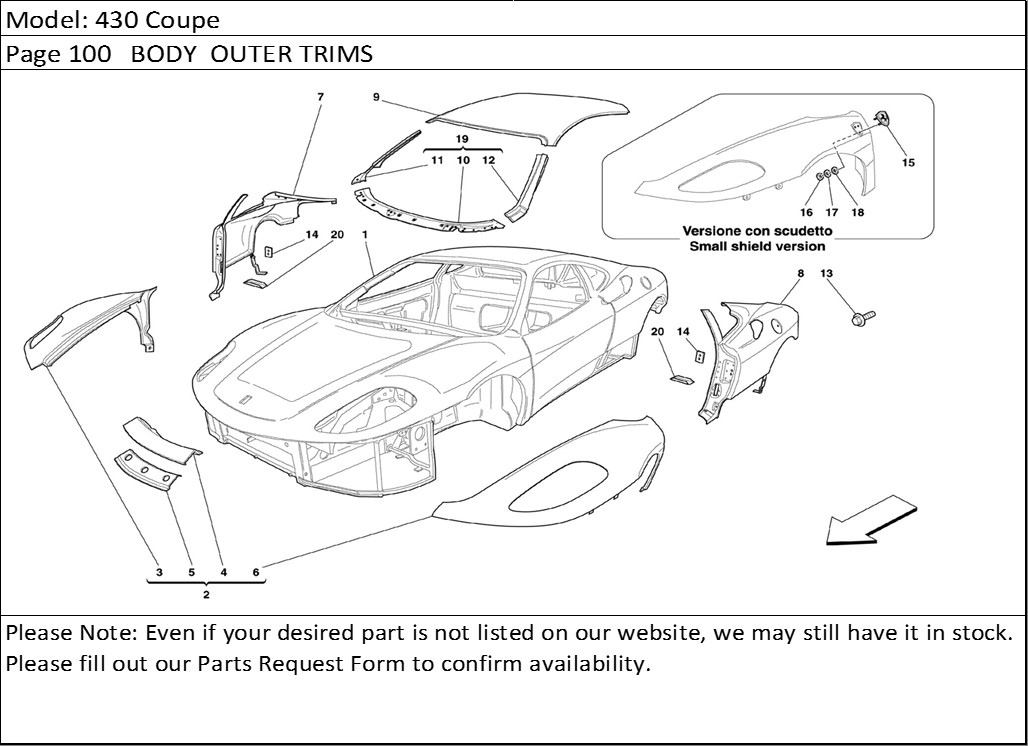

430 Coupe Page 100 BODY OUTER TRIMS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | - | COMPLETE BODYWORK | 1 |
| 2 | 67762811 | COMPLETE FRONT FENDER ASSEMBLY -Standard- | 1 |
| 2 | 67762111 | COMPLETE FRONT FENDER ASSEMBLY -Optional- -Small shield version- | 1 |
| 3 | 67762911 | COMPLETE R.H. FRONT FENDER -Standard- | 1 |
| 3 | 67762211 | COMPLETE R.H. FRONT FENDER -Optional- -Small shield version- | 1 |
| 4 | 65314111 | FRONT CENTRAL LINING | 1 |
| 5 | 66233911 | FRONT CENTRAL MOULDING | 1 |
| 6 | 67763311 | COMPLETE L.H. FRONT FENDER -Standard- | 1 |
| 6 | 67762511 | COMPLETE L.H. FRONT FENDER -Optional- -Small shield version- | 1 |
| 7 | 67763511 | COMPLETE R.H. REAR FENDER -Not for GD- | 1 |
| 7 | 68650211 | COMPLETE R.H. REAR FENDER -Valid for GD- | 1 |
| 8 | 68650311 | COMPLETE L.H. REAR FENDER -Valid for GD- | 1 |
| 8 | 67745011 | COMPLETE L.H. REAR FENDER -Not for GD- | 1 |
| 9 | 63246711 | ROOF UPHOLSTERY | 1 |
| 10 | 65703111 | TAIL WINDSHIELD TRIM | 1 |
| 11 | 65315011 | R.H. WINDSHIELD PILLAR SHIELD | 1 |
| 12 | 65315111 | L.H. WINDSHIELD PILLAR SHIELD | 1 |
| 13 | 13836771 | SCREW | |
| 14 | 68624600 | PLATE | 2 |
| 15 | 65921900 | SQUADRA CORSE SMALL SHIELD | 2 |
| 16 | 16101711 | NUT | 6 |
| 17 | 14498521 | WASHER | 6 |
| 18 | 12624178 | WASHER | 6 |
| 19 | 63268411 | COMPLETE TAIL WINDSHIELD TRIM | 1 |
| 20 | 65155300 | FIXED REAR BRACKET FOR REAR FENDER | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
