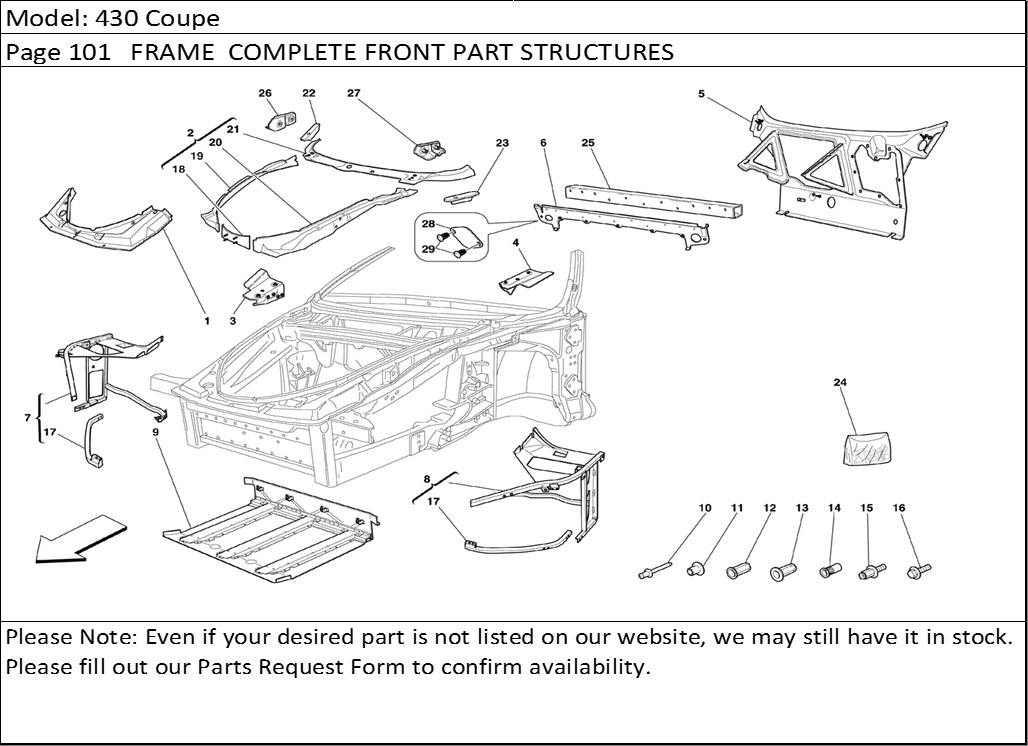

430 Coupe Page 101 FRAME COMPLETE FRONT PART STRUCTURES
Product Description
430 Coupe Page 101 FRAME COMPLETE FRONT PART STRUCTURES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 65393611 | COMPLETE FRONT CROSS MEMBER | 1 |
| 2 | 68037611 | COMPLETE FRONT MOULDING -Not for USA and CDN- | 1 |
| 2 | 69113511 | COMPLETE FRONT MOULDING -Valid for USA and CDN- | 1 |
| 3 | 65393800 | R.H. PLATE FOR FRONT HOOD BONNET HINGE | 1 |
| 4 | 65393900 | L.H. PLATE FOR FRONT HOOD BONNET HINGE | 1 |
| 5 | 212400 | FRONT SHIELD -Valid for GD- | 1 |
| 5 | 202382 | FRONT SHIELD -Not for GD- | 1 |
| 6 | 67962700 | TRUNK COMPARTMENT UPPER REAR PANEL | 1 |
| 7 | 69735911 | R.H. FRONT SIDE FRAME -Valid till stock exhaustion- | 1 |
| 7 | 69735911 | R.H. FRONT SIDE FRAME -Valid after stock exhaustion of 67289300- | 1 |
| 8 | 69736011 | L.H. FRONT SIDE FRAME -Valid after stock exhaustion of 67289400- | 1 |
| 8 | 69736011 | L.H. FRONT SIDE FRAME -Valid till stock exhaustion- | 1 |
| 9 | 67656600 | COMPLETE COMPARTPMENT BOTTOM PLATE | 1 |
| 10 | 14642891 | POP RIVET L. 14 mm | |
| 11 | 65133800 | RIVET L. 6,4 mm | |
| 12 | 15624311 | ESAGONAL RIVET M5 | |
| 12 | 15624411 | ESAGONAL RIVET M6 | |
| 12 | 15624511 | ESAGONAL RIVET M8 | |
| 12 | 15180411 | BLIND ESAGONAL RIVET | |
| 12 | 15624211 | ESAGONAL RIVET M4 | |
| 13 | 65151200 | RIVET M6 | |
| 14 | 60853400 | RIVET | |
| 14 | 65319800 | RIVET M8 BLIND | |
| 14 | 65930400 | RIVET M6 | |
| 14 | 65135000 | RIVET M8 | |
| 14 | 166101 | RIVET M4 | |
| 15 | 65065400 | STUD ESAGONAL HEAD M6 | |
| 16 | 13836771 | SCREW | |
| 17 | 68079800 | R.H. MOBILE PIPE | 1 |
| 17 | 68086300 | L.H. MOBILE PIPE | 1 |
| 18 | 66219811 | TRUNK COMPARTMENT UPPER MOULDING INSERT | 1 |
| 19 | 67963111 | R.H. FENDER SUPPORT WALL | 1 |
| 20 | 68031911 | L.H. FENDER SUPPORT WALL | 1 |
| 21 | 66120311 | UINDER WINDSCREED FRAME | 1 |
| 22 | 65317400 | R.H. BRACKET | 1 |
| 23 | 65317500 | L.H. BRACKET | 1 |
| 24 | 70000950 | INSERTS KIT FOR REPAIR | 1 |
| 25 | 202381 | COMPLETE FRONT SUSPENSION UPPER CONNECTION CROSS MEMBER | 1 |
| 26 | 65709800 | R.H. BRACKET FOR FIXED HINGE | 1 |
| 27 | 65709900 | L.H. BRACKET FOR FIXED HINGE | 1 |
| 28 | 70001259 | SMALL PLATE -Valid from Ass. Nr. 70821 to Ass.Nr. 71567- | 1 |
| 29 | 14591687 | FIXING BUTTON -Valid from Ass. Nr. 70821 to Ass.Nr. 71567- | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
