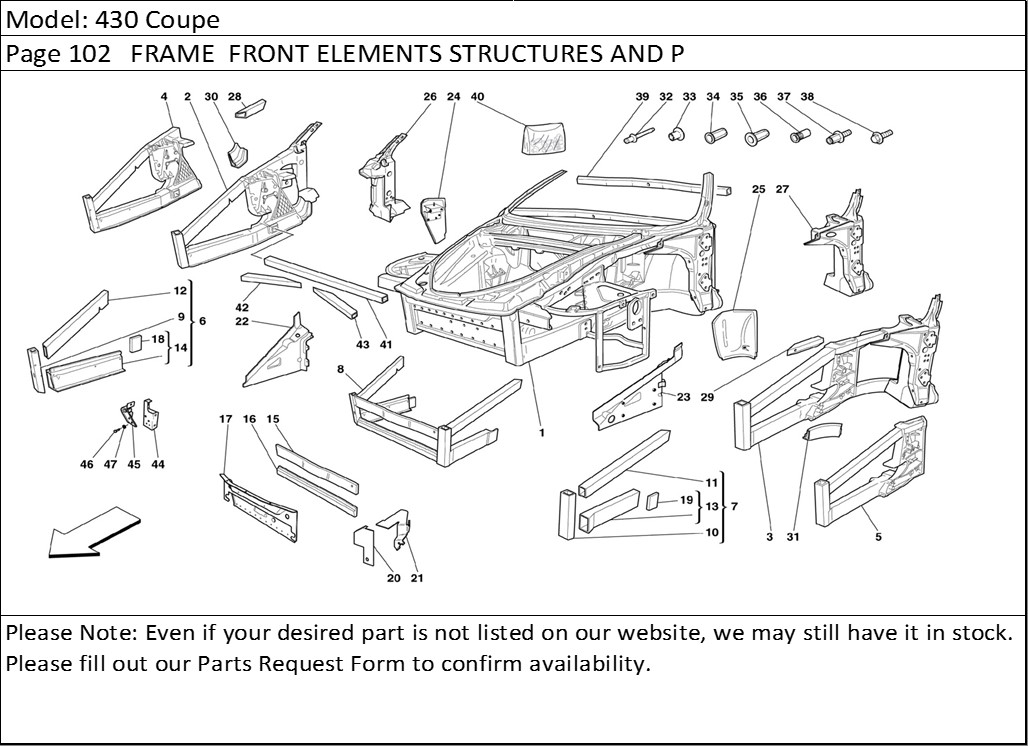

430 Coupe Page 102 FRAME FRONT ELEMENTS STRUCTURES AND P
Product Description
430 Coupe Page 102 FRAME FRONT ELEMENTS STRUCTURES AND P
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 68885211 | COMPLETE FRONT FRAME -Not for GD- | 1 |
| 1 | 69412811 | COMPLETE FRONT FRAME -Valid for GD- | 1 |
| 2 | 68885300 | COMPLETE R.H. FRONT SIDE FRAME -Not for GD- | 1 |
| 2 | 69412911 | COMPLETE R.H. FRONT SIDE FRAME -Valid for GD- | 1 |
| 3 | 68885400 | COMPLETE L.H. FRONT SIDE FRAME -Not for GD- | 1 |
| 3 | 69413011 | COMPLETE L.H. FRONT SIDE FRAME -Valid for GD- | 1 |
| 4 | 68885500 | R.H. FRONT LATERAL SPRAG | 1 |
| 5 | 68885611 | L.H. FRONT LATERAL SPRAG | 1 |
| 6 | 68885711 | COMPLETE R.H. FRONT LATERAL FRAME | 1 |
| 7 | 68885800 | COMPLETE L.H. FRONT LATERAL FRAME | 1 |
| 8 | 68885900 | COMPLETE FRONT FRAME | 1 |
| 9 | 206243 | R.H. FRONT BUMPER PILLAR | 1 |
| 10 | 206242 | L.H. FRONT BUMPER PILLAR | 1 |
| 11 | 207735 | L.M. FRAME | 1 |
| 12 | 207736 | R.H. FRAME | 1 |
| 13 | 194945 | L.H. FRONT CRUSH-BOX | 1 |
| 14 | 194946 | R.H. FRONT CRUSH-BOX | 1 |
| 15 | 166301 | FRONT UPPER CROSS MEMBER -Valid till Ass. Nr. 74671- -Valid till stock exhaustion- | 1 |
| 15 | 985166301 | FRONT UPPER CROSS MEMBER -Valid from Ass. Nr. 74672- -Valid after stock exhaustion of 166301- | 1 |
| 16 | 204966 | FRONT LOWER CROSS MEMBER | 1 |
| 17 | 68037700 | TRUNK COMPARTMENT FRONT WALL | 1 |
| 18 | 166291 | R.H. FRONT REINFORCEMENT | 1 |
| 19 | 166191 | L.H. FRONT REINFORCEMENT | 1 |
| 20 | 66395500 | R.H. BRACKET | 1 |
| 20 | 66395400 | L.H. BRACKET | 1 |
| 21 | 207175 | L.H. BRAKET FOR FRONT BUMPER FIXING | 1 |
| 21 | 207176 | R.H. BRAKET FOR FRONT BUMPER FIXING | 1 |
| 22 | 67357700 | R.H. FRONT SIDE WALL | 1 |
| 23 | 67357800 | L.H. FRONT SIDE WALL | 1 |
| 24 | 198739 | R.H. PLATE-Not for GD- | 1 |
| 24 | 207516 | R.H. PLATE -Valid for GD- | 1 |
| 25 | 207515 | L.H. PLATE -Valid for GD- | 1 |
| 25 | 198737 | L.H. PLATE-Not for GD- | 1 |
| 26 | 68886011 | COMPLETE R.H. DOOR PILLAR | 1 |
| 27 | 68886100 | COMPLETE L.H. DOOR PILLAR | 1 |
| 28 | 196005 | R.H. UPPER FRAME | 1 |
| 29 | 196004 | L.H. UPPER FRAME | 1 |
| 30 | 166215 | R.H. LOWER FRAME | 1 |
| 31 | 166115 | L.H. LOWER FRAME | 1 |
| 32 | 14642891 | POP RIVET L. 14 mm | |
| 33 | 65133800 | RIVET L. 6,4 mm | |
| 34 | 15624211 | ESAGONAL RIVET M4 | |
| 34 | 15180411 | BLIND ESAGONAL RIVET | |
| 34 | 15624511 | ESAGONAL RIVET M8 | |
| 34 | 15624411 | ESAGONAL RIVET M6 | |
| 34 | 15624311 | ESAGONAL RIVET M5 | |
| 35 | 65151200 | RIVET M6 | |
| 36 | 60853400 | RIVET | |
| 36 | 65319800 | RIVET M8 BLIND | |
| 36 | 65930400 | RIVET M6 | |
| 36 | 65135000 | RIVET M8 | |
| 36 | 166101 | RIVET M4 | |
| 37 | 65065400 | STUD ESAGONAL HEAD M6 | |
| 38 | 13836771 | SCREW | |
| 39 | 193754 | UNDER WINDSCREEN CROSS MEMBER -Not for GD- Not as spare part now- -Replaced by 193754- | 1 |
| 39 | 193754 | UNDER WINDSCREEN CROSS MEMBER -Not for GD- | 1 |
| 39 | 217012 | UNDER WINDSCREEN CROSS MEMBER -Valid for GD- | 1 |
| 40 | 70000950 | INSERTS KIT FOR REPAIR | 1 |
| 41 | 207357 | COMPLETE CROSS MEMBER | 1 |
| 42 | 196003 | R.H. FRONT REINFORCEMENT | 1 |
| 43 | 209306 | L.H. FRONT REINFORCEMENT | 1 |
| 44 | 214462 | BRACKET FOR TOW HOOK | 1 |
| 45 | 214490 | TOW HOOK | 1 |
| 46 | 16043421 | SCREW | 6 |
| 47 | 12642721 | WASHER | 6 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
