430 Coupe Page 103 CENTRAL SIDE ELEMENTS AND PLATES
Product Description
430 Coupe Page 103 CENTRAL SIDE ELEMENTS AND PLATES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

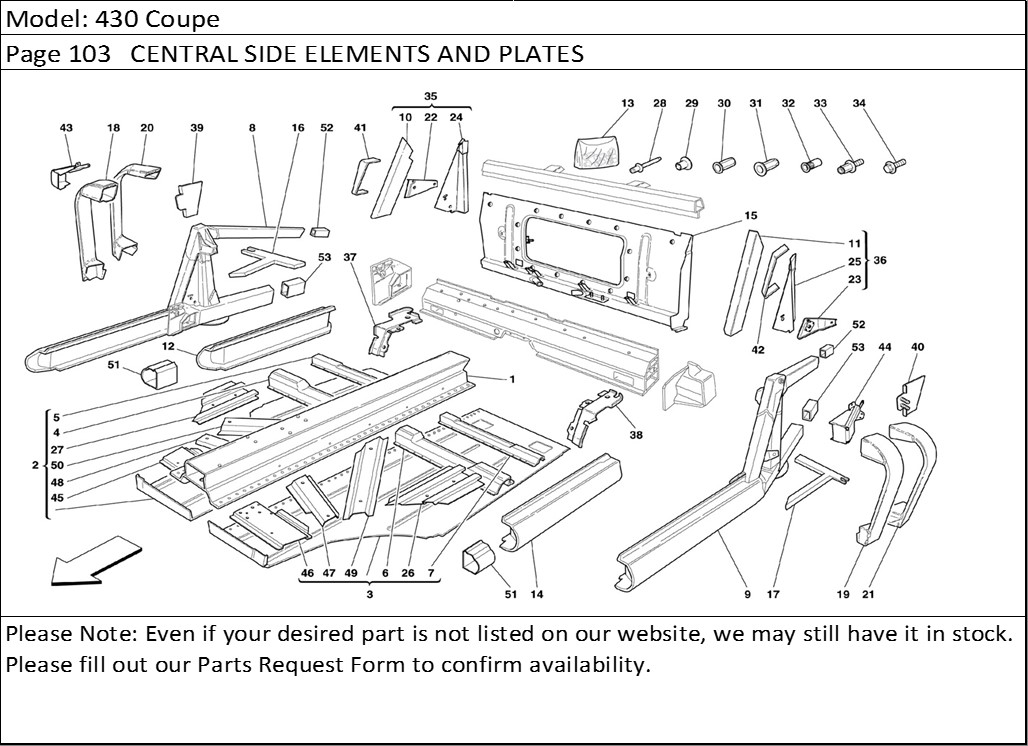

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 194938 | COMPLETE TUNNEL | 1 |
| 2 | 68886300 | COMPLETE R.H. LATERAL HALF FLOOR -Not for GD- | 1 |
| 2 | 69413211 | COMPLETE R.H. LATERAL HALF FLOOR -Valid for GD- | 1 |
| 3 | 68886400 | COMPLETE L.H. LATERAL HALF FLOOR -Not for GD- | 1 |
| 3 | 69413311 | COMPLETE L.H. LATERAL HALF FLOOR -Valid for GD- | 1 |
| 4 | 207193 | R.H. FRONT CROSS MEMBER | 1 |
| 5 | 205203 | R.H. REAR CROSS MEMBER | 1 |
| 6 | 207192 | L.H. FRONT CROSS MEMBER | 1 |
| 7 | 205202 | L.H. REAR CROSS MEMBER | 1 |
| 8 | 68886500 | R.H. LATERAL REAR CROSSMEMBAR | 1 |
| 9 | 68886600 | L.H. LATERAL REAR CROSSMEMBAR | 1 |
| 10 | 166232 | R.H. REINFORCEMENT FRAME | 1 |
| 11 | 166132 | L.H. REINFORCEMENT FRAME | 1 |
| 12 | 201435 | R.H. CROSSMEMBER | 1 |
| 13 | 70000950 | INSERTS KIT FOR REPAIR | 1 |
| 14 | 201434 | L.H. CROSSMEMBER | 1 |
| 15 | 202560 | REAR SHIELD | 1 |
| 16 | 64811011 | R.H. REAR FIXING FRAME | 1 |
| 17 | 64811111 | L.H. REAR FIXING FRAME | 1 |
| 18 | 65153400 | R.H. FRONT SIDE MOLDING | 1 |
| 19 | 65153511 | L.H. FRONT SIDE MOLDING | 1 |
| 20 | 65998100 | R.H. REAR SIDE MOLDING | 1 |
| 21 | 65998200 | L.H. REAR SIDE MOLDING | 1 |
| 22 | 64804300 | R.H. REWINDER FIXING REINFORCEMENT | 1 |
| 23 | 64804400 | L.H. REWINDER FIXING REINFORCEMENT | 1 |
| 24 | 64803500 | R.H. LATERAL SEAL | 1 |
| 25 | 64803600 | L.H. LATERAL SEAL | 1 |
| 26 | 196081 | L.H. REINFORCEMENT | 1 |
| 27 | 196082 | R.H. REINFORCEMENT | 1 |
| 28 | 14642891 | POP RIVET L. 14 mm | |
| 29 | 65133800 | RIVET L. 6,4 mm | |
| 30 | 15624311 | ESAGONAL RIVET M5 | |
| 30 | 15624411 | ESAGONAL RIVET M6 | |
| 30 | 15624511 | ESAGONAL RIVET M8 | |
| 30 | 15180411 | BLIND ESAGONAL RIVET | |
| 30 | 15624211 | ESAGONAL RIVET M4 | |
| 31 | 65151200 | RIVET M6 | |
| 32 | 166101 | RIVET M4 | |
| 32 | 65135000 | RIVET M8 | |
| 32 | 65930400 | RIVET M6 | |
| 32 | 65319800 | RIVET M8 BLIND | |
| 32 | 60853400 | RIVET M10 BLIND | |
| 33 | 65065400 | STUD ESAGONAL HEAD M6 | |
| 34 | 13836771 | SCREW | |
| 35 | 66464800 | R.H. PANEL UPPER FRAME | 1 |
| 36 | 66464900 | L.H. PANEL UPPER FRAME | 1 |
| 37 | 65386100 | R.H. SUPPORT CENTRAL OVERLAP | 1 |
| 38 | 65386200 | L.H. SUPPORT CENTRAL OVERLAP | 1 |
| 39 | 182624 | R.H. FUEL TANK PROTECTION PLATE -Not as spare part now- -Replaced by 219918- | 1 |
| 39 | 219918 | R.H. FUEL TANK PROTECTION PLATE | 1 |
| 40 | 182623 | L.H. FUEL TANK PROTECTION PLATE -Not as spare part now- -Replaced by 219843- | 1 |
| 40 | 219843 | L.H. FUEL TANK PROTECTION PLATE | 1 |
| 41 | 65903600 | R.H. STRIKER REINFORCEMENT | 1 |
| 42 | 65903700 | L.H. STRIKER REINFORCEMENT | 1 |
| 43 | 202682 | R.H. REAR REINFORCEMENT | 1 |
| 44 | 202681 | L.H. REAR REINFORCEMENT | 1 |
| 45 | 207194 | FRONT CROSS MEMBER FOR BATTERY BIN -Not for GD- | 1 |
| 45 | 208941 | FRONT CROSS MEMBER FOR BATTERY BIN -Valid for GD- | 1 |
| 46 | 207195 | FRONT CROSS MEMBER FOR ACCELERATOR PEDAL CASTING FIXING -Not for GD- | 1 |
| 46 | 208940 | FRONT CROSS MEMBER FOR ACCELERATOR PEDAL CASTING FIXING -Valid for GD- | 1 |
| 47 | 207196 | L.H. FRONT REINFORCEMENT | 1 |
| 48 | 208939 | R.H. FRONT REINFORCEMENT -Valid for GD- | 1 |
| 48 | 207197 | R.H. FRONT REINFORCEMENT -Not for GD- | 1 |
| 49 | 207198 | L.H. REAR REINFORCEMENT -Not as spare part now- -Replaced by 207198- | 1 |
| 49 | 207198 | L.H. REAR REINFORCEMENT | 1 |
| 50 | 207199 | R.H. REAR REINFORCEMENT -Not as spare part now- -Replaced by 207199- | 1 |
| 50 | 207199 | R.H. REAR REINFORCEMENT | 1 |
| 51 | 181981 | CORE FOR REPAIR | |
| 52 | 181980 | UPPER INNER CORE | |
| 53 | 181979 | LOWER INNER CORE | |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
