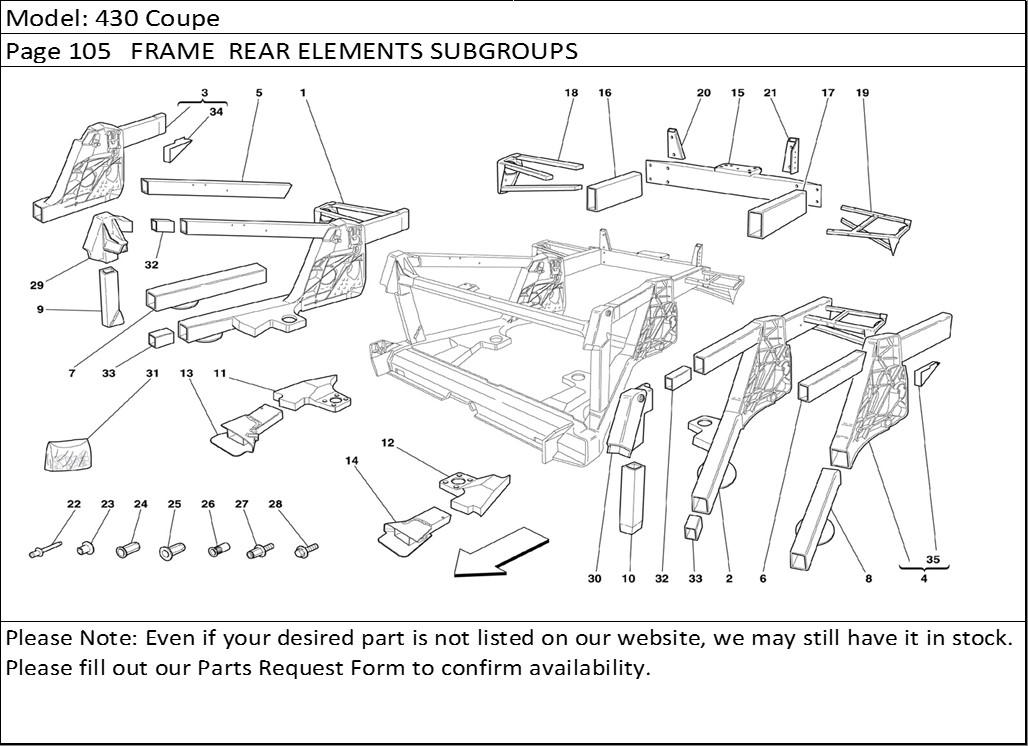

430 Coupe Page 105 FRAME REAR ELEMENTS SUBGROUPS
Product Description
430 Coupe Page 105 FRAME REAR ELEMENTS SUBGROUPS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 68887311 | COMPLETE R.H. SIDE FRAME | 1 |
| 2 | 68887400 | COMPLETE L.H. SIDE FRAME | 1 |
| 3 | 68887511 | R.H. REAR LATERAL CASTING | 1 |
| 4 | 68887600 | L.H. REAR LATERAL CASTING | 1 |
| 5 | 202584 | R.H. UPPER FRAME | 1 |
| 6 | 202583 | L.H. UPPER FRAME | 1 |
| 7 | 212303 | R.H. LOWER FRAME | 1 |
| 8 | 212302 | L.H. LOWER FRAME | 1 |
| 9 | 66051200 | COMPLETE R.H. REAR PANEL | 1 |
| 10 | 66051100 | COMPLETE L.H. REAR PANEL | 1 |
| 11 | 6234102 | R.H. BRACKET ENGINE SUPPORT | 1 |
| 12 | 6234101 | L.H. BRACKET ENGINE SUPPORT | 1 |
| 13 | 65942200 | R.H. SUPPORT FOR BRACKET | 1 |
| 14 | 65942300 | L.H. SUPPORT FOR BRACKET | 1 |
| 15 | 215081 | REAR BUMPER CROSS MEMBER | 1 |
| 16 | 207272 | R.H. REAR FRAME | 1 |
| 17 | 207271 | L.H. REAR FRAME | 1 |
| 18 | 80084211 | R.H. REAR FENDER FRAME -Valid for CINA- | 1 |
| 18 | 67679200 | R.H. REAR FENDER FRAME -Not for CINA- | 1 |
| 19 | 67780211 | L.H. REAR FENDER FRAME | 1 |
| 20 | 68027000 | R.H. SIDE BRACKET | 1 |
| 21 | 68027100 | L.H. SIDE BRACKET | 1 |
| 22 | 14642891 | POP RIVET L. 14 mm | |
| 23 | 65133800 | RIVET L. 6,4 mm | |
| 24 | 15624211 | ESAGONAL RIVET M4 | |
| 24 | 15180411 | BLIND ESAGONAL RIVET | |
| 24 | 15624511 | ESAGONAL RIVET M8 | |
| 24 | 15624411 | ESAGONAL RIVET M6 | |
| 24 | 15624311 | ESAGONAL RIVET M5 | |
| 25 | 65151200 | RIVET M6 | |
| 26 | 60853400 | RIVET M10 BLIND | |
| 26 | 65319800 | RIVET M8 BLIND | |
| 26 | 65930400 | RIVET M6 | |
| 26 | 65135000 | RIVET M8 | |
| 26 | 166101 | RIVET M4 | |
| 27 | 65065400 | STUD ESAGONAL HEAD M6 | |
| 28 | 13836771 | SCREW | |
| 29 | 6166261 | R.H. UPPER FUSION REAR PILLAR | 1 |
| 30 | 6166161 | L.H. UPPER FUSION REAR PILLAR | 1 |
| 31 | 70000950 | INSERTS KIT FOR REPAIR | 1 |
| 32 | 181980 | UPPER INNER CORE | |
| 33 | 181979 | ER INNER CORE | |
| 34 | 196575 | R.H. REINFORCEMENT | 1 |
| 35 | 196574 | L.H. REINFORCEMENT | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
