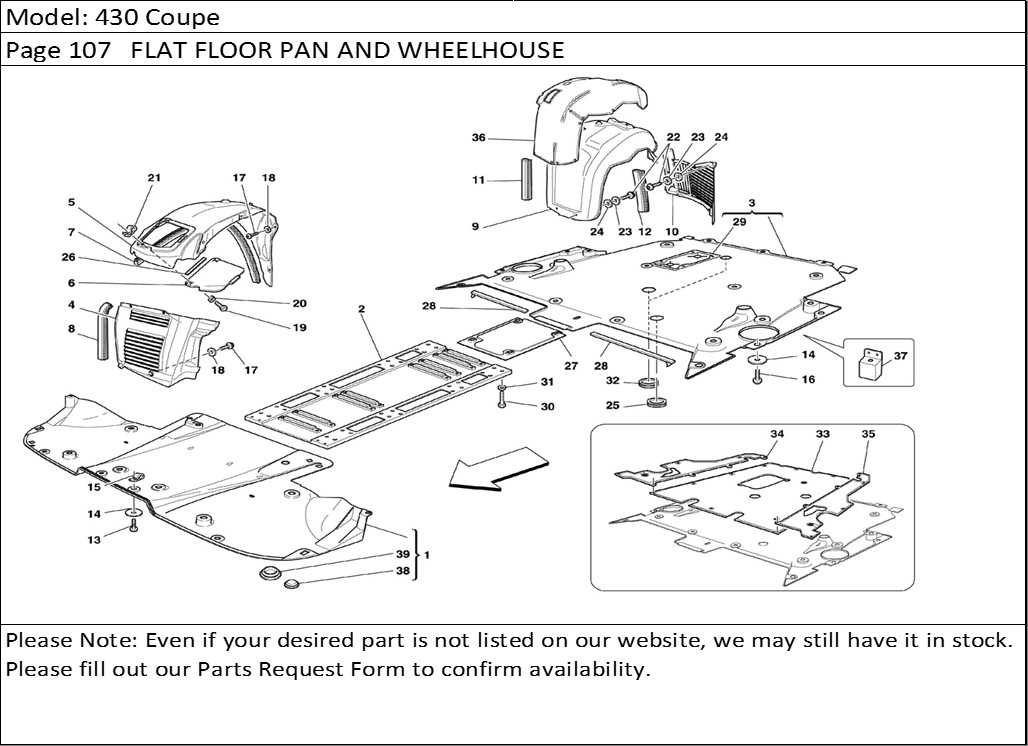

430 Coupe Page 107 FLAT FLOOR PAN AND WHEELHOUSE
Product Description
430 Coupe Page 107 FLAT FLOOR PAN AND WHEELHOUSE
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 80494600 | FRONT UNDER THE BODY SHELL SHIELD -Not as spare part- -Replaced by 80494600- | 1 |
| 1 | 80494600 | FRONT UNDER THE BODY SHELL SHIELD | 1 |
| 2 | 198642 | TUNNEL REINFORCEMENT | 1 |
| 3 | 68373000 | REAR UNDER THE BODY SHELL SHIELD | 1 |
| 4 | 80255900 | FRONT GRAVEL GUARD FOR L.H. FRONT WHEEL -Valid after stock exhaustion of 67256500- | 1 |
| 4 | 80255900 | FRONT GRAVEL GUARD FOR L.H. FRONT WHEEL -Valid till stock exhaustion- | 1 |
| 4 | 80255800 | FRONT GRAVEL GUARD FOR R.H. FRONT WHEEL -Valid after stock exhaustion of 67256400- | 1 |
| 4 | 80255800 | FRONT GRAVEL GUARD FOR R.H. FRONT WHEEL -Valid till stock exhaustion- | 1 |
| 5 | 67957400 | R.H. FRONT WHEELHOUSE OUTER CARPET SHIELD | 1 |
| 5 | 67964900 | L.H. FRONT WHEELHOUSE OUTER CARPET SHIELD | 1 |
| 6 | 65522300 | R.H. WHEELHOUSE DOOR | 1 |
| 6 | 65522400 | L.H. WHEELHOUSE DOOR | 1 |
| 7 | 68036400 | GASKET | 2 |
| 8 | 64994500 | GASKET -Not as spare part- | 2 |
| 9 | 67957300 | R.H. REAR WHEELHOUSE -Front side- | 1 |
| 9 | 67957200 | L.H. REAR WHEELHOUSE -Front side- | 1 |
| 10 | 80256000 | R.H. GRAVEL GUARD FOR REAR WHEEL -Valid till stock exhaustion- | 1 |
| 10 | 80256000 | R.H. GRAVEL GUARD FOR REAR WHEEL -Valid after stock exhaustion of 67964400- | 1 |
| 10 | 80256100 | L.H. GRAVEL GUARD FOR REAR WHEEL -Valid till stock exhaustion- | 1 |
| 10 | 80256100 | L.H. GRAVEL GUARD FOR REAR WHEEL -Valid after stock exhaustion of 67964500- | 1 |
| 11 | 64865000 | GASKET -Not as spare part- | 2 |
| 12 | 68034900 | GASKET | 2 |
| 13 | 10902424 | SCREW | 16 |
| 14 | 66121400 | WASHER | 34 |
| 15 | 14189071 | BRACKET | 6 |
| 16 | 10902424 | SCREW | 23 |
| 17 | 13276477 | SCREW | 10 |
| 18 | 11197777 | WASHER | 10 |
| 19 | 10977887 | SCREW | 4 |
| 20 | 12638178 | WASHER -Not as spare part- -Replaced by 12638178- | 4 |
| 20 | 12638178 | WASHER | 4 |
| 21 | 66927700 | BRACKET | 4 |
| 22 | 13276477 | SCREW | 18 |
| 23 | 11197777 | WASHER | 18 |
| 24 | 12643724 | WASHER | 18 |
| 25 | 64783600 | PROTECTION PLUG | 1 |
| 26 | 66092500 | ANTI-VIBRATION GASKET | 2 |
| 27 | 68023300 | CENTRAL UNDER THE BODY SHELL SHIELD | 1 |
| 28 | 68035000 | GASKET | 2 |
| 29 | 68372600 | OIL FILTER ISPECTION DOOR | 1 |
| 30 | 205370 | SCREW -M 6 x 25- | 16 |
| 30 | 210246 | SCREW -M 8 x 25- | 32 |
| 31 | 12646727 | WASHER -8,45 x 20 x 2- | 32 |
| 31 | 12639727 | WASHER-6,45x 11x1- | 16 |
| 32 | 63965800 | PLUG | 2 |
| 33 | 69403900 | CENTRAL INSULATION | 1 |
| 34 | 69403800 | R.H. INSULATION | 1 |
| 35 | 69404000 | L.H. INSULATION | 1 |
| 36 | 80071600 | L.H. WHEELHOUSE INSULATION -Valid till stock exhaustion of 69403500- | 1 |
| 36 | 69403500 | L.H. WHEELHOUSE INSULATION -Valid till stock exhaustion- | 1 |
| 36 | 80071200 | R.H. WHEELHOUSE INSULATION -Valid after stock exhaustion of 69403400- | 1 |
| 36 | 80071200 | R.H. WHEELHOUSE INSULATION -Valid till stock exhaustion- | 1 |
| 37 | 68502300 | BRACKET | 1 |
| 38 | 14623187 | PLUG | 1 |
| 39 | 14507787 | PLUG | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
