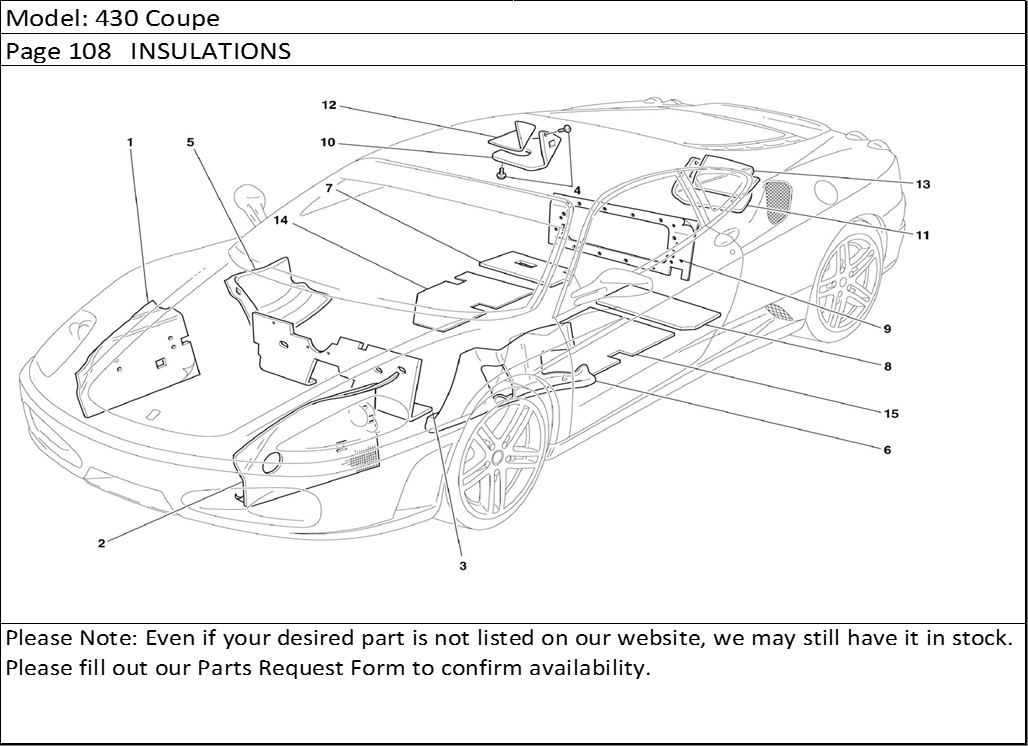

430 Coupe Page 108 INSULATIONS
Product Description
430 Coupe Page 108 INSULATIONS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 69619600 | OUTER FRONT R.H. INSULATION -Valid till stock exhaustion- | 1 |
| 1 | 69619600 | OUTER FRONT R.H. INSULATION -Valid after stock exhaustion of 68355800- | 1 |
| 2 | 69619700 | OUTER FRONT L.H. INSULATION -Valid till stock exhaustion- | 1 |
| 2 | 69619700 | OUTER FRONT L.H. INSULATION -Valid after stock exhaustion of 68355900- | 1 |
| 3 | 80677500 | DASH PANEL SIDE INSULATION -Valid for GD- -Valid after stock exhaustion of 68509200- | 1 |
| 3 | 68509200 | DASH PANEL SIDE INSULATION -Valid for GD- -Valid till stock exhaustion- | 1 |
| 3 | 80677300 | DASH PANEL SIDE INSULATION -Not for GD- -Valid after stock exhaustion of 68507500- | 1 |
| 3 | 68507500 | DASH PANEL SIDE INSULATION -Not for GD- -Valid till stock exhaustion- | 1 |
| 4 | 66252500 | BUTTON | 6 |
| 5 | 68507300 | FRONT R.H. WHEELHOUSE INSULATION -Not for GD- -Valid till stock exhaustion- | 1 |
| 5 | 80677700 | FRONT R.H. WHEELHOUSE INSULATION -Not for GD- -Valid after stock exhaustion of 68507300- | 1 |
| 5 | 68509000 | FRONT R.H. WHEELHOUSE INSULATION -Valid for GD- -Valid till stock exhaustion- | 1 |
| 5 | 80677800 | FRONT R.H. WHEELHOUSE INSULATION -Valid for GD- -Valid after stock exhaustion of 68509000- | 1 |
| 6 | 80678000 | FRONT L.H. WHEELHOUSE INSULATION -Valid for GD- -Valid after stock exhaustion of 68509100- | 1 |
| 6 | 68509100 | FRONT L.H. WHEELHOUSE INSULATION -Valid for GD- -Valid till stock exhaustion- | 1 |
| 6 | 80677900 | FRONT L.H. WHEELHOUSE INSULATION -Not for GD- -Valid after stock exhaustion of 68507400- | 1 |
| 6 | 68507400 | FRONT L.H. WHEELHOUSE INSULATION -Not for GD- -Valid till stock exhaustion- | 1 |
| 7 | 68506900 | R.H. REAR INSULATION -Valid till stock exhaustion- | 1 |
| 7 | 80678100 | R.H. REAR INSULATION -Valid after stock exhaustion of 68506900- | 1 |
| 8 | 68507000 | L.H. REAR INSULATION -Valid till stock exhaustion- | 1 |
| 8 | 80678200 | L.H. REAR INSULATION -Valid after stock exhaustion ofl 68507000- | 1 |
| 9 | 68356000 | MOTOR COMPARTMENT REAR SIDE INSULATION -Valid till stock exhaustion- | 1 |
| 9 | 69619800 | MOTOR COMPARTMENT REAR SIDE INSULATION -Valid after stock exhaustion of 68356000- | 1 |
| 10 | 65840800 | MOTOR COMPARTMENT/FUEL TANK R.H. INSULATION | 1 |
| 11 | 65840700 | MOTOR COMPARTMENT/FUEL TANK L.H. INSULATION | 1 |
| 12 | 65303300 | R.H. SMALL PLANE INSULATION -Not as spare part- -Replaced by 69979900- | 1 |
| 12 | 69979900 | R.H. SMALL PLANE INSULATION | 1 |
| 13 | 65303400 | L.H. SMALL PLANE INSULATION -Not as spare part- -Replaced by 69980000- | 1 |
| 13 | 69980000 | L.H. SMALL PLANE INSULATION | 1 |
| 14 | 68507100 | R.H. PLATFORM INSULATION -Valid till stock exhaustion- | 1 |
| 14 | 80678300 | R.H. PLATFORM INSULATION -Valid after stock exhaustion of 68507100- | 1 |
| 15 | 68507200 | L.H. PLATFORM INSULATION -Valid till stock exhaustion- | 1 |
| 15 | 80678400 | L.H. PLATFORM INSULATION -Valid after stock exhaustion of 68507200- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
