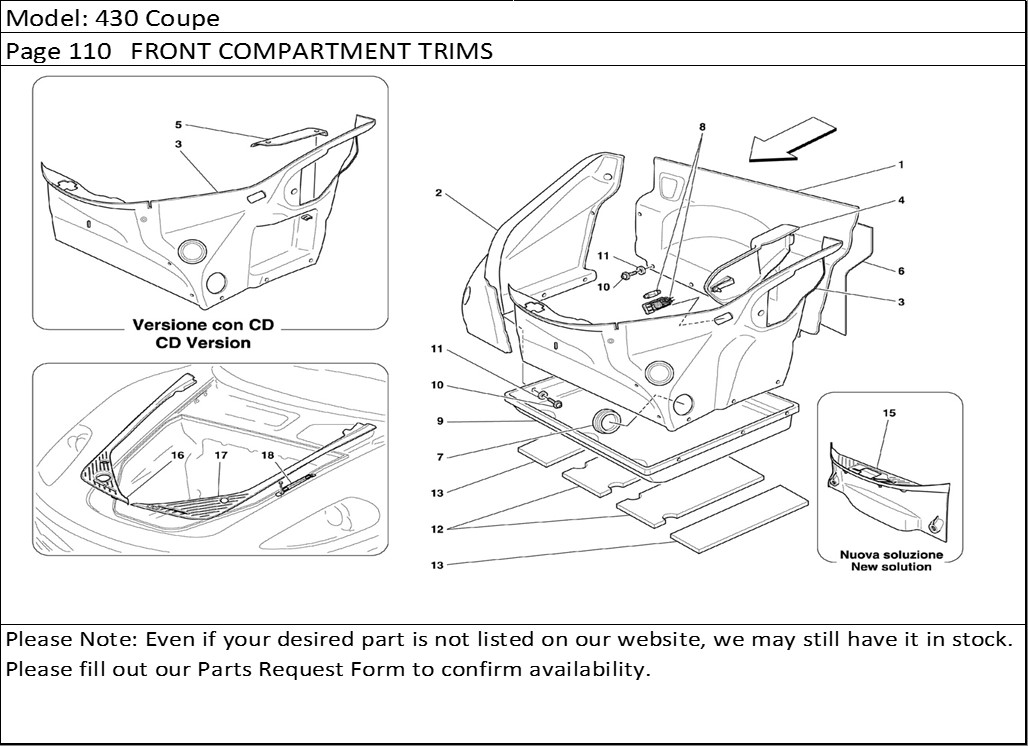

430 Coupe Page 110 FRONT COMPARTMENT TRIMS
Product Description
430 Coupe Page 110 FRONT COMPARTMENT TRIMS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 68140000 | TRUNK HOOD MOBILE REAR WALL | 1 |
| 2 | 68511100 | R.H. SIDE SHIELD | 1 |
| 3 | 80665900 | L.H. SIDE SHIELD -CD Version- -Valid from Ass. Nr. 74672- | 1 |
| 3 | 68511400 | L.H. SIDE SHIELD -CD Version- -Valid till Ass. Nr. 74671- | 1 |
| 3 | 80665800 | L.H. SIDE SHIELD -Not for CD version- -Valid from Ass. Nr. 74672- | 1 |
| 3 | 68511200 | L.H. SIDE SHIELD -Not for CD version- -Valid till Ass. Nr. 74671- | 1 |
| 4 | 68511300 | FUSES INSPECTION DOOR | 1 |
| 5 | 68511600 | CD COMPARTMENT COVER -CD Version- | 1 |
| 6 | 68647100 | TER PROTECTION CLOTH | 1 |
| 7 | 63965800 | PLUG | 4 |
| 8 | 139517 | DOME LAMP | 1 |
| 9 | 68510800 | LOWER STEP | 1 |
| 10 | 66091000 | SCREW -L=25mm- | 11 |
| 10 | 65933500 | SCREW-L=15mm- | 10 |
| 10 | 65970400 | SCREW-L=15mm- | 10 |
| 11 | 65841100 | WASHER | 11 |
| 12 | 68510900 | CENTRAL INSULATION | 2 |
| 13 | 68511000 | LATERAL INSULATION | 2 |
| 14 | 10863090 | 12V-5W BULB | 1 |
| 15 | 80599900 | PLATE -Valid from Ass. Nr. 74672- | 1 |
| 16 | 80599600 | R.H. PLATE | 1 |
| 17 | 80599700 | L.H. PLATE | 1 |
| 18 | 80599400 | BRACKET | 4 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
