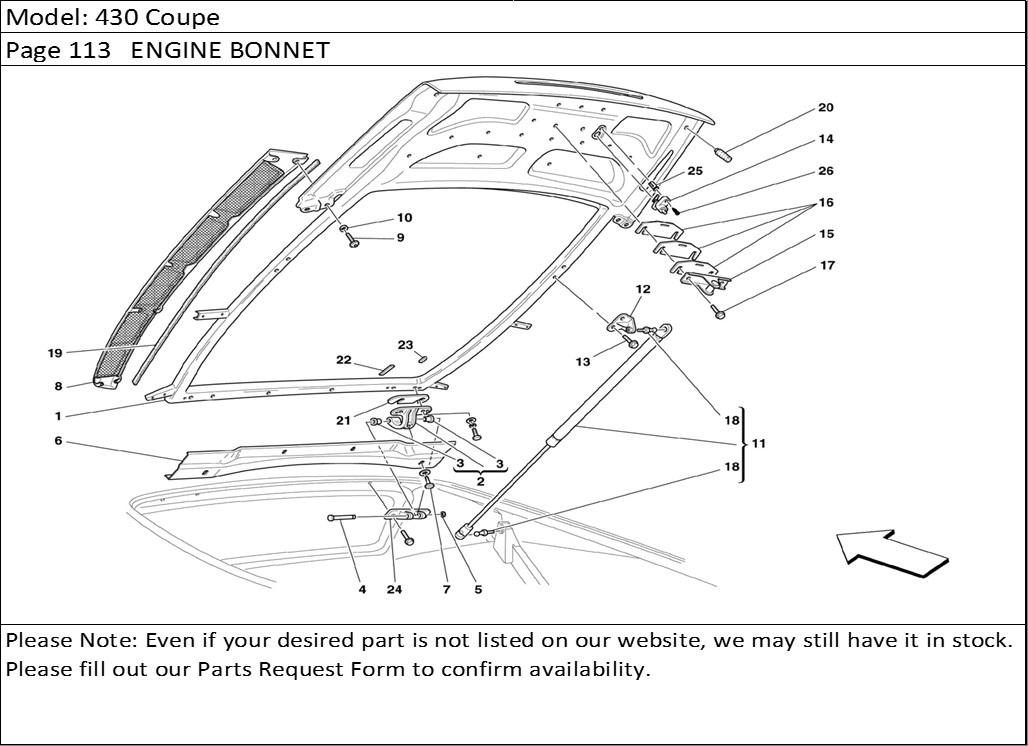

430 Coupe Page 113 ENGINE BONNET
Product Description
430 Coupe Page 113 ENGINE BONNET
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 67767511 | SHEETED REAR HOOD BONNET | 1 |
| 2 | 64877500 | R.H. MOBILE HINGE | 1 |
| 2 | 64877600 | L.H. MOBILE HINGE | 1 |
| 3 | 62825300 | HINGE BUSHING | 4 |
| 4 | 64807100 | PIN | 2 |
| 5 | 11087974 | FLEXIBLE RING | 2 |
| 6 | 65398800 | FRONT HOOD CONTOUR | 1 |
| 7 | 65864100 | SCREW | 4 |
| 8 | 68500900 | R.H. GRILL -Carbon Version- | 1 |
| 8 | 68997800 | R.H. GRILL-Black- | 1 |
| 8 | 68075000 | R.H. GRILL -Grey- | 1 |
| 8 | 68501000 | L.H. GRILL -Carbon Version- | 1 |
| 8 | 68997900 | L.H. GRILL-Black- | 1 |
| 8 | 68075100 | L.H. GRILL -Grey- | 1 |
| 9 | 65864100 | SCREW -Standard- | 16 |
| 9 | 168133 | SCREW -For Carbon version grill- | 16 |
| 10 | 12644478 | SHER | 16 |
| 11 | 65855000 | GAS SPRING | 2 |
| 12 | 65526300 | BRACKET | 2 |
| 13 | 16286024 | SCREW | 4 |
| 14 | 143331 | ADDITIONAL STOP LIGHT MOBILE CONTACT | 1 |
| 15 | 64867900 | HOOD CLOSING STRIKER | 1 |
| 16 | 65524800 | ADJUSTING PLATE -Possible fitting- | 4 |
| 17 | 16286027 | SCREW | 2 |
| 18 | 65939900 | PIN | 2 |
| 19 | 65979200 | GASKET | 2 |
| 20 | 62167600 | SMALL BLOCK | 2 |
| 21 | 66073100 | THICKNESS | 2 |
| 22 | 65714600 | SPACER | 4 |
| 23 | 63023300 | SPACER | 2 |
| 24 | 64806700 | R.H. FIXED HINGE | 1 |
| 24 | 64806800 | L.H. FIXED HINGE | 1 |
| 25 | 14115380 | BLOCK | 1 |
| 26 | 16082401 | SCREW | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
