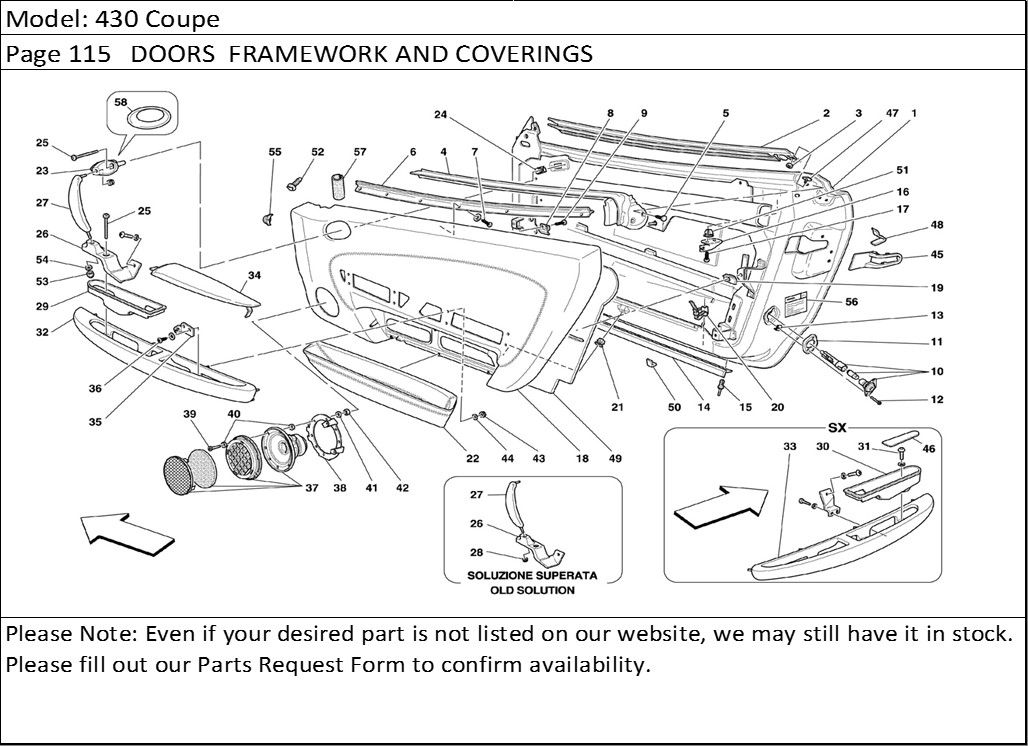

430 Coupe Page 115 DOORS FRAMEWORK AND COVERINGS
Product Description
430 Coupe Page 115 DOORS FRAMEWORK AND COVERINGS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 67766511 | R.H. DOOR FRAME -Valid till Ass. Nr. 65348 for USA and CDN- -Valid till Ass. Nr. 74919 for not GD- | 1 |
| 1 | 68489211 | L.H. DOOR FRAME -Valid from Ass. Nr. 65349 for USA and CDN- | 1 |
| 1 | 69996011 | L.H. DOOR FRAME -Without pawl- -Valid from Ass. Nr. 74920 for GD- | 1 |
| 1 | 67766211 | L.H. DOOR FRAME -Valid till Ass. Nr. 65348 for USA and CDN- -Valid till Ass. Nr. 74919 for GD- | 1 |
| 1 | 69996811 | R.H. DOOR FRAME -Without pawl- -Valid from Ass. Nr. 74920 for USA- | 1 |
| 1 | 68489311 | R.H. DOOR FRAME -Valid from Ass. Nr. 65349 for USA and CDN- -Valid till Ass. Nr. 74919- | 1 |
| 1 | 69995911 | R.H. DOOR FRAME -Without pawl- -Valid from Ass. Nr. 74920 for not GD and USA- | 1 |
| 2 | 65164400 | R.H. GASKET OUTER GLASS SCRAPER | 1 |
| 2 | 65164500 | L.H. GASKET OUTER GLASS SCRAPER | 1 |
| 3 | 14042077 | NUT | 2 |
| 4 | 65544700 | L.H. GASKET INNER GLASS SCRAPER | 1 |
| 4 | 65544600 | R.H. GASKET INNER GLASS SCRAPER | 1 |
| 5 | 14591687 | FIXING BUTTON | 4 |
| 6 | 65013000 | R.H. STRUCTURAL SHAPE | 1 |
| 6 | 65546200 | L.H. STRUCTURAL SHAPE | 1 |
| 7 | 16082901 | SCREW | 12 |
| 8 | 64595200 | FIXING CLIP | 6 |
| 9 | 16082901 | SCREW | 12 |
| 10 | 184786 | OPENING DOOR LAMP | 2 |
| 11 | 140576 | GASKET | 2 |
| 12 | 15901570 | SCREW | 4 |
| 13 | 61828500 | FIXING CLIP | 4 |
| 14 | 64855600 | GASKET | 2 |
| 15 | 62764000 | RIVET | 14 |
| 16 | 65546400 | R.H. BRACKET | 1 |
| 16 | 65547800 | L.H. BRACKET | 1 |
| 17 | 15644075 | SCREW | 4 |
| 18 | 684139 | L.H. COVERED DOOR PANEL -Valid for GD- | 1 |
| 18 | 681694 | L.H. COVERED DOOR PANEL -Not for GD- | 1 |
| 18 | 684137 | R.H. COVERED DOOR PANEL -Valid for GD- | 1 |
| 18 | 681693 | R.H. COVERED DOOR PANEL -Not for GD- | 1 |
| 19 | 14190290 | NUT | 12 |
| 20 | 177553 | CLAMP | 8 |
| 21 | 14201980 | BLOCK | 2 |
| 22 | 67839212 | COVERED L.H. UTILITY POCKET | 1 |
| 22 | 67805512 | COVERED R.H. UTILITY POCKET | 1 |
| 23 | 65157600 | R.H. HANDLE MOULDING UPPER CONNECTION -Not for GD- | 1 |
| 23 | 65159000 | R.H. HANDLE MOULDING UPPER CONNECTION -Valid for GD- | 1 |
| 24 | 14190190 | NUT | 4 |
| 25 | 68854100 | SCREW | 2 |
| 26 | 65158900 | L.H. HANDLE MOULDING LOWER CONNECTION -Valid for GD- | 1 |
| 26 | 65157500 | R.H. HANDLE MOULDING LOWER CONNECTION -Not for GD- | 1 |
| 27 | 651594 | R.H. HANDLE MOULDING KNOB -Not for GD- | 1 |
| 27 | 651595 | L.H. HANDLE MOULDING KNOB -Valid for GD- | 1 |
| 28 | 14059211 | NUT | 2 |
| 29 | 65011500 | R.H. HANDLE PLATE | 1 |
| 30 | 67958300 | L.H. PLATE FOR HANDLE | 1 |
| 31 | 13276077 | SCREW | 1 |
| 32 | 678044 | R.H. DOOR ARM-REST -Not for GD- | 1 |
| 32 | 684138 | R.H. DOOR ARM-REST -Valid for GD- | 1 |
| 33 | 678381 | L.H. DOOR ARM-REST -Not for GD- | 1 |
| 33 | 684141 | L.H. DOOR ARM-REST -Valid for GD- | 1 |
| 34 | 678398 | L.H. DOOR ARM-REST INSERT | 1 |
| 34 | 678061 | R.H. DOOR ARM-REST INSERT | 1 |
| 35 | 65075100 | R.H. BRACKET | 1 |
| 35 | 65702800 | L.H. BRACKET | 1 |
| 36 | 16082901 | SCREW | 4 |
| 37 | 80199700 | LOUD SPEAKER -Valid for powered HI FI Bose system- | 2 |
| 37 | 80199700 | LOUD SPEAKER -Valid for powered HI FI Bose system- -Not as spare part- -Replaced by 80199700- | 2 |
| 37 | 188607 | LOUD SPEAKER WOOFER -Valid for cars with radio amplifier- | 2 |
| 37 | 65865100 | LOUD SPEAKER WOOFER -Not for cars with radio amplifier- | 2 |
| 38 | 67941700 | LOUD SPEAKER R.H. SUPPORT BRACKET | 1 |
| 38 | 80293300 | LOUD SPEAKER R.H. SUPPORT BRACKET -Valid for powered HI FI Bose system- | 1 |
| 38 | 67960500 | LOUD SPEAKER L.H. SUPPORT BRACKET | 1 |
| 38 | 80322400 | LOUD SPEAKER L.H. SUPPORT BRACKET -Valid for powered HI FI Bose system- | 1 |
| 39 | 10444887 | SCREW | 7 |
| 40 | 14497701 | WASHER | 14 |
| 41 | 12601074 | WASHER | 7 |
| 42 | 10721911 | NUT | 7 |
| 43 | 15896470 | NUT | 16 |
| 44 | 12638104 | WASHER | 16 |
| 45 | 68640600 | R.H. PLATE | 1 |
| 45 | 68640700 | L.H. PLATE | 1 |
| 46 | 679602 | COVER | 1 |
| 47 | 67194200 | SMALL PLATE | 2 |
| 48 | 65705300 | CLIP | 4 |
| 49 | 68643600 | R.H. WATER PROTECTION CLOTH | 1 |
| 49 | 68643700 | L.H. WATER PROTECTION CLOTH | 1 |
| 50 | 67111400 | RUBBER | 4 |
| 51 | 14201980 | BLOCK | 4 |
| 52 | 66805100 | PIN -Not as spare part now- -Replaced by 68297800- | 4 |
| 52 | 68297800 | PIN | 4 |
| 53 | 14137721 | NUT | 2 |
| 54 | 12648221 | WASHER | 2 |
| 55 | 69724300 | PLUG | 4 |
| 56 | 199130 | MERCURY PLATE -Valid for USA and CDN- | 1 |
| 57 | 179309 | ADHESIVE SPONGE -100 x 50mm- | 2 |
| 57 | 198916 | ADHESIVE SPONGE -150 x 50mm- | 2 |
| 58 | 67958000 | PLATE-Not for GD- | 1 |
| 58 | 68379400 | PLATE -Valid for GD- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
