Home > 430 Coupe Page 116 DOORS OPENING CONTROL AND HINGES

430 Coupe Page 116 DOORS OPENING CONTROL AND HINGES

Product Description

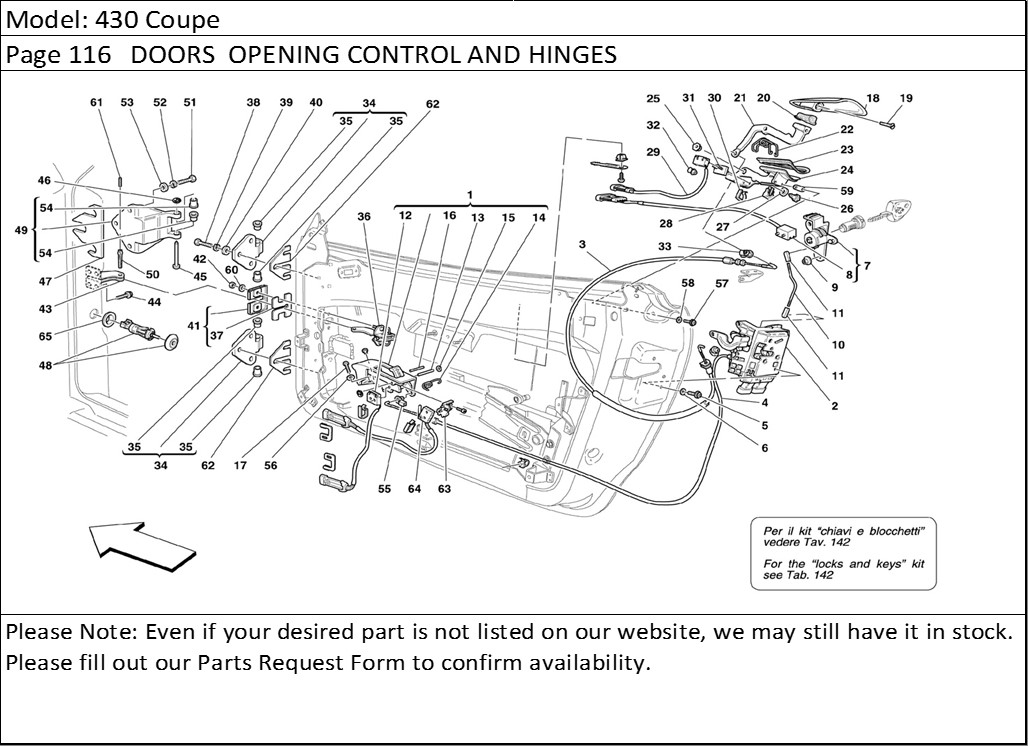

430 Coupe Page 116 DOORS OPENING CONTROL AND HINGES

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	68884500	R.H. INNER HANDLE FOR DOOR OPENING -Not as spare part now- -Replaced by 68884500-	1
1	68884500	R.H. INNER HANDLE FOR DOOR OPENING	1
1	68884600	L.H. INNER HANDLE FOR DOOR OPENING -Not as spare part now- -Replaced by 68884600-	1
1	68884600	L.H. INNER HANDLE FOR DOOR OPENING	1
2	80355300	L.H. DOOR LOCK -Without pawl- -Valid from Ass. Nr. 74919 for GD-	1
2	65836200	L.H. DOOR LOCK -Valid till Ass. Nr. 74918 for GD-	1
2	80355200	R.H. DOOR LOCK -Without pawl- -Valid from Ass. Nr. 74919 for not GD-	1
2	65836100	R.H. DOOR LOCK -Valid till Ass. Nr. 74918 for not GD-	1
3	68602600	DOOR OPENING OUTER CABLE	1
4	68883400	DOOR OPENING INNER CABLE	2
4	65069300	DOOR OPENING INNER CABLE -Not as spare part now- -Replaced by 68883400-	2
5	62940900	SCREW	6
6	13550277	WASHER	6
7	65839400	R.H. DOOR LOCK BLOCK -Valid till Ass. Nr. 74896 for not GD-	1
7	65839500	L.H. DOOR LOCK BLOCK -Valid till Ass. Nr. 74896 for GD-	1
8	63859200	L.H. MICRO-SWITCH -Valid till Ass. Nr. 74896 for GD-	1
8	63859200	R.H. MICRO-SWITCH -Valid till Ass. Nr. 74896 for not GD-	1
9	13046011	NUT -Q.ty 2 from Ass. Nr. 74897-	4
10	65836500	SAFETYTIE ROD -Q.ty 1 from Ass. Nr. 74897-	2
11	62794000	FLEXIBLE JOINT -Q.ty 2 from Ass. Nr. 74897-	4
12	171120	MICRO-SWITCH	2
13	63723400	PIN	2
14	63724600	R.H. SPRING	1
14	63724700	L.H. SPRING	1
15	11087476	FLEXIBLE RING	2
16	65582700	FLEXIBLE PIN	2
17	13274177	SCREW	2
18	63576110	L.H. OUTER DOOR HANDLE	1
18	63576010	R.H. OUTER DOOR HANDLE	1
19	13309277	SCREW	2
20	64861100	R.H. INNER GASKET	1
20	64861200	L.H. INNER GASKET	1
21	64860600	LEVER	2
22	64860700	SPRING FOR HANDLE	2
23	64860900	R.H. HANDLE GASKET	1
23	64861000	L.H. HANDLE GASKET	1
24	64860410	R.H. HANDLE SEAT	1
24	64860510	L.H. HANDLE SEAT	1
25	65398700	BUSHING	2
26	64860800	PIN	2
27	65520700	WASHER	4
28	65398600	GUIDE	2
29	178187	MICRO-SWITCH	2
30	63179900	FIXING CLIP	2
31	65806300	PLATE	2
32	63853400	RUBBER PAD	2
33	14578180	CLIP	2
34	64803300	MOBILE HINGE	4
35	62825300	BUSHING	8
36	65195200	TIE ROD	2
37	63892300	GASKET	2
38	16043934	SCREW	12
39	11194074	WASHER	12
39	10571779	SHER -Not as spare part- -Replaced by 11194074-	12
40	14496578	WASHER	12
41	63895200	R.H. PLATE	1
41	63895300	L.H. PLATE	1
42	102741	NUT	4
43	67111800	BRACKET	2
44	13836971	SCREW -Not as spare part- -Replaced by 230083-	8
44	230083	SCREW	8
45	64803400	PIN	4
46	11087974	FLEXIBLE RING	4
47	65713400	THICKNESS	4
48	179697	PILLAR SWITCH	2
49	64803200	FIXED HINGE	4
50	66842800	PIN	2
51	16043534	SCREW	12
52	10571779	WASHER -Not as spare part- -Replaced by 11194074-	12
52	11194074	WASHER	12
53	13550405	WASHER	12
54	62825300	BUSHING	8
55	65700900	FIXING CLIP -Valid till car Ass. Nr. 58208-	2
56	12637878	WASHER	2
57	169814	SCREW	2
58	166467	WASHER	2
59	65547500	SPACER -Valid till stock exhaustion-	6
59	69919600	SPACER -Valid after stock exhaustion of 65547500-	2
60	12644424	SHER	4
61	14163874	FLEXIBLE PIN	2
62	65998600	THICKNESS	4
63	67904000	R.H. MICRO SUPPORT BRACKET	1
63	67903900	L.H. MICRO SUPPORT BRACKET	1
64	212584	MICRO-SWITCH FOR LOCKING DOORS	2
65	68917600	SWITCH PLATE	2
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
