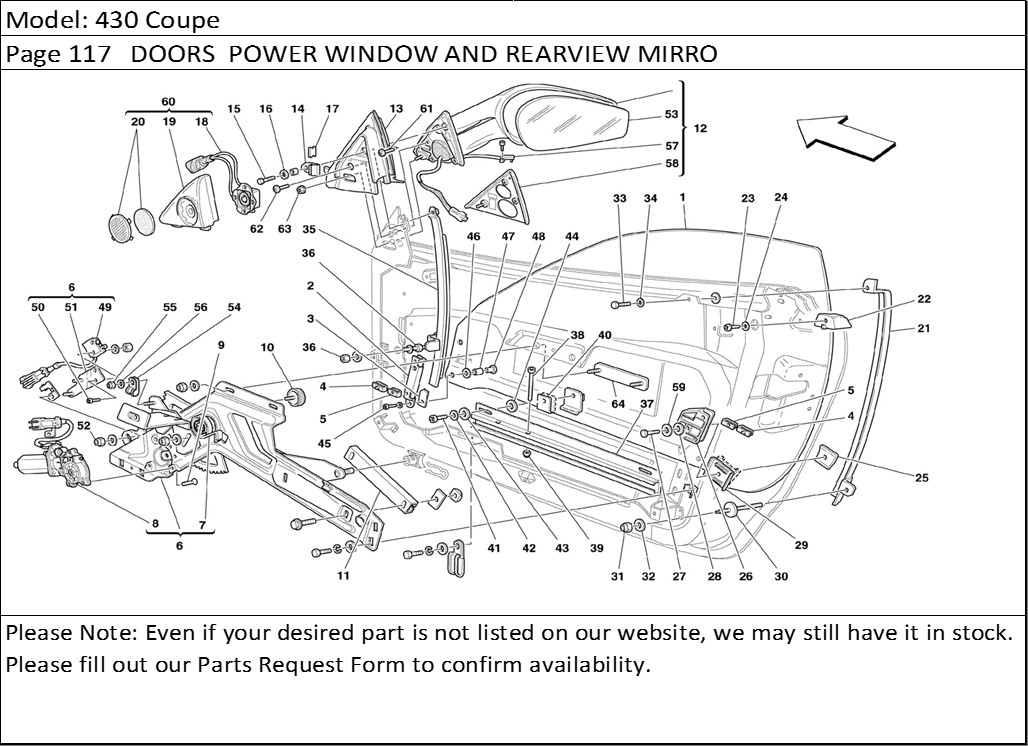

430 Coupe Page 117 DOORS POWER WINDOW AND REARVIEW MIRRO
Product Description
430 Coupe Page 117 DOORS POWER WINDOW AND REARVIEW MIRRO
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 65949200 | R.H. DOOR GLASS | 1 |
| 1 | 65949300 | L.H. DOOR GLASS | 1 |
| 2 | 63768100 | R.H. GUIDE SHOE | 1 |
| 2 | 63768200 | L.H. GUIDE SHOE | 1 |
| 3 | 63486900 | GASKET | 2 |
| 4 | 63767900 | CLIP | 8 |
| 5 | 63890100 | GASKET | 8 |
| 6 | 69919900 | COMPLETE L.H. DEVICE FOR GLASS LIFT | 1 |
| 6 | 69919900 | COMPLETE L.H. DEVICE FOR GLASS LIFT -Not as spare part- -Replaced by 69919900- | 1 |
| 6 | 69920000 | COMPLETE R.H. DEVICE FOR GLASS LIFT | 1 |
| 6 | 69920000 | COMPLETE R.H. DEVICE FOR GLASS LIFT -Not as spare part- -Replaced by 69920000- | 1 |
| 7 | 65826900 | HELICOIDAL SPRING | 2 |
| 8 | 69986900 | L.H. GLASS LIFTING MOTOR -Valid after stock exhaustion of 65819700- | 1 |
| 8 | 65819700 | L.H. GLASS LIFTING MOTOR -Valid till stock exhaustion- | 1 |
| 8 | 69986800 | R.H. GLASS LIFTING MOTOR -Valid after stock exhaustion of 65819600- | 1 |
| 8 | 65819600 | R.H. GLASS LIFTING MOTOR -Valid till stock exhaustion- | 1 |
| 9 | 15916977 | SCREW | 6 |
| 10 | 65827200 | STOP BUFFER | 2 |
| 11 | 65816700 | GUIDE | 2 |
| 12 | 81072810 | L.H. OUTER REAR VIEW MIRROR -With glossed plate- -Not for USA, CDN and GD- -Valid from Ass.Nr.74724- | 1 |
| 12 | 68736210 | L.H. OUTER REAR VIEW MIRROR -With black texturized plate- -Valid for USA and CDN- -Valid till Ass.Nr.74723- | 1 |
| 12 | 81073210 | L.H. OUTER REAR VIEW MIRROR -With glossed plate- -Valid for USA and CDN- -Valid from Ass.Nr.74724- | 1 |
| 12 | 68415810 | L.H. OUTER REAR VIEW MIRROR -With black texturized plate- -Valid for GD- -Valid till Ass. Nr.74723- | 1 |
| 12 | 81073010 | L.H. OUTER REAR VIEW MIRROR -With glossed plate- -Valid for GD- -Valid from Ass. Nr. 74724- | 1 |
| 12 | 68033910 | L.H. OUTER REAR VIEW MIRROR -With black texturized plate- -Not for USA, CDN and GD- -Valid till Ass.Nr.74723- | 1 |
| 12 | 81073110 | R.H. OUTER REAR VIEW MIRROR -With glossed plate- -Valid for GD- -Valid from Ass. Nr. 74724- | 1 |
| 12 | 68415710 | R.H. OUTER REAR VIEW MIRROR -With black texturized plate- -Valid for GD- -Valid till Ass. Nr.74723- | 1 |
| 12 | 81073310 | R.H. OUTER REAR VIEW MIRROR -With glossed plate- -Valid for USA and CDN- -Valid from Ass.Nr.74724- | 1 |
| 12 | 68736310 | R.H. OUTER REAR VIEW MIRROR -With black texturized plate- -Valid for USA and CDN- -Valid till Ass. Nr.74723- | 1 |
| 12 | 81072910 | R.H. OUTER REAR VIEW MIRROR -With glossed plate- -Not for USA, CDN and GD- -Valid from Ass.Nr.74724- | 1 |
| 12 | 68034010 | R.H. OUTER REAR VIEW MIRROR -With black texturized plate- -Not for USA, CDN and GD- -Valid till Ass.Nr.74723- | 1 |
| 13 | 65226100 | L.H. OUTER MIRROR GASKET | 1 |
| 13 | 65226000 | R.H. OUTER MIRROR GASKET | 1 |
| 14 | 65065700 | CLIP BODY | 2 |
| 15 | 10902224 | SCREW | 2 |
| 16 | 12643778 | WASHER | 2 |
| 17 | 14184374 | CLIP | 2 |
| 18 | - | LOUD SPEAKER TWEETER | 2 |
| 19 | - | R.H. INNER PLATE | 1 |
| 19 | - | L.H. INNER PLATE | 1 |
| 20 | - | PROTECTION GRILL | 2 |
| 21 | 65062100 | R.H. REAR GLASS GUIDE | 1 |
| 21 | 65062200 | L.H. REAR GLASS GUIDE | 1 |
| 22 | 65310700 | R.H. SMALL BLOCK | 1 |
| 22 | 65310800 | L.H. SMALL BLOCK | 1 |
| 23 | 13274014 | SCREW | 2 |
| 24 | 12638124 | WASHER | 2 |
| 25 | 65997700 | L.H. PLATE | 1 |
| 25 | 65997500 | R.H. PLATE | 1 |
| 26 | 63853600 | R.H. MOVING GUIDE | 1 |
| 26 | 63853700 | L.H. MOVING GUIDE | 1 |
| 27 | 10903024 | SCREW | 2 |
| 28 | 12644424 | WASHER | 2 |
| 29 | 63168800 | PRELOADING REGULATOR | 2 |
| 30 | 64854600 | ADJUSTMENT PIN | 2 |
| 31 | 102741 | NUT | 2 |
| 32 | 12643778 | WASHER | 2 |
| 33 | 13836721 | SCREW | 2 |
| 34 | 12643724 | WASHER | 2 |
| 35 | 65061900 | R.H. FRONT GLASS GUIDE | 1 |
| 35 | 65062000 | L.H. FRONT GLASS GUIDE | 1 |
| 36 | 14039714 | NUT | 4 |
| 37 | 65828200 | R.H. SLIDING GUIDE | 1 |
| 37 | 65828300 | L.H. SLIDING GUIDE | 1 |
| 38 | 14303724 | SCREW | 4 |
| 39 | 62790300 | NUT | 4 |
| 40 | 65807300 | PLATE GASKET | 4 |
| 41 | 14305424 | SCREW | 4 |
| 42 | 12601279 | WASHER | 4 |
| 43 | 12643724 | WASHER | 4 |
| 44 | 12647624 | WASHER | 4 |
| 45 | 13297377 | SCREW | 4 |
| 46 | 62798000 | WASHER | 4 |
| 47 | 62932800 | SPACER | 4 |
| 48 | 62932900 | BUSHING | 4 |
| 49 | 168617 | MICRO-SWITCH | 2 |
| 50 | 15687975 | SCREW | 4 |
| 51 | 65907500 | L.H. MOBILE BRACKET | 1 |
| 51 | 65907400 | R.H. MOBILE BRACKET | 1 |
| 52 | 14084011 | NUT | 4 |
| 53 | 68981600 | R.H. OUTER REAR VIEW MIRROR GLASS -Not for USA and CDN- | 1 |
| 53 | 69416200 | R.H. OUTER REAR VIEW MIRROR GLASS -Valid for USA and CDN- | 1 |
| 53 | 68981700 | L.H. OUTER REAR VIEW MIRROR GLASS -Not for USA and CDN- | 1 |
| 53 | 69416300 | L.H. OUTER REAR VIEW MIRROR GLASS -Valid for USA and CDN- | 1 |
| 53 | 69416200/3 | CONVEX MIRROR PAIR | 1 |
| 54 | 10418601 | BRACKET | 2 |
| 55 | 102741 | NUT | 2 |
| 56 | 12644424 | WASHER | 2 |
| 57 | 65889400 | OUTSIDE TEMPERATURE FEELER | 1 |
| 58 | 81235900 | R.H. REAR VIEW OUTER PLATE -Glossed- -Valid for GD- -Valid from Ass. Nr. 74724- | 1 |
| 58 | 81235500 | R.H. REAR VIEW OUTER PLATE -Black texturized- -Valid for GD- -Valid till Ass. Nr. 74723- | 1 |
| 58 | 81235700 | R.H. REAR VIEW OUTER PLATE -Glossed- -Not for GD- -Valid from Ass. Nr. 74724- | 1 |
| 58 | 69741900 | R.H. REAR VIEW OUTER PLATE -Black texturized- -Not for GD- -Valid till Ass. Nr. 74723- | 1 |
| 58 | 81235800 | L.H. REAR VIEW OUTER PLATE -Glossed- -Valid for GD- -Valid from Ass. Nr. 74724- | 1 |
| 58 | 81235400 | L.H. REAR VIEW OUTER PLATE -Black texturized- -Valid for GD- -Valid till Ass. Nr. 74723- | 1 |
| 58 | 81235600 | L.H. REAR VIEW OUTER PLATE -Glossed- -Not for GD- -Valid from Ass. Nr. 74724- | 1 |
| 58 | 69742000 | L.H. REAR VIEW OUTER PLATE -Black texturized- -Not for GD- -Valid till Ass. Nr. 74723- | 1 |
| 59 | 127494 | WASHER | 2 |
| 60 | 80482000 | COMPLETE L.H. INNER PLATE -Valid for powered HI FI Bose system- | 1 |
| 60 | 69835500 | COMPLETE L.H. INNER PLATE -Valid for cars with radio amplifier- -Valid after stock exhaustion of 66694300- -Valid from Ass. Nr. 68691- | 1 |
| 60 | 66694300 | COMPLETE L.H. INNER PLATE -Valid for cars with radio amplifier- -Valid till stock exhaustion- -Valid | 1 |
| 60 | 69835300 | COMPLETE L.H. INNER PLATE -Not for cars with radio amplifier- -Valid after stock exhaustion of 66799800- -Valid from Ass. Nr. 68691- | 1 |
| 60 | 66799800 | COMPLETE L.H. INNER PLATE -Not for cars with radio amplifier- -Valid till stock exhaustion- -Valid | 1 |
| 60 | 80481900 | COMPLETE R.H. INNER PLATE -Valid for powered HI FI Bose system- | 1 |
| 60 | 69835600 | COMPLETE R.H. INNER PLATE -Valid for cars with radio amplifier- -Valid after stock exhaustion of 66694200- -Valid from Ass. Nr. 68691- | 1 |
| 60 | 66694200 | COMPLETE R.H. INNER PLATE -Valid for cars with radio amplifier- -Valid till stock exhaustion- -Valid | 1 |
| 60 | 69835400 | COMPLETE R.H. INNER PLATE -Not for cars with radio amplifier- -Valid after stock exhaustion of 66799700- -Valid from Ass. Nr. 68691- | 1 |
| 60 | 69835400 | COMPLETE R.H. INNER PLATE -Not for cars with radio amplifier- -Valid till stock exhaustion- -Valid till Ass. Nr. 68690- | 1 |
| 61 | 65713200 | SCREW | 2 |
| 62 | 65366700 | SCREW | 2 |
| 63 | 13831801 | NUT | 4 |
| 64 | 66075200 | BRACKET | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
