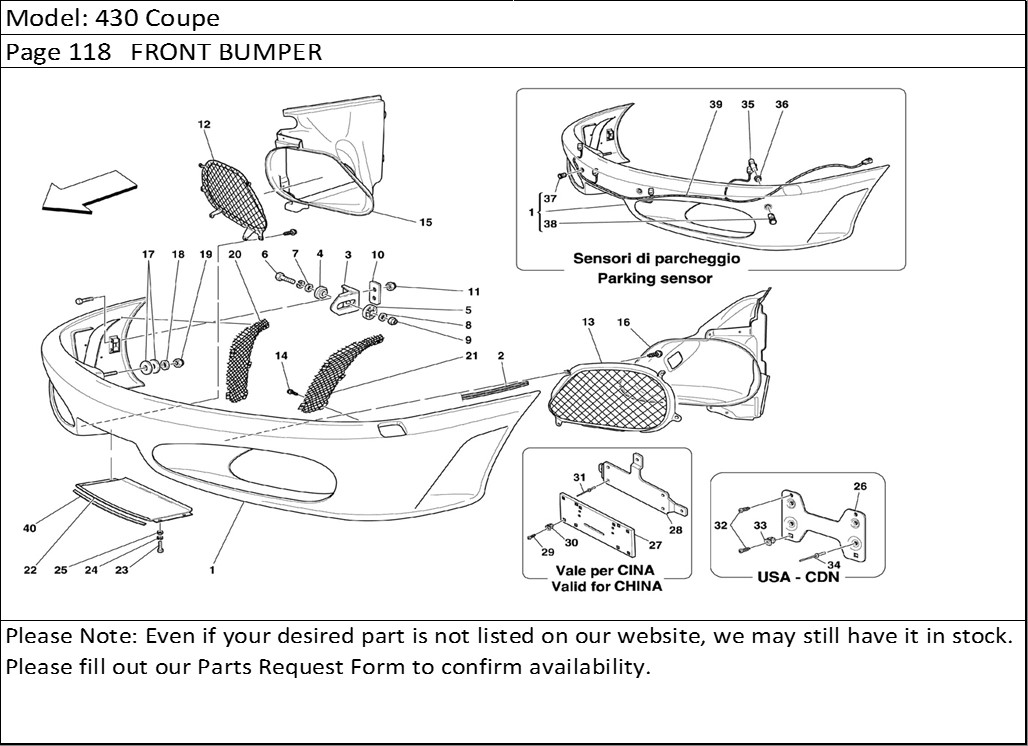

430 Coupe Page 118 FRONT BUMPER
Product Description
430 Coupe Page 118 FRONT BUMPER
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 67768910 | FRONT BUMPER -Not for USA and CDN- | 1 |
| 1 | 69449710 | FRONT BUMPER -Not for USA and CDN- -Parking sensors- -Optional- | 1 |
| 1 | 68637110 | FRONT BUMPER -Valid for USA and CDN- | 1 |
| 1 | 69450210 | FRONT BUMPER -Valid for USA and CDN- -Parking sensors- -Optional- | 1 |
| 2 | 60547700 | RUBBER PROFILE | 1 |
| 3 | 68148300 | BUMPER LATERAL FIXING BRACKET | 2 |
| 4 | 62128200 | EXTERNAL SMALL BLOCK | 2 |
| 5 | 62128300 | INTERNAL SMALL BLOCK | 2 |
| 6 | 11307021 | SCREW | 2 |
| 7 | 12646801 | WASHER | 4 |
| 8 | 12601474 | WASHER | 2 |
| 9 | 104114 | NUT | 2 |
| 10 | 62126600 | PLATE | 2 |
| 11 | 104030 | NUT | 4 |
| 12 | 68252900 | BUMPER R.H. GRILL | 1 |
| 13 | 68253100 | L.H. FRONT BUMPER GRILL | 1 |
| 14 | 15783104 | SCREW | 10 |
| 15 | 67909800 | R.H. AIR INLET | 1 |
| 16 | 67909900 | L.H. AIR INLET | 1 |
| 17 | 65921200 | SPACER -Possible fitting- | 4 |
| 18 | 12646801 | WASHER | 4 |
| 19 | 104114 | NUT | 4 |
| 20 | 68087100 | R.H. SIDE GRILL | 1 |
| 21 | 68087200 | L.H. SIDE GRILL | 1 |
| 22 | 80866310 | FRONT SPOILER -Valid till stock exhaustion- | 1 |
| 22 | 80866310 | FRONT SPOILER -Valid after stock exhaustion of 68084110- | 1 |
| 22 | 68614900 | FRONT SPOILER -Carbon version- -Optional- | 1 |
| 23 | 10902424 | SCREW | 4 |
| 24 | 12644424 | WASHER | 4 |
| 25 | 12601274 | WASHER | 4 |
| 26 | 65886300 | FRONT PLATE FRAME -Valid for USA and CDN- | 1 |
| 27 | 68304700 | NUMBER PLATE SUPPORT -Valid for China- | 1 |
| 28 | 69302500 | BRACKET FOR NUMBER PLATE SUPPORT -Valid for China- | 1 |
| 29 | 15687275 | SCREW -Valid for China- | 4 |
| 30 | 14215480 | BLOCK -Valid for China- | 4 |
| 31 | 14641793 | RIVET -Valid for China- | 3 |
| 32 | 16084370 | SCREW -Valid for USA and CDN- | 4 |
| 33 | 14201980 | BLOCK -Valid for USA and CDN- | 2 |
| 34 | 14295696 | RIVET -Valid for USA and CDN- | 4 |
| 35 | 214561 | PARKING SENSOR -Parking sensors- -Optional- | 4 |
| 36 | 223516 | GASKET -Parking sensors- -Optional- | 4 |
| 37 | 69880100 | CENTRAL SLEEVE -Parking sensors- -Optional- | 2 |
| 38 | 69318100 | LATERAL SLEEVE -Parking sensors- -Optional- | 2 |
| 39 | 222091 | BUMPER CABLE WITH PARKING SENSOR -Parking sensors- -Optional- | 1 |
| 40 | 69489400 | PROTECTION | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
