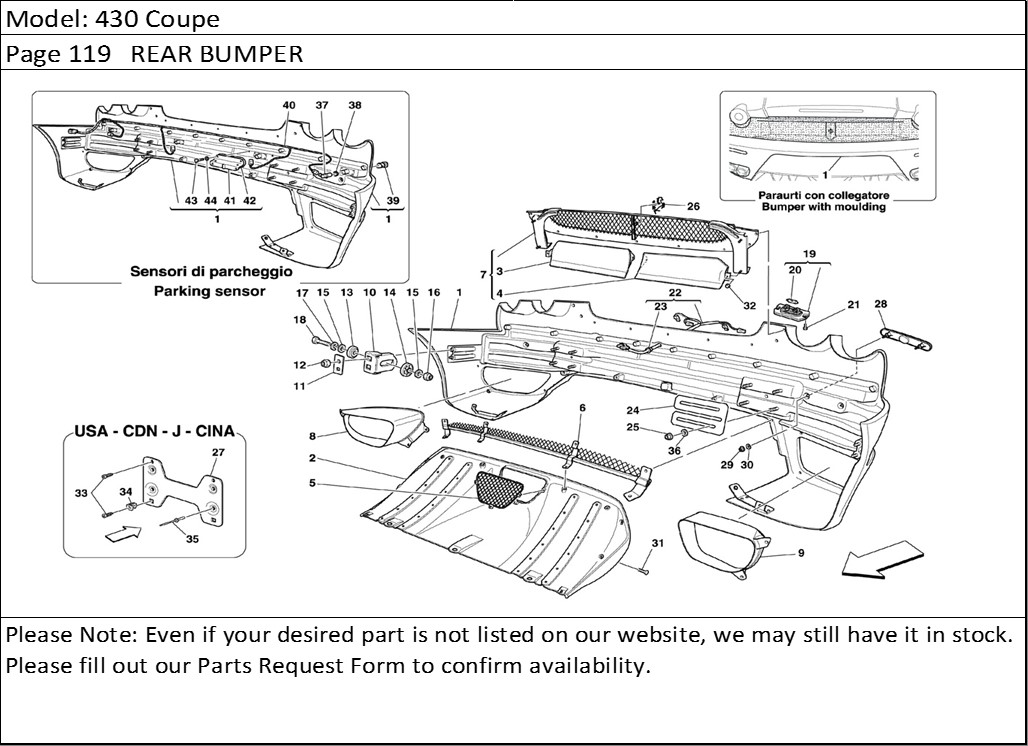

430 Coupe Page 119 REAR BUMPER
Product Description
430 Coupe Page 119 REAR BUMPER
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 67771410 | REAR BUMPER -Plastic rear covering- -Not for USA and CDN- | 1 |
| 1 | 69452510 | REAR BUMPER -With moulding- -Valid for USA and CDN- -Parking sensors- -Optional- | 1 |
| 1 | 68590510 | REAR BUMPER -With moulding- -Valid for USA and CDN- -Optional- | 1 |
| 1 | 69451510 | REAR BUMPER -With moulding- -Not for USA and CDN- -Parking sensors- -Optional- | 1 |
| 1 | 68507810 | REAR BUMPER -With moulding- -Not for USA and CDN- -Optional- | 1 |
| 1 | 69451910 | REAR BUMPER -Plastic rear covering- -Valid for USA and CDN- -Parking sensors- -Optional- | 1 |
| 1 | 68590210 | REAR BUMPER -Plastic rear covering- -Valid for USA and CDN- | 1 |
| 1 | 69451010 | REAR BUMPER -Plastic rear covering- -Not for USA and CDN- -Parking sensors- -Optional- | 1 |
| 2 | 67772100 | ER UPHOLSTERY FOR REAR BUMPER -Grey- | 1 |
| 2 | 69140500 | ER UPHOLSTERY FOR REAR BUMPER -Black- | 1 |
| 3 | 68854700 | R.H. BRACKET | 1 |
| 4 | 68854800 | L.H. BRACKET | 1 |
| 5 | 67772700 | CENTER GRILLE | 1 |
| 6 | 68099100 | LOWER GRILL | 1 |
| 7 | 68099000 | UPPER GRILL | 1 |
| 8 | 68164700 | R.H. PROFILE FOR TAILS | 1 |
| 9 | 68164800 | L.H. PROFILE FOR TAILS | 1 |
| 10 | 68148300 | BUMPER LATERAL FIXING BRACKET | 2 |
| 11 | 62126600 | PLATE | 2 |
| 12 | 104030 | NUT | 4 |
| 13 | 62128200 | EXTERNAL SMALL BLOCK | 2 |
| 14 | 62128300 | INTERNAL SMALL BLOCK | 2 |
| 15 | 12646801 | WASHER | 4 |
| 16 | 104114 | NUT | 2 |
| 17 | 12601474 | WASHER | 2 |
| 18 | 11307021 | SCREW | 2 |
| 19 | 186180 | NUMBER PLATE LIGHT | 2 |
| 20 | 10857790 | BULB | 1 |
| 21 | 15901570 | SCREW | 4 |
| 22 | 182985 | CABLES FOR NUMBER PLATE LIGHTS | 1 |
| 23 | 10399280 | CABLE GROMMET | 2 |
| 24 | 68355700 | SPACER -Not as spare part- -Replaced by 69742100- | 4 |
| 24 | 69047600 | SPACER -Possible fitting- -Not as spare part- -Replaced by 69742100- | 4 |
| 24 | 69742100 | SPACER | 2 |
| 24 | 69047700 | SPACER -Possible fitting- | 8 |
| 25 | 12164710 | NUT -Not as spare part now- -Replaced by 104114- | 8 |
| 25 | 104114 | NUT | 8 |
| 26 | 60032109 | CAVALLINO RAMPANTE | 1 |
| 27 | 65886300 | REAR PLATE FRAME -Valid for USA and CDN- | 1 |
| 27 | 65887600 | REAR PLATE FRAME -Valid for J- | 1 |
| 27 | 69277100 | REAR PLATE FRAME -Valid for China- | 1 |
| 28 | 67091000 | CATADIOPTRIC | 2 |
| 29 | 12578011 | NUT | 4 |
| 30 | 13577701 | WASHER | 4 |
| 31 | 62797600 | SCREW -Black- | 6 |
| 31 | 62797600 | SCREW -Grey- -Not as spare part- -Replaced by 62797600- | 6 |
| 32 | 14042177 | NUT | 2 |
| 33 | 16084370 | SCREW -Valid for USA and CDN- | 4 |
| 34 | 14201980 | BLOCK -Valid for USA and CDN- | 2 |
| 35 | 14295696 | RIVET -Valid for USA and CDN- | 4 |
| 36 | 12644301 | WASHER | 8 |
| 37 | 214561 | PARKING SENSOR -Parking sensors- -Optional- | 4 |
| 38 | 223516 | GASKET -Parking sensors- -Optional- | 4 |
| 39 | 69318100 | SLEEVE -Parking sensors- -Optional- | 4 |
| 40 | 221270 | BUMPER CABLE WITH PARKING SENSOR -Parking sensors- -Optional- | 1 |
| 41 | 69329100 | PLUG -Parking sensors- -Optional- | 2 |
| 42 | 69449400 | GASKET -Parking sensors- -Optional- | 2 |
| 43 | 10444624 | SCREW -Parking sensors- -Optional- | 12 |
| 44 | 13579004 | WASHER -Parking sensors- -Optional- | 12 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
